Terminal Blocks offer variety of accessories.

AutomationDirect.com    Cumming, GA 30040-9905
May 22, 2013 Rated up to 175 A, Konnect-It™ single-level terminal blocks accept wiring sizes from 26 AWG to 2/0 AWG and have 100 kA SCCR rating, while double-level models come in 20 and 30 A versions. Triple-level terminal blocks handle up to 24 A and accept wiring from 24 AWG to 12 AWG. Available with screw-down or snap-on clamping ground connections, grounding terminal blocks feature corrosion-free connection points. Miniature terminal blocks, offered in 20 and 30 A capacities, mount on 15 mm DIN rails.

LED Message Displays withstand washdown conditions.

AutomationDirect.com    Cumming, GA 30040-9905
May 07, 2013 Featuring extruded aluminum housings with polycarbonate end caps and smoked polycarbonate lens cover, ViewMarq™ Displays help communicate information in industrial environments. Units can display preformatted messages or factory floor data, and can be controlled from PLC or any device that uses supported protocols. Available in 6 models with tri-color LEDs and viewing angle of 140°, displays support embedded string and numeric variables, as well as blinking text and scrolling messages.

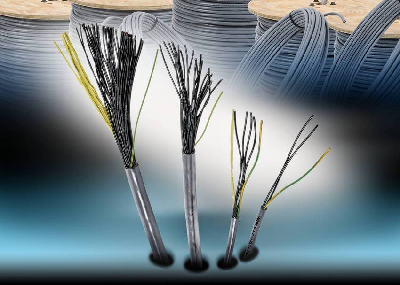

Flexible Control Cables feature 3 to 41 unshielded conductors.

AutomationDirect.com    Cumming, GA 30040-9905
Apr 23, 2013 Available in sizes from 18–10 AWG, Flexible Multiconductor Control Cables are fitted with premium grade PVC outer jacket and are available in 100, 250, 500, and 1,000 ft reels. Individual stranded copper conductors feature black PVC/nylon insulation and are marked with identification numbers. Resistant to sunlight, oil, and moisture penetration, cables are suitable for wet and dry locations and for indoor and outdoor applications. Units are UL and CSA-approved as well as RoHS compliant.

Precision Servo Gearboxes feature thread-in mounting style.

AutomationDirect.com    Cumming, GA 30040-9905
Feb 12, 2013 Offered in concentric shaft design with max 5 arc-min backlash rating, SureGear PGA Series is suitable for gantries, injection-molding machines, and conveyors. In-line planetary gear reducers are available in 4 gear ratios of 5, 10, 15, and 25:1. Mountable in any direction, maintenance-free units include helical-cut planetary gears for quiet operation and minimized vibration, and uncaged needle roller bearings that provide high rigidity and torque.

Temperature Transmitters support head- and DIN rail-mounting.

AutomationDirect.com    Cumming, GA 30040-9905
Jan 07, 2013 Available for thermocouple Types J, K, or T and 3-wire RTD type Pt100, ProSense non-programmable transmitters provide linearized 2-wire 4–20 mA current loop output. Programmable models, compatible with variety of thermocouple and RTD types, feature linear resistance of 10–400 Ω and 10–2,000 Ω. Head-mount models are powered by 8–35 Vdc, while DIN rail-mount models are powered by 12-35 Vdc. Both are reverse polarity protected and use XT-SOFT PC software for configuration.

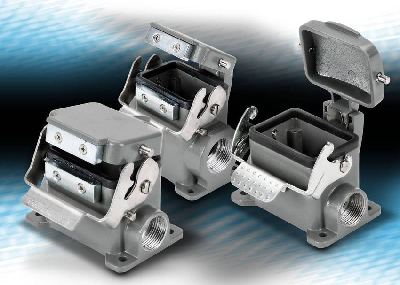

Multi-Wire Connectors withstand industrial environments.

AutomationDirect.com    Cumming, GA 30040-9905
Jan 04, 2013 Available in additional frame sizes of 10A, 16A, and 32B with heavy-duty metal or thermoplastic housings, ZIPport™ Multi-Wire Connectors maintain electrical connections while providing protection against dirt, moisture, and mechanical stress common in industrial environments. Connector hoods are available with top entry and side entry Pg threaded cable passages. Connector accessories include IP66 and IP68 cable glands, Pg to NPT adapters, and blanking plugs.

Hazardous Location Controls offer sealed or unsealed covers.

AutomationDirect.com    Cumming, GA 30040-9905
Dec 18, 2012 Suitable for facilities where flammable gases/vapors, combustible dusts, or ignitable fibers are present, KILLARK explosion-proof controls are available in single/double pushbutton, maintained pushbutton, keyed/non-keyed selector switch, single/double pilot light, and pilot light/pushbutton styles. Factory-sealed cover assemblies feature sealing plate between arcing device and junction box, while unsealed assemblies have cast copper-free aluminum alloy bodies and covers with open space between gangs.

Basic CPU and Remote Modules added to controller line.

AutomationDirect.com    Cumming, GA 30040-9905
Dec 17, 2012 Programmed using Productivity Suite software, Productivity3000 P3-530 Basic CPU features 5 integrated communications ports, including Ethernet for programming, monitoring, and networking; USB port for data logging; USB I/O port for up to 4 local expansion bases; and RS-232/RS-485 ports for ASCII and Modbus. Designed to connect to CPU module's Ethernet port for remote I/O expansion, P3-RX Remote Slave Module includes Ethernet port, USB I/O port, and RS-232/RS-485 ports.

Pneumatic Air Cylinders feature stainless steel construction.

AutomationDirect.com    Cumming, GA 30040-9905
Dec 12, 2012 Suitable for wash down applications, NITRA® F-Series is constructed of corrosion-resistant 300 series stainless steel with Teflon-based rod and pivot bushings, and urethane rod wiper that keeps wash down solutions out of cylinder. Non-repairable, round body units have 250 psi operating pressure and are interchangeable with other brands. Available with bore sizes from ¾–2 in., double acting cylinders feature stroke lengths from ½–18 in. and offer nose, rear pivot, and double-end mounting options.

Dual Rod Guided Pneumatic Air Cylinders operate up to 142 psi.

AutomationDirect.com    Cumming, GA 30040-9905
Sep 25, 2012 Interchangeable with other brands of cylinders, NITRA™ E-Series offers 8 bore sizes from 12–63 mm. Depending on bore size, available stroke lengths range from 10–250 mm. All sizes feature double-acting cylinders constructed with extruded aluminum housing and switch mounting tracks, dual chrome-plated stainless steel guide rods, and bronze bushings. Suitable applications include those which require precise alignment or have large side loads.
