V Port Modulating Ball Valves achieve precision process control.

Assured Automation    Clark, NJ 07066
Sep 21, 2012 Designed for pressure, temperature, flow, and level control, V Series features bodies of carbon or stainless steel with NPT, Socket Weld, Tri-Clamp, and 150 or 300 lb Flanged end connections. Sizes range from ½–8 in., and control signal options include 4–20 mA and 3–15 psi. Characterized to meet custom flow requirements, valves also feature rotary stem that makes series suited for throttling applications; throttling component is constructed from solid stainless steel ball.

PVC Ball Valves feature multifunctional locking handle.

Assured Automation    Clark, NJ 07066
Apr 30, 2012 Available in ½-4 in. sizes, P2 Series 2-Way True Union Ball Valves include DUAL BLOCK® system, which locks union nuts, preventing back-off due to vibration or thermal cycling. Deep grooves, thick O-rings, and cushioned PFA seats contribute to optimized seals at pressures up to 232 psi, while integral mounting flange and support bracketing combine to facilitate actuation and anchoring. Offered in PVC or CPVC with NPT or glue socket connections, valves use electric, pneumatic, or manual actuators.

Butterfly Valves come in wafer and lug styles.

Assured Automation    Clark, NJ 07066
Nov 29, 2010 Available in sizes 2-12 with pressure rating up to 285 psi for 150 class and 740 psi for 300 class, HP Series offers Class VI shut-off and advanced seat design, which provides bi-directional interference and pressure assisted seal. Body comes in carbon or stainless steel with Wafer or Lugged flanged end connections. To achieve maximum seat and seal life, machined position stops on body locate disc in seat. Valves are suited for chemical processing, pulp and paper mills, and HVAC applications.

Control Boxes operate actuators remotely.

Assured Automation    Clark, NJ 07066
Jan 30, 2009 With CB Series, users can operate electric or pneumatic actuators from remote location. Units are available with lamp indication for feedback confirmation of actuator/valve position. Housed in chemical-resistant, weatherproof enclosure, control boxes feature double-insulated, black plastic switches with contact rating of 10 A at 125/250 Vac. Boxes can also provide local indication for level sensing devices, as well as on/off control, eliminating full size control panel and terminal blocks.

Coaxial Valve handles high cycle applications.

Assured Automation    Clark, NJ 07066
Feb 12, 2008 Combining process valve and actuator in single integrated unit with only 1 moving part, VAX valves are available in 2- or 3-way configurations with pressure ratings up to 600 psi. Units have 0.25 msec shut-off speed in either direction and pressure balanced design with spring return functions regardless of system pressure or pressure differential on either side. Valves are available in electric and pneumatic as well as direct-acting or air-actuated versions.

Butterfly Valves feature direct mount actuators.

Assured Automation    Clark, NJ 07066
Aug 02, 2007 Offered in wafer, lug, and flanged styles, ST Series Resilient Seated Butterfly Valves are available in sizes from 2-12 in. with pressure rating up to 225 psi and 14-24 in. with rating up to 160 psi. Units have one-piece, ductile iron body with fusion-bonded epoxy coating for corrosion resistance. Self-centering disc and stem eliminate taper pins or disc screws, while spherically machined and hand polished disc edge provides bubble-tight shut-off at minimum torque.

Flanged Ball Valves feature fire-tested design.

Assured Automation    Clark, NJ 07066
Mar 20, 2007 Offered in full- or standard-port models, 4000 Series comes with carbon steel or stainless steel body, and 316 SS ball and stem. Units feature ISO 5211 direct mounting with adjustable packing, and can be equipped with manual handle or direct mount pneumatic or electric actuator. Fire-tested to API607 4th Edition and ISO 10497, valves meet stringent requirements of refinery, petrochemical, chemical process, process control, water and waste, and pipeline applications.

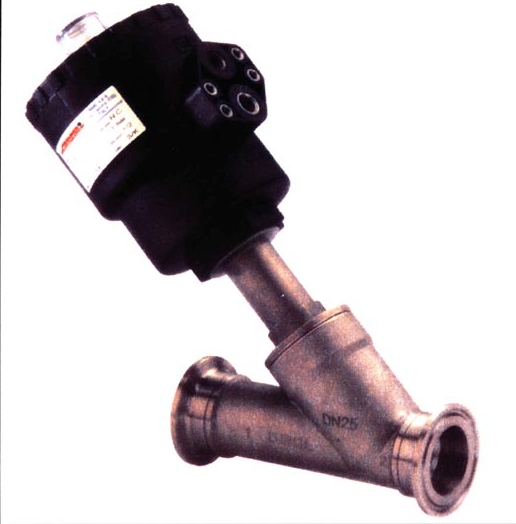

Angle Valve handles liquids, gases, and steam.

Assured Automation    Clark, NJ 07066
May 31, 2002 ARES pneumatically actuated on/off valve works in maximum pressure of 232 psig for most media and 150 psig in steam applications. It is available with clamp, NPT, and weld end connections from 3/8 to 2 in. Actuator has NAMUR style mounting pad, visual position indicator, and is available in spring-to-close, spring-to-open, and double acting configurations. Accessories include limit switches, solenoid valves, manual override devices, and stroke limiters.
