HDI Flex Circuits offer microvia capability.

Minco    Minneapolis, MN 55432
Apr 15, 2010 Minimizing layer count and circuit size, High Density Interconnect Flexible Circuits feature blind and buried microvia capability down to 75 microns and trace and space capabilities down to 50 microns. Minimum core dielectric thickness is 25 microns and minimum copper thickness is 9 microns. Copper via fill is available.

Solid-State HVAC Sensor eliminates need for Freeze Stat.

Minco    Minneapolis, MN 55432
Aug 03, 2009 Designed to protect chillers in air handling equipment used by commercial buildings, Chill-Out(TM) Combination Sensor replaces Freeze Stat but has 2 sensors: one low-temp cut-out sensor and one independent averaging-temp sensor. Dual-sensor package delivers accurate measurements and eliminates need to install separate averaging sensor. Mounted in any direction, product offers low-temp sensitivity within 12 in. segment and has no capillary tubes to break, leak, or kink.

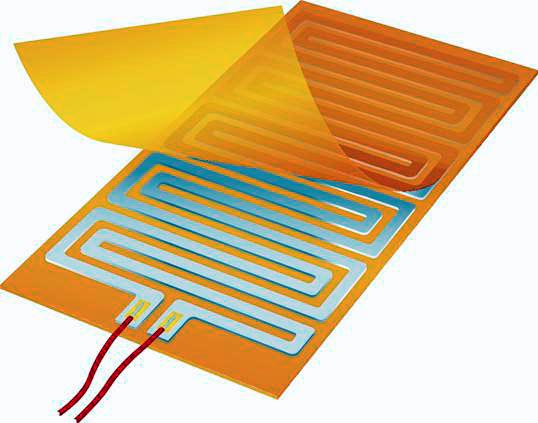

Flexible Heaters wrap and bend while providing uniform heat.

Minco    Minneapolis, MN 55432
Aug 13, 2008 Sandwiched between layers of flexible insulation, etched foil or wire-wound heater elements can have uniform or profiled heat patterns. Heaters can integrate temperature sensors, flex circuits, instruments, or other electronics to provide total heating solution. End-users can choose from various standard configurations or request custom heating solution. Available types include Polyimide (Kapton®) Thermofoil(TM), Silicone Rubber, Thermal-Clear(TM), Mica, and All-Polyimide Heaters.

Clear Heaters deliver heat while transmitting light.

Minco    Minneapolis, MN 55432
Jun 27, 2008 Featuring micro-thin, etched foil or wire-wound elements sandwiched in between optical-grade polyester sheets, Thermal-Clear(TM) Heaters provide uniform or profiled heat patterns without blocking light. Units can integrate temperature sensors, flex circuits, controllers, or other electronics to provide total heating solution. Available in sizes up to 280 x 560 mm, heaters are RoHS-compliant and suitable for heating LCDs, cockpit displays, outdoor card readers, and portable military radios.

Design Kit helps integrate flex circuits into application.

Minco    Minneapolis, MN 55432
Dec 04, 2006 Flex Circuit Design Kit offers tools and information to assist users from inception to physical mock-up. Start-up guide provides details of flex circuit process including design guidelines, specifications, and manufacturing, along with illustrations and descriptive call-outs, plus instructions on how to build flex circuit mock-up. Kit also includes 2 sheets of .010 in. polyester film to make mock-up, and sample case containing over 25 actual pieces of raw material and finished flex circuits.

Transmitter Assembly suits hazardous locations.

Minco    Minneapolis, MN 55432
Jun 16, 2006 Available in explosion-proof and intrinsically safe models, Hazardous Location Humidity Transmitter Assembly adheres to FM and CFM safety regulations. It utilizes thin film capacitive sensor in which integral transmitter converts sensor signal to 4-20 mA DC current, which changes proportionally from 4 mA at 0% RH to 20 mA at 100% RH. Assembly is suited for HVAC systems, food storage, warehouses, petrochemical refinery plants, and pharmaceutical industry.

Temperature Monitor safeguards critical equipment.

Minco    Minneapolis, MN 55432
May 18, 2006 Providing over-temperature and under-temperature machinery protection, CT224 12-channel Temperature Monitor offers RS485/RS232 interface and Windows-compatible software for system configuration and data logging. It accepts RTD and thermocouple inputs and can sense 4-20 mA signals. Users can mix and match bearing and apparatus sensors, and monitor is also usable as 4-channel on/off controller while also offering power loss protection.

Sensing System measures and controls temperature.

Minco    Minneapolis, MN 55432
May 10, 2006 Designed for HVAC and building automation markets, Thermal Vial(TM) provides accurate measurement and documentation of freezing, process, and storage methodology. It builds on existing sensors with additional options such as vial size, multiple thermowell configurations, loop-powered indication, and 3 levels of calibration accuracy. For real-time verification, Thermal Vial Sensor encompasses wire-wound element capable of -200°C operation.

Relative Humidity Sensor delivers ±1% system accuracy.

Minco    Minneapolis, MN 55432
Apr 25, 2006 Comprised of IC with stable polymer element and platinum RTD used for temperature compensation, sensor is resistant to airborne contaminant and chemicals. Sintered stainless steel filter protects sensor and resists effects of condensation. Offered in wall/duct/OSA mounting configurations, product is specified over -10 to +150°F and -10 to +185°F non-condensing temperature ranges. It delivers 2-point field calibration and NIST traceable calibrations.

Combination Temperature Sensor can be mounted at any angle.

Minco    Minneapolis, MN 55432
Jan 11, 2006 Designed for HVAC and building automation industries, Chill-Out(TM) Combination Sensor integrates low-temperature cut-out sensor (freeze stat) and averaging resistance temperature sensor in one self-contained unit. This air handling system sensor features solid-state design, with relay integral to tubing. Available in 3/8 in. tubing in bendable aluminum and ultra-flex brass armor, product is sensitive to low temperatures in any direction up to 6 in.
