Shaker Dust Collectors safely handle combustible dusts.

United Air Specialists Inc.    Cincinnati, OH 45242 2832
Jun 15, 2012 Featuring self-contained design, SDC Series collects airborne pollutants at source, helping to ensure safety of students and employees while achieving OSHA and NFPA regulatory compliance for combustible and explosive dusts. High-frequency, oscillating mechanism shakes filter to dislodge dust cake, eliminating need for compressed air. Capable of removing up to 99% of dust by weight, systems have modular cabinet design that allows for field expandability to increase capacity as needed.

Oval Replacement Cartridge Filters utilize nanofiber technology.

United Air Specialists Inc.    Cincinnati, OH 45242 2832
Aug 22, 2011 Rated at MERV 15, Protura® Nanofiber Filters promote healthy work environment and clean workplace air by capturing submicron particles and reducing dust collector emissions. Oval replacement cartridge filters promote operational efficiency by lowering pressure drop over life of filter while also enhancing cleaning efficiency with fewer pulses and less compressed air usage. Surface-loading technology enhances dust cake release, lending to extended filter life.

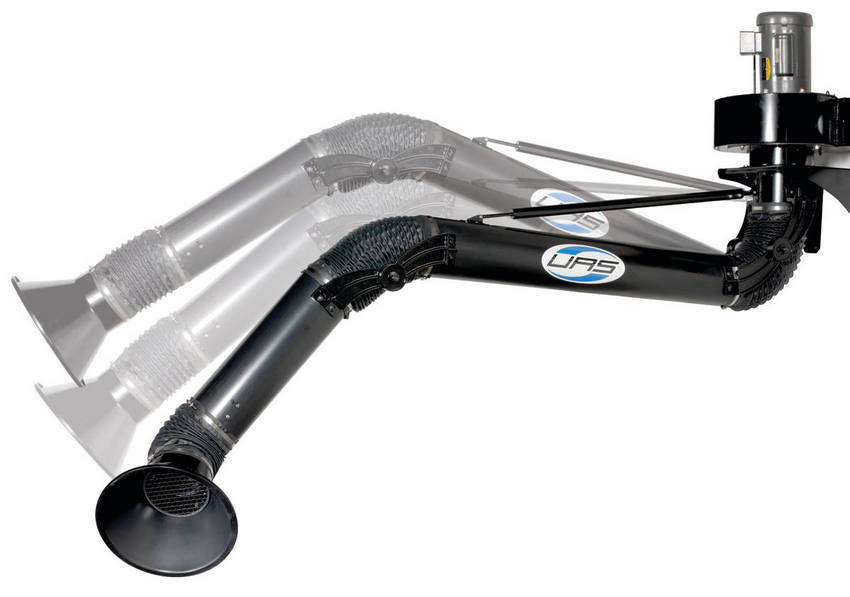

Extraction Arm offers optimal suction and minimal resistance.

United Air Specialists Inc.    Cincinnati, OH 45242 2832
Aug 20, 2010 Used for source capture of industrial dust and fumes, XA Extraction Arm features obstruction-free internal design and bell-mouth hood that optimize suction. Positioning capability enables optimal placement at source of generation, reducing amount of contaminants entering operator's breathing zone. Able to be mounted on wall as well used with portable systems, arm is available in 7, 10, and 12 ft lengths with choice of 6 or 8 in dia. Various accessories are available.

Compact Mist Collector measures 27 x 21 x 20 in.

United Air Specialists Inc.    Cincinnati, OH 45242 2832
Apr 06, 2009 Installed directly on machining center or suspended from ceiling, Smog-Hog MSH mist collector utilizes variable speed drive motor, producing air volume up to 500 cfm, that enables users to adjust airflow and overall energy use as needed. Heavy-duty mist-stop coalescing prefilter and metal mesh after-filter provide maximum contaminant collection, and large capacity ESP collection cell minimizes filter changes. System's sound levels are less than 72 dbA.

Differential Pressure Gauges suit cartridge dust collectors.

United Air Specialists Inc.    Cincinnati, OH 45242 2832
Sep 16, 2008 Able to show positive, negative, and differential measurement, Digital Pressure Control (DPC) gauge is designed for on-demand cleaning, while Digital Pressure Monitor (DPM) gauge is used only for continuous pulse cleaning. ETL and CE approved units feature compact enclosure, digital LED pressure readouts from 0-8 in. WC, multi-colored LED arc readout, 4 functional programming buttons, NEMA 4-rated pulse control panel, and U.L. recognized pulse timer board.

Nanofiltration System forms nanoscopic mesh on filters.

United Air Specialists Inc.    Cincinnati, OH 45242 2832
Aug 20, 2007 Advanced Nanofiber Filtration Technology for dust collection cartridge filters enables cartridge filters to last longer than cellulose and commodity filters. Synthetic nanofiber treatment traps dust particles on filter surfaces for removal during cleaning and serves to lower pressure drop over filter's life. Nanofibers measure 70-150 nm and are certified to collect submicronic dust particles at MERV 15 efficiency levels.

Dust Collector offers downdraft velocity of up to 100 fpm.

United Air Specialists Inc.    Cincinnati, OH 45242 2832
Jul 11, 2007 With air volumes up to 2,500 cfm, Model SDB captures smoke, dust, and powders resulting from operations such as grinding, polishing, hand sanding, and dry buffing. System features 80 x 55 in. grated work surface that can accommodate loads up to 75 lb/sq-ft. It automatically self-cleans when pulses of compressed air dislodge dust from filters upon shutdown. By drawing particles and contaminants away from worker's breathing zone, SDB help companies comply with OSHA regulations.

Cartridge Dust Collectors come in 3 configurations.

United Air Specialists Inc.    Cincinnati, OH 45242 2832
Oct 03, 2006 Available as portable system (VP), downdraft bench (VB), and self-contained unit (VF), V Series captures contaminants at source with parabolic swing arm, downdraft table, or ducted inlet respectively. Series works in processes such as metalworking, grinding, blending, filling, and packaging. Available with selection of filters, products remove contaminants from air and return clean air to work area. Features include automatic filter cleaning cycle and quiet (below 82 dBa) operation.

Dust Collection Systems eliminate need for compressed air.

United Air Specialists Inc.    Cincinnati, OH 45242 2832
Jun 02, 2006 Self-contained, shaker-style SDC Series captures and filters airborne pollutants in intermittent-duty industrial processes. Upon shutdown, dust collectors automatically shake filter media free of dust. TEFC motor and powder-coated finish allow units to function indoors or out with no fading and chalking, while backward-inclined blower wheel minimizes noise. Available with multiple discharge options, dust collectors handle 300-8,000 cfm.

Cartridge Dust Collectors adapt to collection needs.

United Air Specialists Inc.    Cincinnati, OH 45242 2832
Dec 10, 2004 Portable, all-purpose V Series captures smoke, dust, and powders resulting from manufacturing operations. Models capture and remove contaminants at source, minimizing hazards that result from improperly controlled air borne pollutants, and promote compliance with OSHA regulations. Series includes Model VB downdraft bench, Model VF self-contained airflow and filtration source, and portable Model VP. Each model is available 2 sizes: 750 or 1,500 scfm.
