Linear Motor Feedback System targets high-end applications.

SICK STEGMANN, INC.    Dayton, OH 45413
Nov 23, 2009 Absolute, noncontact TTK70 Motor Feedback System delivers measuring lengths up to 4,000 mm, resolution of less than 1 µm, and system accuracy of less than 10 µm, at operating speeds up to 10 m/sec. Rated for operation in temperatures of 30-85°C, it features HIPERFACE® interface that transmits position values to evaluation electronics of linear drive. Unit consists of read head and magnetic tape with magnetic code that forms 10 mm wide measuring scale.

Programmable Encoders can satisfy specific requirements.

SICK STEGMANN, INC.    Dayton, OH 45413
Nov 09, 2009 Respectively offering 18- and 30-bit resolution at speeds to 9,000 rpm, AFS60 (singleturn) and AFM60 (multiturn) absolute encoders can be configured via PC or laptop in seconds without external voltage supply. Resolution, zero point or offset, and counting direction can be freely selected. Design also allows 30 mm distance between bearings, decreasing vibration and increasing bearing life. Coupled with Nickel code disc, encoders can determine position, angle, speed, or acceleration.

Capacitive Motor Feedback Systems can replace resolvers.

SICK STEGMANN, INC.    Dayton, OH 45413
Oct 02, 2009 Supplied in 52 mm housing with HIPERFACE® interface, SEK/SEL52 series includes singleturn and multiturn versions with servo clamp, hollow shaft, or tapered shaft configurations. Bearing-less and capacitive sensor element delivers robust operations and accuracy of measurement is immune to radial and axial tolerances introduced during rotor rotation. Models provide 16 sine/cosine periods, resolution of 512 steps/revolution, and 1 (singleturn) or 4,096 (multiturn) steps/revolution.

Capacitive Motor Feedback Systems resist shock and vibration.

SICK STEGMANN, INC.    Dayton, OH 45413
Sep 04, 2009 Designed for mounting directly onto tapered shafts, 36 mm dia SEK/SEL37 are available in single-turn and multi-turn versions with radial or axial plug outlet and HIPERFACE® interface. Holistic scanning almost fully compensates for eccentricity errors, and operating ranges are available from -40 to +115°C (single-turn) or -20 to +115°C (multi-turn). Systems provide 16 sine/cosine periods, resolution of 512 steps/rev, and one (single-turn) or 4,096 (multi-turn) steps/rev.

Motor Feedback Systems feature capacitive operation.

SICK STEGMANN, INC.    Dayton, OH 45413
Sep 04, 2009 Measuring 36 mm in diameter, SEK/SEL37 Capacitive Motor Feedback Systems feature HIPERFACE® interface and are available in single-turn and multi-turn versions with radial or axial plug outlet. Units provide 16 sine/cosine periods, resolution of 512 steps/rev, and operating temperature of -40 to +115°C for single-turn models and -20 to +115°C for multi-turn models. Mounted directly onto tapered shafts, systems utilize holistic scanning, which almost fully compensates for eccentricity errors.

Incremental Encoders are programmable from 1-65,536 ppr.

SICK STEGMANN, INC.    Dayton, OH 45413
Jan 29, 2009 Series DFS 60 encoders accommodate values from 1-65,536 pulses per revolution (PPR) and, via programming tool, allow users to set zero pulse width to 90°, 180°, or 270° and program electrical interface to either HTL or TTL. They are available in blind hollow shaft, through hollow shaft, and solid shaft models, and feature mechanical design and metal code disc that provide robustness and temperature tolerance. Design also allows 30 mm distance between bearings, minimizing vibration.

Motor Feedback System has blind hollow shaft configurations.

SICK STEGMANN, INC.    Dayton, OH 45413
Mar 19, 2008 Suited for use in dirty or dusty environments with water washdown cleansing, VFS 60 Motor Feedback Systems come with single point of potential access. Hollow shaft encoders feature nickel code disc that facilitates operation in harsh industrial environments and tolerance to temperatures as high as 100ºC. They are IP65 rated and deliver from 1-10,000 ppr in industry-standard 60 mm housing. Ball bearings that support encoder shaft are spaced 30 mm apart to ensure concentricity.

Incremental Encoder comes in blind hollow shaft version.

SICK STEGMANN, INC.    Dayton, OH 45413
Feb 19, 2008 Designed for use in dirty/dusty environments with water washdown cleansing, Model DFS 60 reduces potential for contamination by dust, dirt, or water, delivers from 1-65,536 ppr, and operates in temperatures ranging from -20 to 100°C. Available with TTL or HTL interface, it features nickel code disc that supports operation in heavy duty industrial applications. Radial/axial cable outlet reduces installation depth and allows single encoder type to be used for various applications.

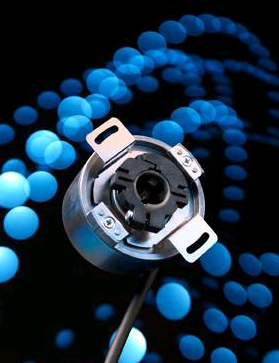

Incremental Encoders deliver up to 65,536 ppr.

SICK STEGMANN, INC.    Dayton, OH 45413
Nov 19, 2007 Packaged in 60 mm housing with nickel code disc, DFS 60 Series is suited for heavy-duty industrial applications. Hollow shaft clamping facilitates mounting, minimizes run out problems with collets, and isolates electricity between motor shaft and encoder. Housed in spring steel, integrated stator coupling allows error free angle measurement and lets users adjust shaft and axial movement of motor shaft. Encoders are IP65-rated and available with TTL or HTL interface.

Positioning Drive accelerates multi-axis machine changeover.

SICK STEGMANN, INC.    Dayton, OH 45413
Sep 17, 2007 Used to facilitate adjustment of auxiliary axes, HIPERDRIVE enables fully automatic product and format changes on production machines with precision adjustment accuracy and reproducibility. Solution consists of fully integrated motor, gears, and absolute measurement system as well as performance and regulatory electronics. Able to be integrated into new and existing machines, unit comes in IP65 enclosure and offers alternative to manual hand wheel adjustments.
