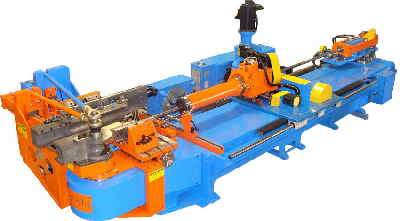

Rotating-Head Tube Bender produces complex tubular shapes.

Horn Machine Tools, Inc.    Madera, CA 93638
Aug 05, 2011 Used in areas from furniture production to aerospace manufacturing, Unison Breeze-Revolution features 2 multiple-tool heads mounted on opposite sides of rotating frame. Rotating tool head allows left- and right-hand bending to be performed in one continuous automatic cycle. All-electric machine also accelerates operation via simultaneous movement of multiple machine motion control axes during bending and head changes as well as special movement profiles.

Tube Benders offer tube capacities from 1 ¼ to 10 in.

Horn Machine Tools, Inc.    Madera, CA 93638
Jun 04, 2010 Available in 12 models, 2010 Elite Series offers comfortable load height of 36 in. from floor to center of tube. Direct acting swing arm design minimizes clamping deflection and puts clamp force on center of tube, while heavy-duty precision linear bearings provide exact tool positioning and eliminate metal-to-metal wear surfaces. No tools are needed to change or position clamp die or to change pressure die. Pressure is programmed and stored in control.

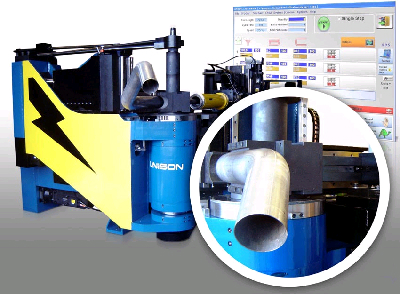

Electric Tube Bender offers multi-stack tooling.

Horn Machine Tools, Inc.    Madera, CA 93638
May 09, 2008 Utilizing Windows-based Unibend Control Software, Breeze 150 offers programmable control over rotary draw bending process, with max bending torque of 814,269 lb-in. and 6 in. OD capacity. Bends up to 180° can be made with repeatability of ±0.1° of bend angle and plane of bend. Machine includes swing-away wiper die system, and split tooling to aid bending of square section tube. Stack height of 24.8 in. allows user to store multiple toolsets on machine for rapid changeover.
