Rotating Scanner inspects airframe fasteners and bolt holes.

Uniwest    Pasco, WA 99301
Jan 11, 2005 Mini ECS-1 finds indications of defect amplitude and circumferential location. Coupled with US-454 EddyView® instrument, cable, and rotating probes, scanner can detect minute flaws. Scan rate of 1,500 rpm assures full surface coverage at normal insertion rates. Featuring frequency range of 30 KHz to 6 MHz, portable unit weighs less than 8 oz and is under 1 in. wide at rotating head, enabling access into narrow confines.

Inspection System uses one probe to scan various bolts.

Uniwest    Pasco, WA 99301
Nov 05, 2004 Tie-Bolt Inspection System uses gravity and thread angle to drive universal probe along thread pattern. Bolt head and shank can be inspected by manually manipulating probe, and one probe can be used to scan variety of bolts with typical inspection time of less than 7 sec. Tie-bolts are rotated at 100, 200, or 400 rpm for full scanning flexibility. Scanning bed accommodates bolt lengths from 1–6 in. and diameters from 5/16–1 in.

Finger Camera shows inaccessible views.

Uniwest    Pasco, WA 99301
Jul 22, 2004 VisionProbe® US-1478 enables technicians to perform visual and NDT inspections, even in total darkness. Four high-intensity LED lights fully illuminate objects for scanning, while variable focus lens projects bright, crisp video images onto display. Camera can be attached to probe handles or to inspector's hand so that it can be positioned to point at any object. Images are displayed on US-454 EddyView® screen along with eddy current scans.

Eddy Current Tester features 10 Hz to 10 MHz frequency range.

Uniwest    Pasco, WA 99301
Oct 31, 2003 Model US-454M multi-channel, eddy current inspection instrument can be configured as 1 channel with 4 frequencies, 2 channels with 2 frequencies per channel, or 4 channels with 1 frequency per channel. Encoder knob enables technician to scroll through menus and select testing parameters. Four function keys allow set up of repetitive inspection criteria such as gain, frequency, rotation, and filters. Internal memory stores up to 100 test setups.

Viewer works with eddy current instrument.

Uniwest    Pasco, WA 99301
Sep 17, 2003 MicroOptical Instrument Viewer connects directly to video input, allowing technicians to see part they are inspecting and eddy current screen simultaneously. Small monitor attaches to safety or standard glasses for hands-free capabilities, enabling inspectors work comfortably without turning their heads. Applications include aerospace, power generation, NDT inspection, and manufacturing.

Inspection System provides defect-free roller bearings.

Uniwest    Pasco, WA 99301
Jun 10, 2003 Built with proprietary US-454 EddyViewâ„¢ eddy current inspection instrument, product uses transport system that allows different diameter roller bearings to be inspected by changing hoppers and chutes. Bearings are individually selected in hopper and transported by gravity to inspection station. Assembly continuously rotates bearing while eddy current probe indexes its length. After inspection, assembly arm transports bearings to appropriate defective/defect-free bin.

Eddy Current Scanner offers specific software capabilities.

Uniwest    Pasco, WA 99301
Feb 27, 2003 Automated Model ETC-2000 includes capabilities for inspection of turbofan components such as bores, webs, broach slots, boltholes, blades, and scallops. Using proven scan plans, inspection capabilities include Edge Neglect, Auto Calibration, Return-to-Indication, and Find X, which locates specific surfaces and stops. Software Enabling allows off-line personnel training and analysis of data, while Windowing provides defect isolation and identification.

Color Video Camera performs high temperature inspections.

Uniwest    Pasco, WA 99301

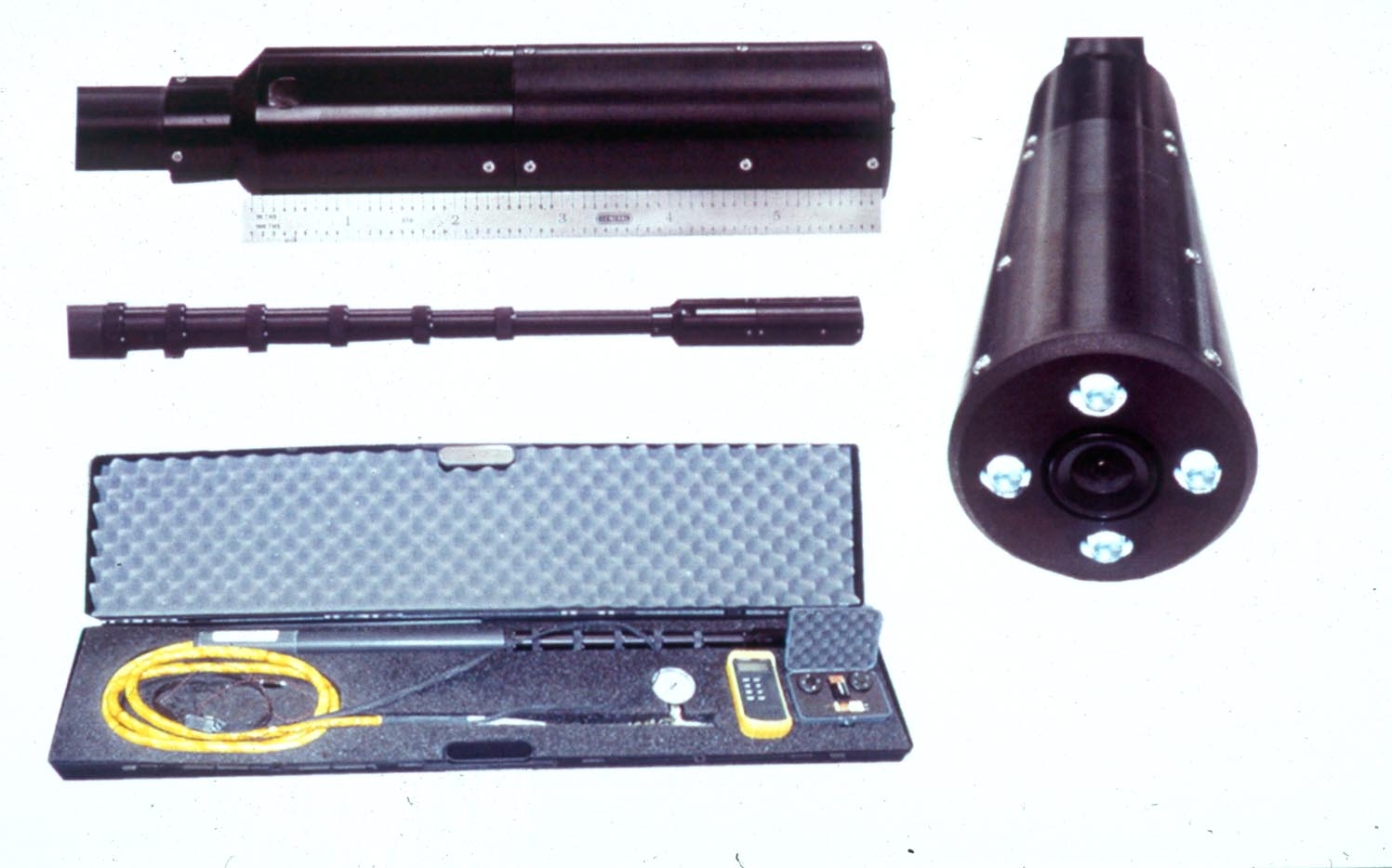

May 16, 2002 Model US-1490 HiTempProbe(TM) withstands temperatures to 1,500 deg F for up to 30 sec, or 900 deg F for 3 minutes, making it suitable to visually inspect for flaws in hot environments. LED lights, inset next to camera lens, allow inspecting in total darkness. Single chip 1/3 in. format CMOS video camera has 3.6 mm lens with 310 lines of resolution. Thin wall hardened aluminum tube has 6 sections, which can be extended from 30 to 126 in.

Eddy Current Instrument utilizes memory cards for storage.

Uniwest    Pasco, WA 99301

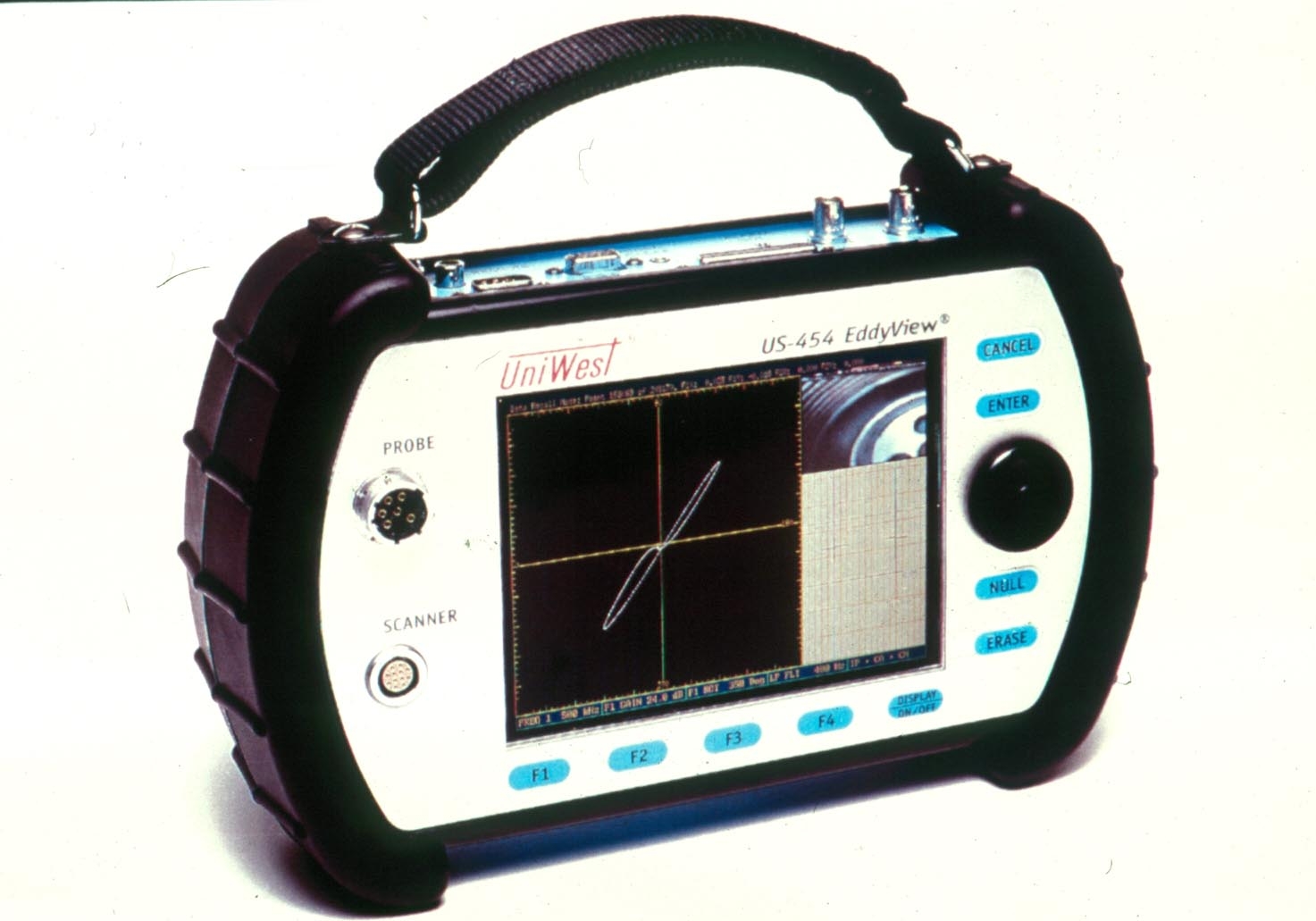

Jan 11, 2002 US-454 EddyView combines dual frequency eddy current sensor, video imaging and strip chart recorder into portable device. It has bright and clear 6.5 in. flat panel LCD that can be seen from a distance, enabling technicians to view and scan remotely. One knob on front toggles images between eddy current, video and strip chart. Applications include flight line, airframe, jet engine, condenser tubing, and general eddy current NDT work.
