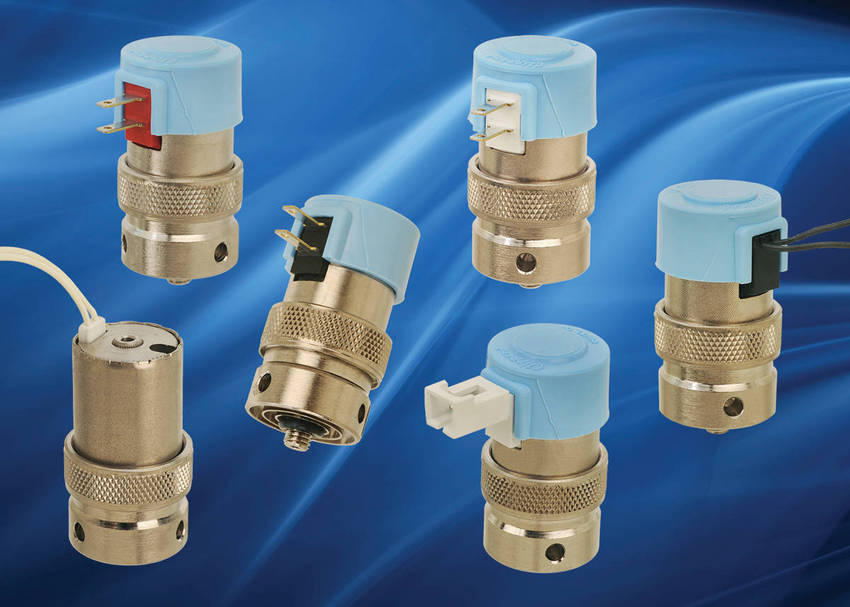

Electronic Valves provide air flow of 1.4 scfm at 100 psig.

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239
Mar 21, 2013 Interfacing with electric and electronic circuits, Minimatic® Electronic Valves are 2-way Normally Closed control valves with no sliding parts. Complete poppet travel is 0.007 in., minimizing power consumption. Manifold and in-line mounting are available as well as many different electrical connection styles. Oxygen Clean and Analytical versions are also offered as well as FKM, EPR, and Silicone seals and diodes. Flow rates of 1.1 scfm at 50 psig and 0.95 scfm at 25 psig are optional.

Electronic Pneumatic Valves serve analytical industry.

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239
Jan 03, 2013 Available in 2- or 3-way, NC or fully ported, A-E Series pneumatic valves are designed for needs of analytical industry. Electronic valves consume 0.67 W, offer response times from 5–10 msec, and are available with voltages of 6, 12, or 24 Vdc, promoting design flexibility. Materials, manufacturing, and assembly processes make valves suited for applications where internal cleanliness, bubble-tight operation, and extended life are important.

Stainless Steel Cylinders offer stroke lengths up to 4 in.

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239
Sep 05, 2012 Available in stud or universal mount, 9/16 in. Bore Stainless Steel Cylinders come in double, single, or reverse acting versions with rotating or non-rotating rod. Units feature precision rolled construction with polished ID stainless steel tubes, machined aluminum heads, and sintered bronze bushing. Piston and rod seals are Buna-N U-cup types, while rods are ground, polished, and roller burnished 303 stainless steel.

Miniature Pneumatic Mufflers keep workplace sound below 90 dBA.

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239
Jul 18, 2012 Clippar Pneumatic Brass Silencing Mufflers feature porous sintered bronze air mesh to reduce air exhaust noises from valves, cylinders, and other pneumatic products. Units help to meet OSHA requirements by maintaining safe workplace sound levels below 90 dBA, while minimizing flow restriction. Also including 40 micron filter, mufflers are available with #10-32, 1/8, ¼, 3/8, and ½ in. pipe threads.

Pilot-Operated Check Valves feature 0-300 psig pressure range.

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239
Apr 04, 2012 Featuring poppet design, JPC Series works as standard check valve, but can be opened with air pilot signal to permit free flow in normally checked position. Units are constructed of ENP brass, anodized aluminum, and stainless steel with Buna-N seals. With temperature range of 32-230°F, valves operate with air, water, or oil as medium. Auxiliary port facilitates plumbing, while side port rotates for ease of positioning.

Two-Way Proportional Valve features 0-300 slpm flow range.

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239
Jan 25, 2012 Utilizing linear actuator, Stepper-Controlled Proportional Valve features 2% hysteresis, 2.5% linearity, and 2 ms reaction time. Bonded elastomeric seat achieves optimized sealing, ensuring smooth opening and fine control at low flow for millions of cycles. Modifiable for OEM applications, valve is suited for gas delivery, medical, analytical, and industrial automation uses.

Proportional Valve Driver offers user-selectable parameters.

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239
Jul 14, 2011 Designed for use as plug-and-play interface between EVP Series Proportional Control Valves and PLCs or other controls, EVPD Proportional Valve Driver generates current to drive proportional solenoid valve in response to low power proportional command signal. Driver integrates with existing machine controls and provides user-adjustable parameters to accommodate application requirements. With 5 available signal inputs and 3 selectable valve output ranges, EVPD is compact and flexible.

Electronic Valves enable design flexibility.

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239
Jun 14, 2010 Featuring wire leads out of valve top, EW Series offers 2- or 3-way, NC or fully ported configuration possibilities. Inline or manifold mount options, as well as available DC voltage choices, foster design flexibility. In addition to response time of 5-10 msec, valves feature power consumption rating of 0.67 W.

Lever Valves are designed for easy installation and access.

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239
Apr 15, 2010 Lever Valves are manually-operated, 3- or 4- way spool valves with ¼ in. NPT ports for easy accessibility. Products offered in 0-150 psig pressure ranges and operate in temperatures from 32-140°F. Suited for wide range of application, units are available with either base or panel mount.

Air Jets feature ball nozzle design.

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239
Dec 02, 2009 Designed to deliver concentrated flow of air or liquid to designated location, Air Jets are available with wide range of nozzles, bases, and mounting hardware. Ball nozzle accepts variety of tubing configurations that can be aimed and locked into position. Available in brass and stainless steel, Air Jets feature pressure range up to 200 psig and operating temperature of 32-180°F. Applications include blowoff, cleaning, drying, part ejecting, and cooling.
