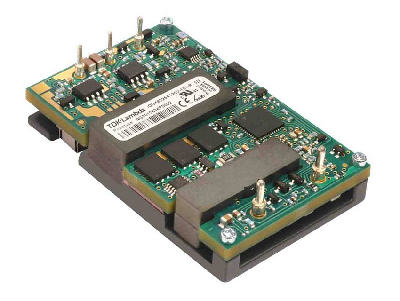

Quarter Brick DC-DC Converters feature 95% efficiency.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Apr 03, 2013 Operating with input range of 36–75 Vdc, iQG Series includes 300 and 400 W models with regulated 12 Vdc output, input to output isolation of 1,500 Vdc, and baseplate temperature range of -40 to +125°C. Units feature open frame, single board construction and are compatible with all cooling strategies, including conduction, convection, and forced air. Housed in low-profile package measuring 0.52 in. high, 400 W units have 230 W/in.³ power density and deliver up to 33 A of usable output current.

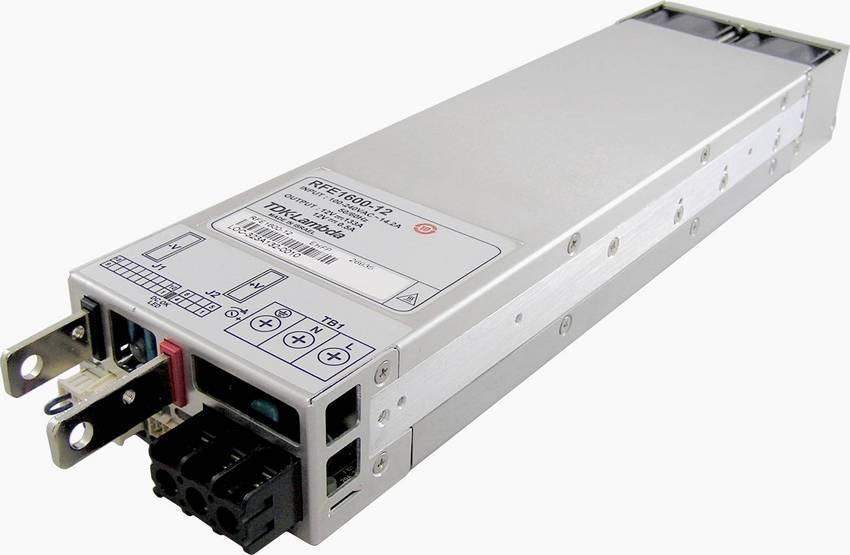

AC/DC Power Supply offer 92% efficiency with digital controls.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Mar 21, 2013 Rated 1,600 W, single-output RFE1600 Series has 23.5 W/in.³ power density and 85–265 Vac universal input with PFC. These 12.6 x 3.35 x 1.61 in. power supplies, which operate from -10 to +70°C, suit applications requiring 12, 24, or 48 Vdc bulk power in stand-alone or distributed power architectures. Output voltage is user adjustable, and optional I²C/PMBus serial communications port enables remote control/monitoring. Units can be used individually, or up to 10 may be connected in parallel.

Convection Cooled AC/DC Power Supplies deliver up to 300 W.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Feb 07, 2013 Measuring 3.31 x 7.01 x 1.45 in., single-output ZWS300BAF series operates from universal input of 85–264 Vac, 47–63 Hz, with PFC; can also operate from 120–370 Vdc input; and offers output ratings from 50–300 W. Available output voltages of 24, 36, or 48 Vdc have ±10% adjustment range, and efficiency rating reaches 91%. While convection-cooled operating range is -10 to +70°C with derating above +45°C, series can operate at up +60°C without derating if forced air cooling is available.

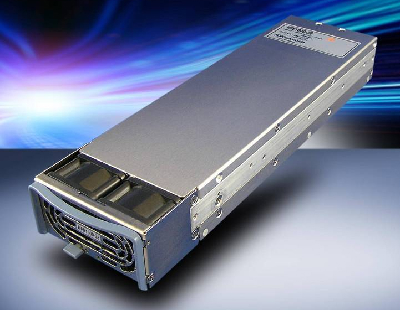

Front End AC-DC Power Supply suits broadcast applications.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Jan 17, 2013 Equipped with 2 variable-speed cooling fans, 32 V Model HFE1600-32 operates from 85–265 Vac universal input and provides up to 92% efficiency. Power supply can be used individually or up to 5 units can be mounted in 1U rack, delivering up to 8 kW. To form hot swap N+1 redundant power system, up to 10 units mounted in 2 racks can be configured in parallel with single wire current sharing. Output voltage is programmable by resistance, external voltage, or optional PMBus compatible I2C interface.

Open Frame Power Supplies deliver 10, 15 and 30 W.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Dec 07, 2012 Measuring 2 in. wide with profile of 1 in. or less, ZWS10-30B Series consumes less than 0.5 W under no-load conditions. Units operate from universal 85–265 Vac input and are available with 3.3, 5, 12, 15, or 24 Vdc output voltage, all of which are user adjustable by ±10%. ZWS10-30B Series can be operated at full load with convection cooling from -10 to +50°C ambient. When forced air cooling is available, ITE Certified power supplies can operate at full power up to +60°C without derating.

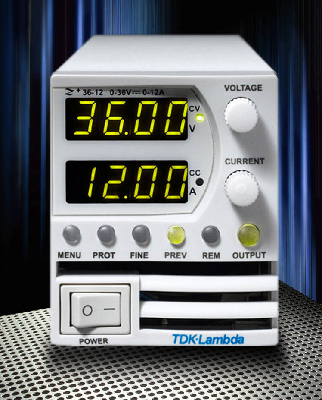

Programmable DC Power Supplies suit ATE applications.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Nov 15, 2012 Able to operate in constant-current or constant-voltage mode from 85–265 Vac input, Z+200 bench-top and rack mountable power supplies provide 200 W of output power with output voltage range of 0–100 Vdc and output current to 20 A. Standard 2.76 in. wide x 3.27 in. high models offer front panel controls as well as built-in arbitrary waveform generation, storage for up to 4 pre-programmed functions, safety functions, and USB, RS232, and RS485 interfaces.

Industrial-Grade Power Supplies charge secondary batteries.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Oct 04, 2012 With max output of 600 or 1,000 W, HWS-L/BAT series charges secondary batteries employed in emergency power backup systems that use rechargeable batteries with nominal voltage of 24 or 48 Vdc. Depending on model, max voltage is 36 or 60 Vdc; adjustable voltage range is 28–36 Vdc or 48–60 Vdc, and adjustable constant current limit ranges are 9-9–18 A, 5.5–10 A, 15.9–29 A, and 9.3–17 A. With 2.4 in. profile, all models accept 85–265 Vac input range and support parallel connection.

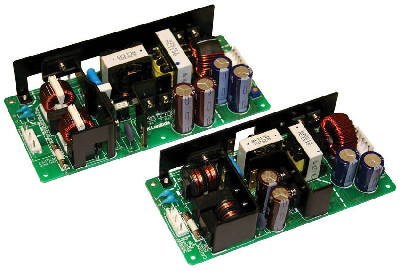

AC-DC Power Supplies deliver up to 200% peak power.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Sep 06, 2012 Featuring universal 85-264 Vac/47-63 Hz input, ZWS-BP Series delivers 150 or 240 W of output power and single output voltage of 24, 36, or 48 Vdc. Open-frame, convection-cooled units can operate with DC input of 120-370 Vdc and are 91% efficient. Operating temperature range is -10 to +70°C with derating above +50°C. Available with 2.95 x 6.3 in. or 3.31 x 7.09 in. footprint, power supplies are suited for industrial, POS, test and measurement, LED signage, and communications equipment.

Programmable DC Power Supplies deliver 400 W of power.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Aug 03, 2012 Measuring 3.27 in. H x 2.76 in. W, Z+400 Series features output voltage range of 0-100 Vdc and output currents up to 40 A. All models can operate in constant-current or constant-voltage mode from 85-265 Vac input. Available in bench-top and rack mountable versions, power supplies include USB, RS232, and RS485 interfaces, as well as active PFC, variable speed fans, and user-selectable Safe-Start and Auto-Re-Start. Analog remote programming and monitoring is user selectable from 0-5 or 0-10 V.

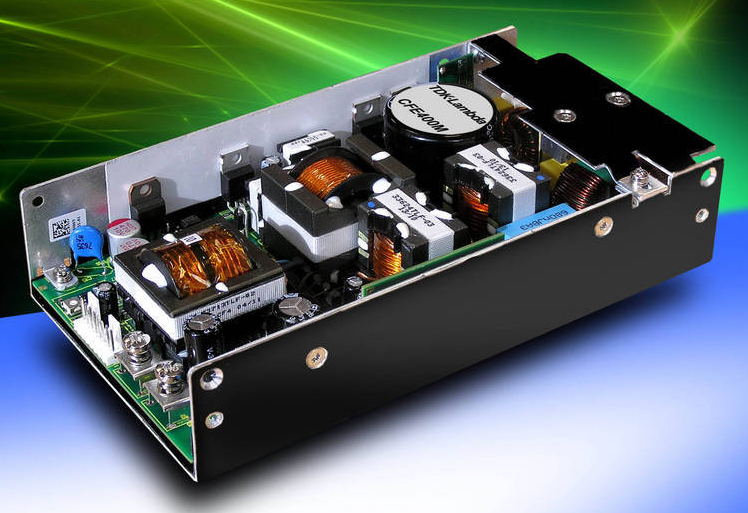

Medical Power Supplies meets UL60601-1 Third Edition.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Jun 21, 2012 Available in convection- and fan-cooled versions, CFE400M series comprises digitally controlled, 300-400 W, single-output, medical power supplies. Products combine 4 kVac reinforced input-to-output isolation with dual fusing and output-to-ground isolation of 1,500 Vac. Available in field-adjustable 12, 24, and 48 Vdc versions, with 12 Vdc/0.25 A fan supply, series has 5 V/80 mA standby output (less than 0.5 W standby power consumption)or 5 V/2 A option. Both offer 94% typ efficiency.
