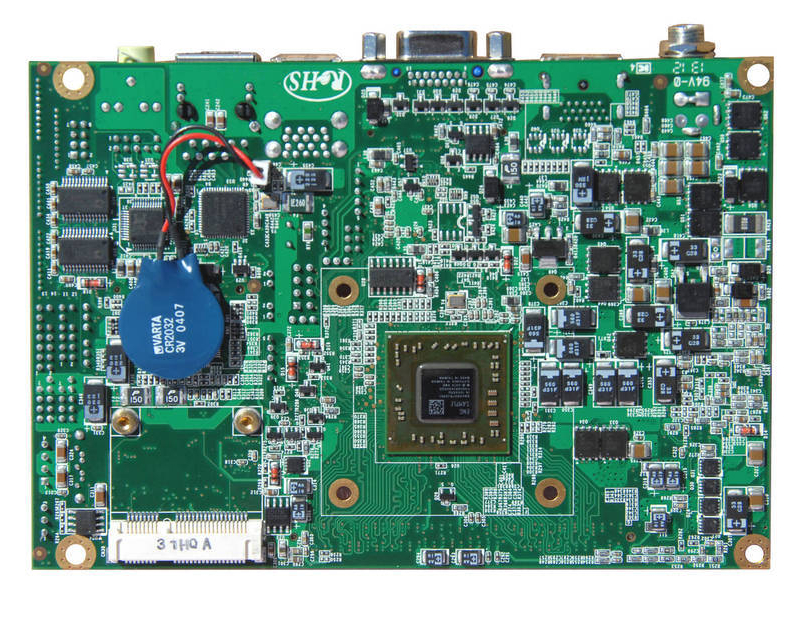

Single Board Computer integrates AMD Embedded G-Series SoC.

WIN Enterprises    North Andover, MA 01845
May 03, 2013 Leveraging AMD Embedded G-Series SoC with integrated chipset and discrete-class AMD Radeon™ GPU, MB-60830 has 8–32 Vdc input, supports up to 4GB DDR3 and comes with enterprise-class ECC memory support. This 3.5 in. SBC, available with dual- or quad-core CPUs based on AMD’s Jaguar architecture, operates from -40 to +85°C and offers diverse connectivity via RS232/422/485, 3 RS232, 4 COM, 6 USB, HDMI/VGA and LVDS, SATA, Giga LAN and HD Audio interfaces as well as 2 Mini-PCIe sockets.

Networking System supports up to 64 GbE LAN ports.

WIN Enterprises    North Andover, MA 01845
Apr 24, 2013 Featuring dual Intel® Xeon® E5-2600 Series processors, 2U Model PL-80150 offers choice of 2, 4, 6, or 8 processing cores with clock speeds to 3.3 GHz. Dual processors feature 20 MB of cache and support PCIe 3.0 interface to provide total of 80 PCIe lanes with up to 8 Gbps per lane. Each CPU socket supports 4 DDR3 channels with speeds up to 1,600/1,866 MHz and maximum capacity up to 128 GB of ECC memory when using LR DIMM technology. Redundant power is provided for critical IT applications.

Quad Processor Networking System provides up to 128 LAN ports.

WIN Enterprises    North Andover, MA 01845
Apr 01, 2013 Featuring 4U rackmount design, Model PL-80480 is available with 4-, 6-, or 8-core Sandy Bridge-EP/Ivy Bridge-EP Xeon E5-4600 processors. Four processors with up to 32 cores, 80 MB cache, and PCIe 3.0 interface provide total of 160 PCIe lanes with up to 8 Gbps/lane. Each CPU socket supports 4 DDR3 channels with speeds up to 1,600/1,866 MHz and up to 256 GB ECC memory. Utilizing two 3.5 in. SATA hard disks or solid state drives, Intel® 7 Series C604 chipset supports I/O and high speed mass storage.

AMD G-Series Powered SBC meets needs of gaming OEMs.

WIN Enterprises    North Andover, MA 01845
Mar 15, 2013 Intended for gaming equipment manufacturers, MB-63020 is powered by AMD G-Series processor and offers 3D graphics performance with support for DirectX 11 and Open GL 4. SBC supports full bit stream decoding of H.264/MPEG4 AVC, VC-1, DivX, Xvid, MPEG2, and Blu-ray 3D as well as independent dual display via VGA and DVI-D. In addition to near Mini-ITX form factor with 4x PCIe expansion slot, product features SATA connectors, 4 COMs, and optional TPM 1.2 and Crypto-memory.

Rackmount Network System supports dual Intel Xeon processors.

WIN Enterprises    North Andover, MA 01845
Dec 03, 2012 Providing up to 128 GB DDR3 1,333 system memory, 1U Model PL-80430 is based on 2x Intel® Sandy Bridge-EP Xeon® E5 Series processors, which support up to 8 cores each, plus 20 MB cache and PCIe 3.0 interface to provide 80 PCIe lanes. Two Intel® QuickPath Interconnects run up to 8.0 GT/s to support processors. In addition, platform provides two 2.5 in. SATA hard disks or solid state drives as well as maximum of 5x GbE Copper ports, 2x SFP ports, and 12x SFP+ 10GbE via PCI-e x8/x2/x1.

Network Appliance (2U) leverages Intel® Sandy Bridge processors.

WIN Enterprises    North Andover, MA 01845
Jul 20, 2012 For network service applications, rackmount PL-80460 is built with Intel® Embedded IA components and supports single Intel® 32 nm i3/i5/i7 and Intel E3-xx processors. Modular system supports 4 GbE LAN in standard configuration, up to 28 GbE in copper, or 24 GbE in fiber. Along with support for 4 unbuffered and non-ECC DDR3 1,066/1,333 MHz DIMM sockets with memory up to 32 GB, features include USB 2.0 and RJ-45 ports, 3.5 in. SATA HDD and CompactFlash(TM) interfaces, and PCI expansion slot.

Network Appliance (1U) leverages Intel Cedarview processors.

WIN Enterprises    North Andover, MA 01845
Jun 27, 2012 Intended for network service applications, rackmount PL-80700 is built with Intel® Embedded IA components, supports Intel Atom(TM) D2550/N2600 low-voltage processors (Cedarview), and integrates ICH10R I/O controller. Appliance also supports DDR3 SODIMM slot with memory to 4 GB and is available with one 3.5 or 2.5 in. SATA HDD and CompactFlash(TM). Optional onboard Cavium Nitrox Lite CN505 is offered to provide hardware-level cryptographic acceleration. Multiple I/O options are standard.

Desktop Appliance utilizes Intel® D2500HN mini-ITX SBC.

WIN Enterprises    North Andover, MA 01845
May 24, 2012 Part of WIN Gisele Series, Model PL-60570 is based on 1.86 GHz Intel® Atom(TM) D2500HN processor board featuring integrated Intel Graphics Media Accelerator 3600, which enables HD video playback. Unit provides 4 GB memory, VGA graphics output, and 4 channels of HD Audio, as well as 8x USB 2.0, 2x SATA, 1x GbE, and 1x PS2 ports. Housed in 2U enclosure with aluminum front panel, network appliance supports general computing and thin client applications.

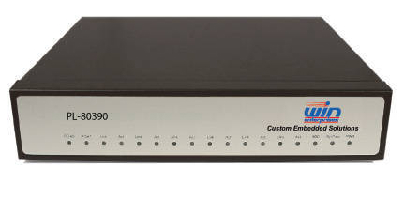

Network Appliance supports Internet security applications.

WIN Enterprises    North Andover, MA 01845
Apr 26, 2012 Equipped with Freescale(TM) P1010 processor, Model PL-80390 is suited for firewall, SPAM filtering, VPN, UTM, gateway, and router applications in SOHO, SMB, and ROBO segments. Unit supports DDR3 on-board memory, 2 Atheros® AR8033/AR8035 GbE Ethernet ports with bypass function, and 4 GbE switch ports. Supplied with USB 2.0 ports and console port on back panel, device allocates space for optional slim-type 2.5 in. SATA HDD and 1 mini-PCIe slot for wireless Ethernet module.

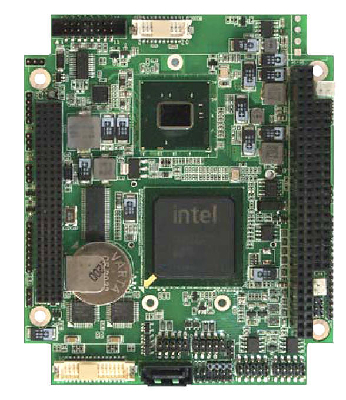

PC/104+ Module supports dual-core Intel Atom D525 processor.

WIN Enterprises    North Andover, MA 01845
Feb 27, 2012 Offering OEMs choice of Intel® Atom(TM) D525, D425, and N455 processors, Model MB-73240 features dual GbE LAN ports, 2 serial ports, and 4 USB ports. Device provides resolution up to 2,048 x 1,536 over VGA and 1,366 x 768 18-bit over LVDS. Storage is supported by SATA interface and CompactFlash(TM). Equipped with DDR3 SO-DIMM socket that supports up to 2 GB memory, module is suited for mobile medical, interactive kiosk, HMI, in-vehicle infotainment, and industrial control.
