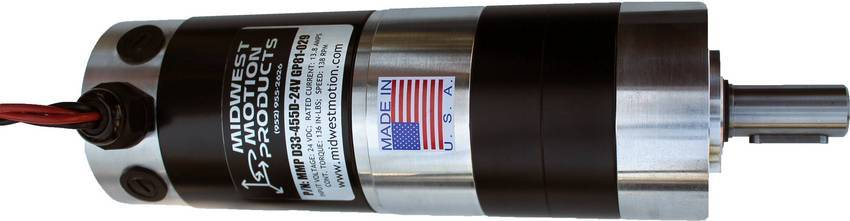

Planetary DC Gearmotor develops 136 lb-in. torque at 138 rpm.

Midwest Motion Products    Watertown, MN 55388
Nov 30, 2012 Accepting any 24 Vdc source, IP54-rated Model MMP-D33-455D-24V GP81-029 measures 3.2 in. dia (max) x 9.25 in. long and has keyed output shaft of 19 mm dia x 40 mm long. Output of this 11 lb, fully reversible gearmotor is rated 136 lb-in. continuous at 138 rpm and 1,062 lb-in. peak. Motor windings for 12, 18, 28, 36, 42, 48, 60, and 90 V are available, and 14 A @ 24 Vdc is required to generate full-load torque. Areas of use include mobility equipment, robotics, and automation applications.

Reversible DC Gearmotor features IP54-sealed design.

Midwest Motion Products    Watertown, MN 55388
Jul 30, 2012 Accepting any 12 Vdc source, including battery power, Model MMP-D33-455A-12V GP81-029 develops 136 lb-in. continuous torque at 140 rpm and 1,062 lb-in. peak torque. Unit measures 3.2 in. in dia x 9.25 in. long with keyed output shaft measuring 19 mm in dia x 40 mm long. Mounting is accomplished with 4 face mount M6 threaded holes, equally spaced on 65 mm dia B.C., or optional NEMA34 flange. Weighing approximately 11 lb, motor requires 28.6 A at 12 Vdc to generate full-load torque.

Planetary DC Gearmotor features IP54 sealed design.

Midwest Motion Products    Watertown, MN 55388
Jul 18, 2012 Accepting any 12 Vdc source, including battery power, Model MMP-D33-455A-12V GP81-03.7 develops 18 lb-in. continuous torque at 1,097 rpm and 354 lb-in. peak. Reversible gearmotor measures 3.2 in. dia x 8.4 in. L with 19 mm dia x 40 mm L keyed output shaft. Mounting is accomplished with 4 face mount M6 threaded holes, equally spaced on 65 mm dia B.C. Requiring 28.6 A at 12 Vdc to generate full-load torque, motor is suited for solar trackers, robotics, and automation applications.

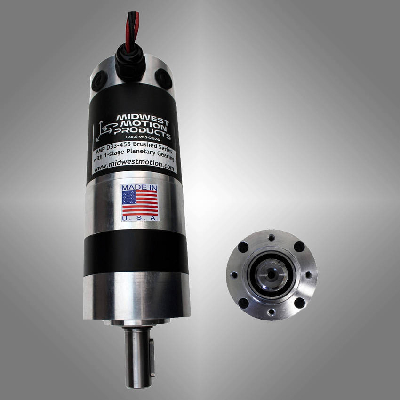

Lightweight Planetary DC Gearmotor accepts any 48 Vdc source.

Midwest Motion Products    Watertown, MN 55388
May 02, 2012 Weighing ~10 lb and measuring 3.2 in. dia x 8.4 in. long, Model No. MMP-D33-455D-48V GP81-03.7 has 19 mm dia x 40 mm long keyed output shaft and is suited for solar tracker, robotics, and automation applications. Output of this IP54-sealed unit is rated for 18 lb-in. continuous torque at 782 rpm and 354 lb-in. peak. Requiring 5.1 A @ 48 Vdc to generate full-load torque, fully reversible gearmotor is available with windings for 12, 18, 24, 28, 36, 42, 60, and 90 V.

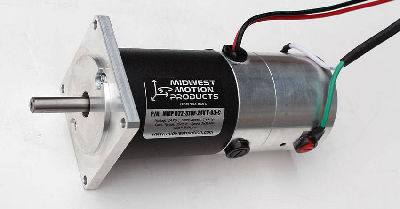

Reversible DC Motor features integral analog tachometer.

Midwest Motion Products    Watertown, MN 55388
Apr 24, 2012 Accepting any 24 Vdc source, Model MMP D22-376F-24V T-03-C measures 2.24 in. dia x 5.4 in. long, including analog tach, which features output of 3.0 Vdc/1,000 rpm of rotation. Motor delivers 25 oz-in. continuous torque at 2,800 rpm, with peak torque of 150 oz-in. Unit requires just 2.4 A at 24 Vdc to generate full load torque. IP54-rated for harsh environments, motor is suited for closed loop velocity control in robotic and automation applications.

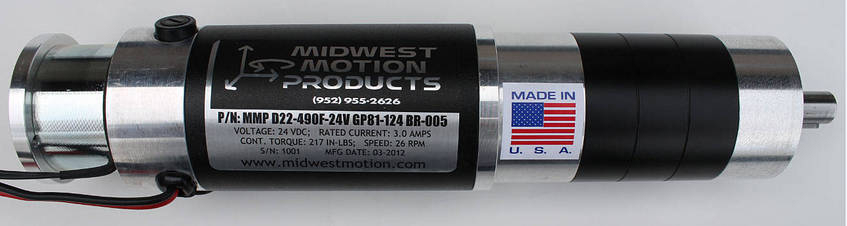

DC Gearmotor suits robotics, automation applications.

Midwest Motion Products    Watertown, MN 55388
Mar 28, 2012 Supplied in IP54 package that measures 2.24 in. dia x 9.25 in. long, including failsafe brake, Model No. MMP D22-490F-36V GP52-124 BR-005 accepts any 36 Vdc source and develops 217 lb-in. torque at 26 rpm. Reversible gearmotor weighs ~5 lb, has keyed output shaft of 12 mm dia x 25 mm long, and requires 3.0 A @ 36 Vdc to generate full load torque. Motor windings for 12, 24, 28, 42, 48, 60, and 90 V are available, and support for variable-speed control is standard.

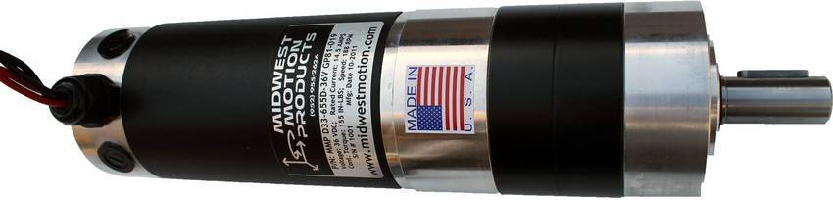

Planetary DC Gearmotor features IP54 sealed design.

Midwest Motion Products    Watertown, MN 55388
Nov 10, 2011 Accepting any 36 Vdc source, including battery power, Model MMP-D33-655D-36V GP81-019 develops 155 lb-in. continuous torque at 188 rpm, and 1,062 lb-in. peak. Unit requires just 14 A at 36 Vdc to generate full load torque. Measuring 3.2 in. D x 11.3 in. L with 19 mm D x 40 mm L keyed output shaft, reversible motor is mounted with 4 face mount M6 threaded holes, equally spaced on 65 mm dia between center. Motor windings for 12, 24, 28, 42, 48, 60, and 90 V are available.

Planetary DC Gearmotor develops 155 lb-in. torque at 188 rpm.

Midwest Motion Products    Watertown, MN 55388
Nov 01, 2011 Measuring 3.2 mm D x 11.3 in. L with 19 mm D x 40 mm L keyed output shaft, Model MMP-D33-655D-36V GP81-019 accepts any 36 Vdc source, including battery power. Unit delivers 155 lb-in. continuous torque at 188 rpm and 1,062 lb-in. peak torque. Featuring IP54 rating for harsh environments, fully reversible gearmotor is mounted via 4 face mount M6 threaded holes, equally spaced on 65 mm diameter B.C. Motor windings for 12, 24, 28, 42, 48, 60, and 90 V are available.

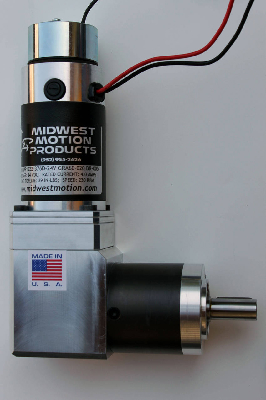

Right Angle DC Gearmotor features integral failsafe brake.

Midwest Motion Products    Watertown, MN 55388
Oct 07, 2011 Accepting any 24 Vdc source, including solar or battery power, Model MMP D22-376D-24V GRA60-032 BR-005 delivers 29 lb-in. output torque at 230 rpm. Reversible unit measures 2.24 in. D x 7.2 in. L, including brake, and has 14 mm D x 25 mm L keyed output shaft. Mounting is accomplished with 4 face mount M5.5 threaded holes, equally spaced on 52 mm dia B.C. Requiring 4 A at 24 Vdc to generate full load torque, IP54-rated motor is suited for solar tracking, robotics, and automation applications.

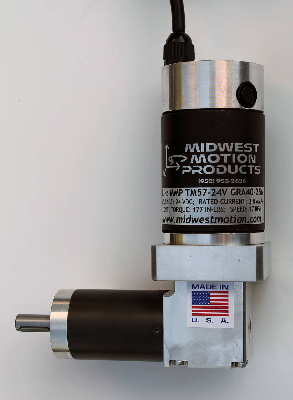

Right Angled DC Gearmotor develops 177 lb-in. torque at 17 rpm.

Midwest Motion Products    Watertown, MN 55388
Sep 14, 2011 Accepting any 24 Vdc source, including solar or battery power, Model MMP TM57-24V GRA40-256 measures 6.5 x 4.7 in. with 10 mm D x 25 mm L keyed output shaft. Reversible unit requires 3.8 A at 24 Vdc to generate full load torque. Mounting is accomplished with 4 face mount M4 threaded holes, equally spaced on 34 mm dia BC. Featuring IP54 rating for operation in harsh environments, gearmotor fits in tight spaces found in robotics and automation applications.
