Magnetic Sensor guides robotic vehicles along invisible tracks.

RoboteQ    Phoenix, AZ 85022
May 16, 2013 With resolution of 1 mm, MGS1600C detects and reports position of magnetic field along its horizontal axis. This 165 mm-wide sensor measures its lateral distance from center of track from height of up to 60 mm, accommodating line-following robotic applications that rely upon adhesive magnetic tape on floor. Enclosed in IP64-rated plastic enclosure, product comes with 2 m, 16-wire, round cable sealed in sensor and offers RS232, USB, CANbus, analog, and PWM ports.

Brushless DC Motor Controller targets robotics, automation.

RoboteQ    Phoenix, AZ 85022
Apr 09, 2013 Able to accept commands from analog pedal/joystick, standard R/C radio, USB, CAN, or RS232 interface, SBL1360 can directly drive hall-sensor equipped brushless DC motor up to 30 A at up to 60 V. Basic Language Interpreter can execute 50,000+ Basic instructions per second, and motor's hall sensors are used to measure speed and travelled distance. Featuring up to 4 analog, 6 digital, and 5 pulse inputs, intelligent controller supports operation optimization via ~80 configurable parameters.

Magnetic Sensor guides robotic vehicles along tape-based tracks.

RoboteQ    Phoenix, AZ 85022
Jan 10, 2013 With customizable functionality offered via Basic-like scripting language, 160 mm wide MGS1600 detects and reports position of magnetic field along its horizontal axis as based on adhesive magnetic tape used to form track guide on floor. Advanced signal processing is used to measure lateral distance from center of track from heights up to 60 mm, and position resolution is 1 mm. Supplied with various ports to output position information, sensor can detect and manage up to 2-way forks.

Smart Brushless DC Motor Controller suits automation and robotics.

RoboteQ    Phoenix, AZ 85022
Nov 05, 2012 Capable of driving brushless DC motor up to 120 A at up to 50 V, MBL1650 accepts commands from analog pedal/joystick, R/C radio, USB, CAN, or RS232 interface. It uses motor hall sensors to measure speed and travel distance, and operates motor in open- or closed-loop speed or position mode with 1 kHz update rate. Measuring 4.45 x 5.5 x 0.78 in., unit includes 4 analog, 6 digital, and 5 pulse inputs and two 1.5 A digital outputs. Product features overheat, stall, and short circuit protection.

Brushless DC Motor Controller targets EVs and robotics.

RoboteQ    Phoenix, AZ 85022

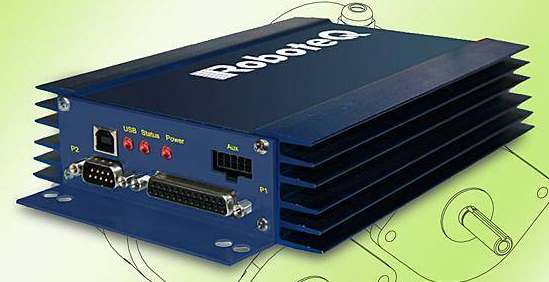

Aug 26, 2011 Featuring intelligent current sensing that automatically limits each power output to 75 A in all load conditions, HBL2350 can simultaneously drive 2 brushless DC motors at up to 50 V. Unit comes in 9.0 x 5.5 x 1.6 in. extruded aluminum case and accepts commands from analog pedal/joystick, standard R/C radio, USB, or RS232 interface. Dual channels can be operated independently or combined, and motors may be operated in open- or closed-loop speed or position modes with 1 kHz update rate.

Brushless DC Motor Controller targets small electric vehicles.

RoboteQ    Phoenix, AZ 85022
Aug 24, 2011 Built into 9.0 x 5.5 x 1.6 in. extruded aluminum case, which also serves as heat sink, dual-channel Model HBL2350 can simultaneously drive 2 brushless DC motors up to 75 A each at up to 50 V. Controller includes up to 11 analog, 19 digital, and 6 pulse inputs, and accepts commands from analog pedal/joystick, standard R/C radio, USB, or RS232 interface. Basic Language Interpreter, capable of executing over 50,000 Basic instructions/sec, can be used to write scripts for adding custom functions.

Intelligent DC Motor Controller directly drives two motors.

RoboteQ    Phoenix, AZ 85022
Jun 01, 2011 Model SDC2130 drives 2 DC motors at 20 A each, or one motor up to 40 A. Able to switch automatically from one mode to another, it accepts commands from analog joystick, R/C radio, USB, or RS232 interface, and Basic Language Interpreter can execute over 50,000 instructions/sec. Current sensing and overheat, stall, and short circuit protection are also included. Featuring 70 x 60 mm, board-level open-frame design, unit has up to 4 analog, 6 digital, and 4 pulse inputs.

Motor Controller targets mobile robots and AGVs.

RoboteQ    Phoenix, AZ 85022
Apr 19, 2011 Capable of directly driving 2 DC motors up to 60 A each, at up to 50 V, Model MDC2250 accepts commands and can switch automatically from analog joystick, R/C radio, USB, or RS232 interface. Unit incorporates Basic Language Interpreter capable of executing over 50,000 Basic instructions/sec. Featuring 4.2 x 5.25 in. open frame design, controller supports up to 4 analog, 6 digital, and 4 pulse inputs. Two 1 A digital outputs are provided for activating, lights, valves, brakes, or other accessories.

DC Motor Controller targets mobile robot and AGV applications.

RoboteQ    Phoenix, AZ 85022
Sep 29, 2010 Accepting commands from analog joystick, R/C radio, USB, or RS232 interface, Model HDC2450 directly drives 2 DC motors up to 150 A each at up to 50 V. Basic Language Interpreter executes over 50,000 Basic instructions/sec, while intelligent current sensing automatically limits power output. Housed in 9.0 x 5.5 x 1.6 in. extruded aluminum case, which also serves as heat sink, controller includes 11 analog, 19 digital, and 6 pulse inputs as well as eight 1 A digital outputs.

Brushless DC Motor Controller suits electric vehicles/robotics.

RoboteQ    Phoenix, AZ 85022
Aug 11, 2010 Model BL1650 drives brushless DC motor up to 150 A at up to 50 V. Accepting commands from pedal/joystick, standard R/C radio, or RS232 interface, 7.50kW unit includes Basic Language Interpreter capable of executing over 50,000 Basic instructions/sec. Product offers current sensing that automatically limits power output to 150 A in all load conditions, and protection against overheat, stall, and short circuits. Unit's extruded aluminum case also serves as heat sink for output power stage.
