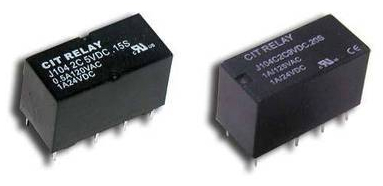

Signal Relay conforms to FCC Part 68.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Nov 24, 2009 Along with 2-pole switching, J104 Series offers coil voltage choices from 3-48 Vdc. Fully sealed solution has bifurcated gold-clad crossbar contacts, 500k-cycle tested electrical life, and 100M-cycle mechanical life. Operating from -40 to +85°C, relay features dielectric strength of 1,500 Vrms min coil to contact and 1,000 Vrms min contact to contact. Insulation resistance is 100 MW min @ 500 Vdc, and shock resistance is 100 m/s2 for 11 ms.

Illuminated Switch is splash- and vandal-proof.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Apr 10, 2009 Available with gold, nickel or SS finish options, BH Series offers multiple LED color choices including bi-color illumination. Electrical ratings are 2 A at 36 Vdc, 1 A at 125 Vac, or 0.5 A at 250 Vac, and electrical life is 50k cycles with contact resistance of less than 50 mW. Actuation force of 16 mm body is 500 ±100 gF with actuator travel of 1.6 ±.25mm; actuation force of 19 mm body is 750 ±100 gF with 2.0 ±.25 mm travel. Terminal options include screw terminal or solder lugs.

Rocker Switches are offered in variety of configurations.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Mar 12, 2009 UL/CUL recognized RC Series has switch function choices of OFF-ON or OFF-(ON) in single pole or double pole configuration. They are offered in 4 housing color choices, 8 actuator color choices, and with 8 different actuator markings. Terminals options include quick connect, solder lug, PC pins, right angle PC pins, and left angle PC pins. Illumination options include 2 choices of neon bulbs and 3 tungsten lamps. Electrical rating is 10 A at 125/250 Vac.

Automotive Relay has rating of 40 A at 14 Vdc.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Mar 10, 2009 Offering 2 footprint styles, American and European PC layout, sealed, immersion cleanable, A5 series suits application in automotive and lamp accessories. It has coil voltage options of 6, 9, 12, 18, and 24 Vdc with coil power choices of 1.6 and 1.9 W. With SPST Normally Closed/Open and SPDT contact arrangements, contact resistance is less than 50 Wmm. Featuring insulation resistance of 100 MW at 500 Vdc, unit has electrical life of 100K cycles with mechanical life of 10M cycles.

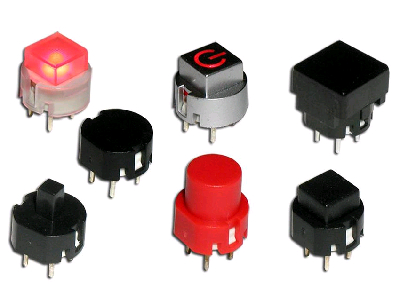

Illuminated Pushbutton is offered with variety of options.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Jan 22, 2009 Offering momentary and latching switching, RoHS compliant BT Series comes in 7 single LED colors and 6 dual LED colors, with round, square, or no frame with 9 cap style options. Cap colors come in semi-transparent, transparent, and opaque styles with 10 laser etching choices. Electrical rating is 100 mA at 30 Vdc, contact resistance is less than 50 MW max, dielectric strength is 500 Vrms min, and switch is rated for 10,000 cycles. Operating temperature range is -40 to 85°C.

UL F Class-Rated Relay has 20 A max switching current.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Dec 19, 2008 Available with .36, .45, and .80 W coil power choices and 3-48 Vdc coil voltage choices, UL-certified J107F Series features 1A, SPST NO; 1B, SPST NC; and 1C, SPDT contact arrangements. Max switching power is 2,500 VA, 420 W, and max switching voltage is 380 Vac, 100 Vdc. Contact ratings include 6 A @ 277 Vac, 10 A @ 250 Vac and 28 Vdc, 12 A @ 125 Vac and 28 Vdc, 15 A @ 125 Vac, 20 A @ 125 Vac and 16 Vdc, as well as 1/3 hp @ 125/277 Vac.

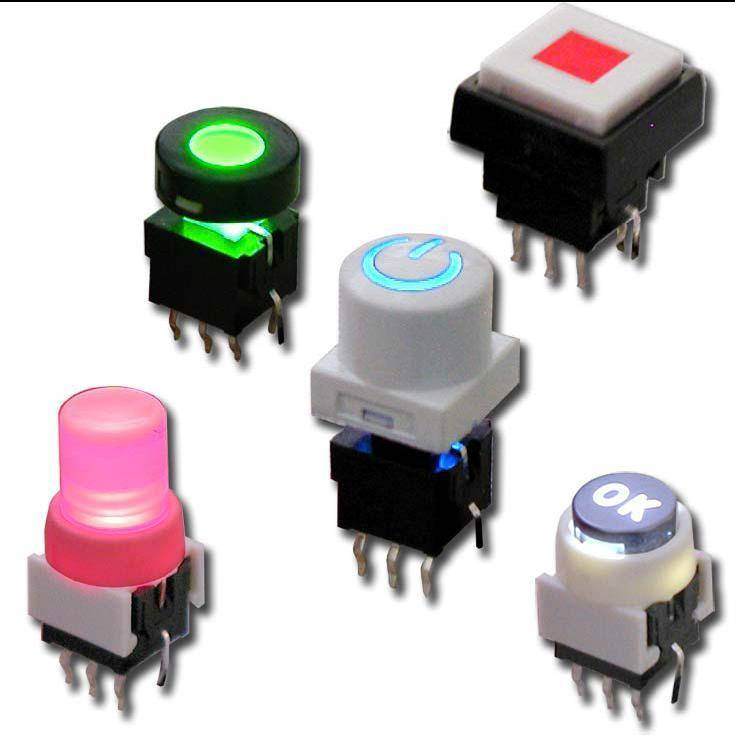

Latching Illuminated Pushbutton suits compact spaces.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Nov 13, 2008 Available with single-color, 3-segment LEDs or bi-color, 6-segment LEDs, JC Series comes in SPDT and DPDT configurations with internal snap-action mechanism that features make and break momentary or latching contacts, tactile detent, and audible feedback. Electrical rating is 500 mA @ 24 Vdc, and actuation force is 200 ±50 gF, with actuator travel 2.2 ±0.1 mm. In addition to 6 cap shape options, switch offers bi-color LED combination options of blue, green, red, yellow, and white.

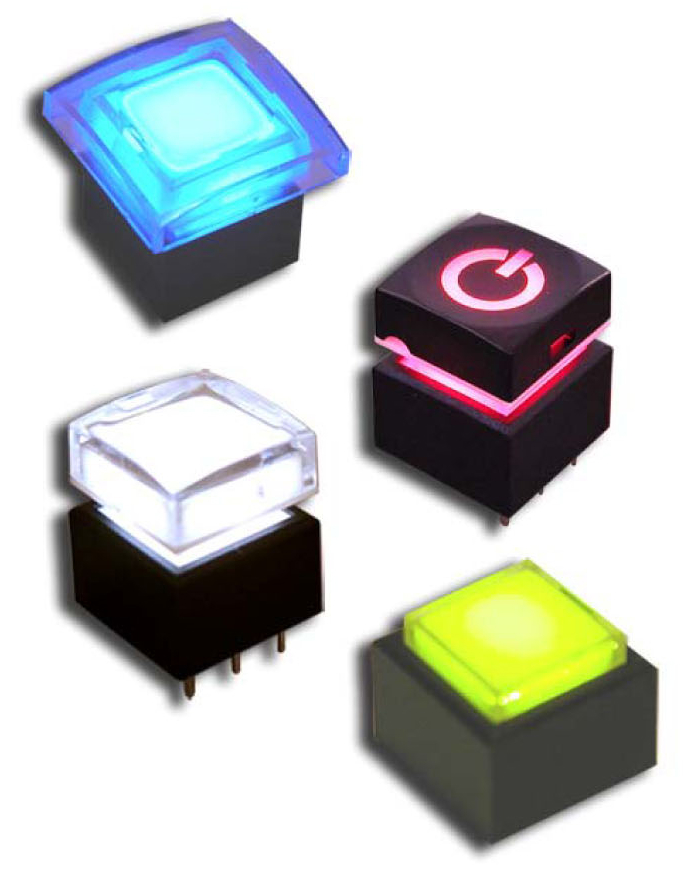

Key Switches offer variety of cap and actuator options.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Aug 04, 2008 Rated 50 mA at 35 Vdc, SH Series comes in non-illuminated models as well as illuminated styles using single or bi-colored LED options. Dielectric strength is 500 Vrms minimum with insulation resistance greater than 100 MW. Units are available with pre-engraved process symbols and 3.3 mm square post for custom actuator designs. Operating from -40 to 85°C, switches feature polycarbonate cover, Valox base, and silver-plated copper alloy contact and terminals.

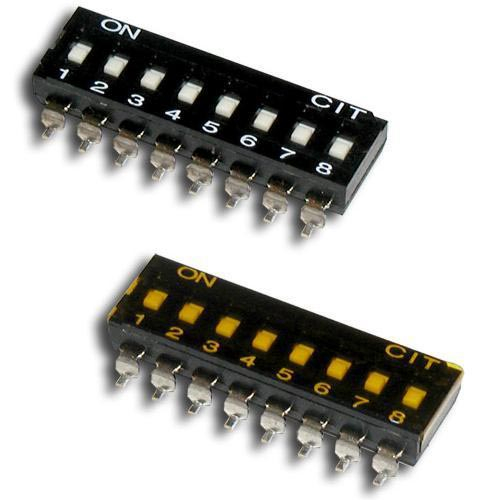

DIP Switch offers both extended and recessed actuators.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Jul 10, 2008 Available with positions ranging from 2-12, KJ Series DIP Switch has electrical ratings of 25 mA at 24 Vdc for switch and 100 mA at 24 Vdc for carry. Featuring electrical life of 2,000 typical with contact resistance of less than 25 mW initial, unit has actuation force of 600 gF max, actuator travel of 0.90 mm, dielectric strength of 500 Vrms min with insulation resistance of greater than 100 MW min, extended actuator height of 0.6 mm, and operating/storage temperature of -40 to 85°C.

RoHS Automotive Relays have switching capacity to 40 A.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Jun 09, 2008 Offering contact arrangement options of SPST N.O., and SPST N.C., A2S Series features mounting bracket and quick connect termination of 6.3 to .250 mm. Units have contact resistance of less than 30 mW, insulation resistance of 100 MW at 500 Vdc, and shock resistance of 147 m/s² for 11 minutes with vibration resistance of 1.5 mm double amplitude 10-40 Hz. Measuring 35.7 x 35.7 x 66.2 mm, relays have operating temperature of -40 to 85°C and storage temperature of -40 to 155°C.
