Modular Valve Systems cut compressed air usage.

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707
May 21, 2013 Using high-performance polymers to minimize weight, Advanced Valve AV03 Systems fulfill engineers' demands for customized automation solutions. Valve components are arranged at an angle to cut space requirements, while supply and exhaust channels are optimized to minimize flow losses. AV03 Systems can control up to 24 coils with 25-pin D-sub connection, up to 40 coils with 44-pin D-sub connection, and up to 128 coils with Field bus connection.

Linear Motion System offers acceleration speeds to 50 m/s².

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707
Jul 09, 2012 Omega Module has belt drive fixed to both ends of main body and looped around drive shaft of table part, reducing module mass while promoting dynamics and top speed (5 m/s). Guidance of module's table part over ball rail systems achieves rigidity for precise movements. Stationary drive enables system to be set up in any position in addition to being used as vertical axis. With stationary main body, custom lengths up to 5,500 mm can be specified; widths of 55, 85, and 120 mm are available.

Scalable Motion Control supports up to 4 electro-hydraulic axes.

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707
Jun 29, 2012 Supporting specific physical behavior of hydraulics, Model HNC100-3X provides optimized curve functionalities, expanded diagnostics options, and both digital and analog encoder interfaces. Up to 11 freely configurable digital I/O are provided for flexibility in automation. Ethernet is used not only with SERCOS III and PROFINET RT but also via parameterization interface. With IndraWorks engineering environment, software tools are provided for commissioning, parameterization, and diagnosis.

Digital Video Recorder supports up to 16 cameras.

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707
Jun 28, 2012 Offering real-time H.264 recording in 4CIF resolution on all channels simultaneously, Model DVR 670 is managed via IntuiKey keyboard, mouse, IR remote control, or front panel. Alongside event capture by triggering inputs or motion detection, unit adds e-mail alarm with 10-second video clip. Bosch Control Center software enables centralized configuration, viewing, and control of multiple recorders, while Bosch DVR Viewer app enables live viewing and PTZ control on iPhone, iPad, or iPod.

Vertical Bag Packager offers multiple bag style options.

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707
Nov 09, 2010 Accommodating food and non-food applications, SVI series can produce bags with corner seal or doy style bags with optional zippers. Intermittent machines do not require height or dosing platform adjustments when package style is changed, which reduces downtime. For production of several standard bag styles, operator changes forming set. SVI 4020 packages bag sizes with 400 mm max width, and SVI 2620 forms bags with 260 mm max width. Both have 10-120 bags/min output rating.

Monitoring Software helps maximize machine uptime.

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707
Oct 12, 2010 Using intelligent IndraDrive units as sensors that monitor status of axis mechanics, Productivity Agent analyzes that information based on drive-integrated motion logic and translates it into actionable information. With program, users can maintain equipment as mechanical conditions warrant, eliminate unnecessary maintenance, and get advanced warning of wear-related damage. Software also incorporates active vibration damping and counteracting function in addition to diagnostics.

Tubular Framing System uses 14 individual components.

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707
Aug 19, 2010 Using square and rectangular strut profiles, EcoShape Framing System enables assembly of workstations, material shuttles, or racks. Made from aluminum, components are completely reusable and recyclable. MTpro planning software enables users to drag and drop components and modules out of product catalog and place them into virtual 3D environment, automatically snapping into correct mounting position. MTpro works in background to calculate order list with all components and accessories.

Machine Control helps speed thermal deburring.

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707
Aug 19, 2010 Based on industrial PC with integrated soft PLC, control for Rexroth P80 and P350 thermal deburring systems is used in combination with proportional gas regulation. Production data for machine can be displayed and evaluated, and with graphical process visualization, control enables users to track current process progression on 15 in. color display. Information and switching states of gas valves are displayed graphically and support technicians during service calls.

Joystick-Based Remote Control facilitates ship maneuvering.

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707
Mar 30, 2010 Marex OS II-3D offers traditional control head as well as remote control that can be extended on request by joystick, which lets captain control entire ship with only one hand. Eliminating need to coordinate drive components individually, 3-axis joystick integrates all propulsion components. Captain can decide at any time whether to use traditional control levers together with lever for bow and stern thruster or to use maneuvering assistant. Modular setup lends to system adaptability.

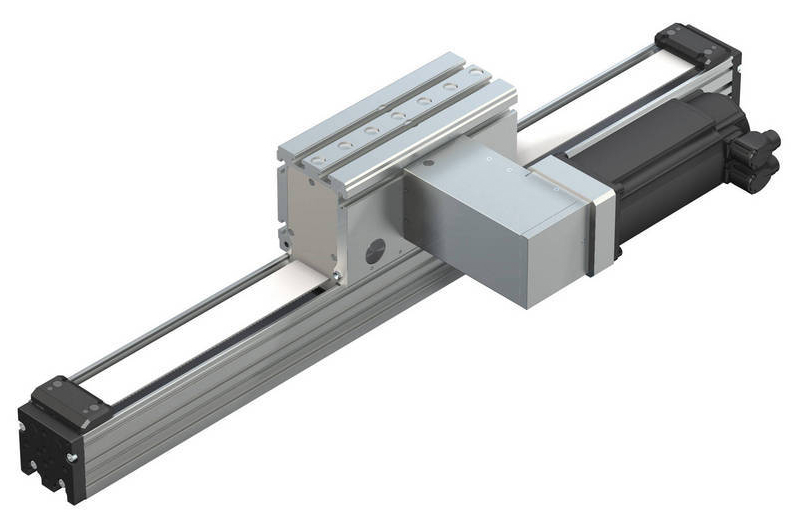

Calculation Software helps configure MGE linear guides.

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707
Mar 30, 2010 Linear Motion Designer LF-MGE helps select right guide bearing sizes and optimum motor/gear combination to ensure long service life for Rexroth MGE linear guides. After users enter process data for dynamics, masses, and forces, software automatically calculates service life of individual guide bearings. Program checks selected size and, if necessary, suggests axes with higher load-carrying capacities. System also tells best way to combine motor and gear to control application at hand.
