Positioning Stages provide Z-axis linear motion.

H2W Technologies, Inc.    Santa Clarita, CA 91350
May 06, 2013 Driven by 3-phase brushless linear motor and guided by pair of precision recirculating linear ball bearings, SR Series features integrated closed loop servo theta stage for 2-axis linear/rotary motion control applications. Open-type positioning stages, providing 24 in. stroke, generate 100 lb of continuous force and 300 lb of peak force. Rotary axis is capable of full 360° rotation. Equipped with 1 micron linear encoder, stages have vertical orientation and include mounting.

XY Positioning Stage features precision bearing system.

H2W Technologies, Inc.    Santa Clarita, CA 91350
Mar 06, 2013 Suitable for high force positioning applications, Model VCS08-700-08-350-CR-01-MC-XY is driven by 3 NCC moving coil type linear actuators. Closed loop system is guided by dual crossed roller bearings on X-Axis and precision linear rail on Y-Axis. Each voice coil, providing 0.80 in. stroke, generates 35 lb of continuous force and 105 lb of peak force, or combined 70 lb continuous force and 210 lb of peak force on X-Axis. One micron resolution linear encoder is included on each axis.

Positioning Stage operates inside vacuum environments.

H2W Technologies, Inc.    Santa Clarita, CA 91350
Feb 05, 2013 Driven by vacuum compatible 3-phase brushless linear motor, SR Series is guided by pair of vacuum compatible recirculating linear ball bearings. Stage has 24 in. stroke and generates 20 lb of continuous force and 60 lb of peak force. Ironless core coil assembly has no magnetic attractive force to stationary magnet assembly which extends life of bearing system. Equipped with 1 micron resolution linear encoder, stage is suited for long stroke applications requiring high speed and acceleration.

Linear Motor Positioning Stage features 12 in. stroke.

H2W Technologies, Inc.    Santa Clarita, CA 91350
Jan 07, 2013 Driven by 3-phase brushless linear motor and guided by pair of precision recirculating linear ball bearings, SR series generates 100 lb of continuous force and 300 lb of peak force. Open type positioning stage includes 1 micron resolution linear encoder and ironless core coil assembly that has no magnetic attractive force to stationary magnet assembly, maximizing life of bearing system. Low overall weight of stage makes it suitable as Y axis in multi-axis system.

Voice Coil Actuator features hole through shaft.

H2W Technologies, Inc.    Santa Clarita, CA 91350
Nov 09, 2012 Suited for controlled sinusoidal motion applications, Model NCM02-05-005-4JBH operates from 1–1,000 Hz for open loop applications and 1–125 Hz for closed loop applications. Precision ground 0.125 in. diameter shaft, guided by jeweled sapphire bushings, has 0.070 in. hole, which is suitable for routing fiber optic cable or air hose. Featuring 0.15 in. stroke, non-commutated, moving magnet type linear actuator generates 0.5 lb of continuous force and 1.5 lb of peak force.

Dual Voice Coil Positioning Stage suits high-force applications.

H2W Technologies, Inc.    Santa Clarita, CA 91350
Oct 24, 2012 As closed loop system driven by 2 NCC moving coil type linear actuators, P/N VCS12-2000-LB-01-C is guided by parallel shafts and linear bushings and can be used for high force positioning applications. Each voice coil has 1.20 in. stroke and generates 100 lb continuous force (300 lb peak). Suited for applications that require quick, short moves with fast settling times, stage includes 1 micron resolution linear encoder and is available with custom strokes and force configurations.

Linear Servo Brush Amplifier drives voice coil linear actuators.

H2W Technologies, Inc.    Santa Clarita, CA 91350

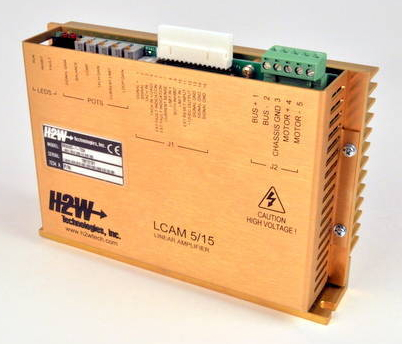

Sep 12, 2012 Preset to match continuous and peak current specifications of any H2W voice coil motor, LCAM 5/15 are designed to drive voice coil linear actuators. DC linear brush-type servo amplifier, engineered for low-noise operation, offers 5 A continuous and 15 A peak output. Operating from +24 to +70 Vdc supply, product has 6.5 kHz (90° phase shift) bandwidth and supports current or velocity mode operation. Amplifier Enable input and Fault Indicator output are standard features.

Balanced Spring Mass Linear Actuator can be operated open loop.

H2W Technologies, Inc.    Santa Clarita, CA 91350

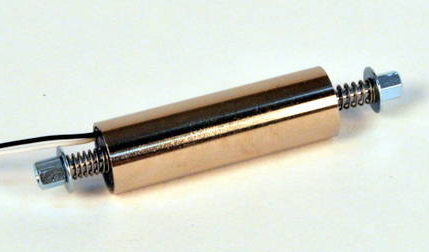

Sep 10, 2012 With 0.15 in. stroke, NCM02-05-005-4JBL voice coil actuator suits controlled sinusoidal motion applications at 1-1,000 Hz (open loop) and 1-125 Hz (closed loop). Moving magnet type linear actuator has precision-ground, 0.125 in. dia shaft guided by jeweled sapphire bushings; 2 compression springs are mounted on either end of shaft. Springs provide centering force for magnet assembly and conserve energy during deceleration phase of sinusoidal motion profile.

Voice Coil Positioning Stage supports oscillatory applications.

H2W Technologies, Inc.    Santa Clarita, CA 91350
May 07, 2012 Used for high force, oscillatory applications requiring sinusoidal motion, Part No. VCS12-1000-LB-C consists of open loop system driven by NCC moving coil type linear actuator and guided by 2 ceramic coated shafts sliding within 2 precision linear bushings. Each voice coil has 1.2 in. stroke and generates 100 lb continuous force (300 lb peak). Solution can be supplied with springs so that voice coil will operate as balanced spring mass system.

Air Bearing Positioning Stage has dual head voice coil design.

H2W Technologies, Inc.    Santa Clarita, CA 91350

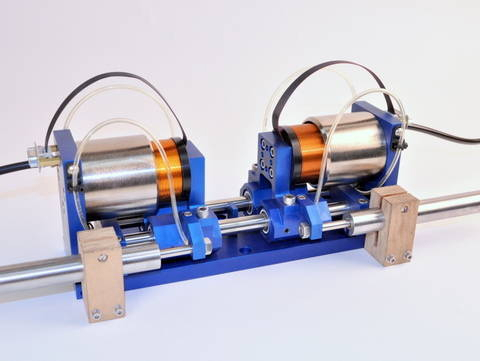

Mar 13, 2012 Supplied with 2 non-contact analog output LVDTs, VCS15-050-AB-LV-2 dual-axis positioning system requires 60 psi clean filtered compressed air and delivers non-contact, frictionless motion. Each head is driven by NCC moving coil type linear actuator and guided by 2 porous carbon air bushings floating on 2 precision parallel shafts. Each voice coil has 1.5 in. stroke and generates 8.4 lb of continuous force (25.2 lb peak). High flex ribbon cable is rated 100,000,000 cycles.
