DIN Rail Cutter replaces hacksaws, band saws, and files.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Jun 05, 2013 Made of hardened steel and designed for years of maintenance-free operation, ASI DIN rail cutter has 4 separate cutting slots to accommodate nominal DIN rail types. Lever action reduces force required by operator, and 1 m gauge with end stop ensures accurate cut lengths from start to finish. Clean cut die design, which eliminates burrs and sharp edges, also eliminates need for secondary filing or grinding, while bench top design allows unit to be located anywhere in shop.

Pluggable 6 A PLC Relay comes in DPDT configuration.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Apr 30, 2013 Measuring 3.71 x 3.15 x 0.56 in., ASI328013 features push-in bridges for signal distribution and locking ejector that facilitates replacement. This 24 Vac/dc model, which mounts on DIN rail, employs heavy-duty, long-life electromechanical relay with contacts rated for AC and DC. Suited for use as interface between PLC and actuators, such as motor, contactor, or solenoid valve, relay accommodates 26–14 AWG wire and features polarity protection diodes as well as LED status indication.

Emergency Stop Switches are available with mushroom head.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Apr 09, 2013 Suited for all types of industrial and process control applications, platinum series includes mushroom head industrial switches with 30, 40, or 60 mm operator head. Additional features include turn key to release, turn to release, and pull to release, and actuator structure is suitable to warrant direct opening operation with mechanical latching for emergency stopping per ISO 13850 and IEC/EN 60947-5-5. Up to 6 contacts can be added, and products meet NEMA 4, 4X, and IP69K ratings.

Analog Signal Conditioner offers 9 programming ranges.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Mar 25, 2013 Housed in modular DIN rail mount package, X756510 Analog Signal Converter/Isolator covers 0–10 V, 0–20, and 4–20 mA input/output ranges. Multi-function 24–240 Vac/Vdc unit features DIP switch programming, 3-way isolation, and self-calibration circuitry that delivers accuracy without manual adjustment.

PCB Terminal Blocks carry 10 A rating.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Mar 12, 2013 Featuring 3.81 centerline spacing, MRT37 and MRT38 Series come in both vertical and right angle orientation, with right and left bottom wire entry, with or without mating flange hardware. Miniature pluggable units are available in 2–20 positions in standard green color, but can be custom ordered in black, blue, orange, red, and grey. Terminal blocks include UL, cUL, VDE, CSV, and IMQ approvals.

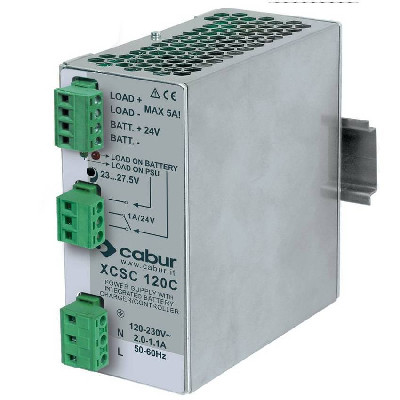

Switching Power Supplies feature integrated battery charger.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Mar 04, 2013 Featuring universal 120–230 Vac inputs and adjustable outputs, Models XCSC120B and XCSC120 are designed for 12 and 24 Vdc output applications, respectively. Units feature Hiccup at overload limit with auto reset, auto resettable electronic fuse for protection against battery short circuit, and threshold-relay to guard against battery deep discharge. Designed for sealed lead batteries up to 15 Ah, power supplies feature aluminum housing and require just over 2 in. of rail space.

USB and RJ45 Interface Ports serve mission-critical applications.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Feb 27, 2013 Platinum Series USB and RJ45 communication interface ports are rugged panel connectors suited for industrial environments where mission-critical data transmission is necessary between machines, production lines, and control modules. While USB is available in A-to-A and A-to-B connections, RJ45 component is 10 Gigabit IEEE 802.3an-2006. Both products use OTS cables and are capped when not in use to maintain IP65 rating. Plastic materials are resistant to oils, solvents, and hydrocarbons.

Thermocouple Terminal Block eliminates cold junction risk.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Feb 20, 2013 Measuring 1.86 x 1.60 x 0.22 in., TC500 accepts thermocouple leads stripped of their insulation to .75 in. Two wires overlap when inserted, and leads are clamped together on both sides of thermocouple block for optimal electrical connection. This is accomplished without requiring any other compensation metals or contacts, eliminating the risk of cold junctions. Along with 15 A and 600 V ratings, features include compatibility with 20-14 AWG wire sizes.

Pushbuttons and Selectors offer tool-free installation.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Feb 13, 2013 Able to mount in any position, .22 mm Platinum Series features actuator sealing gasket that grips to mounting surface, and anti-rotation fastener which collapses inside gasket to allow fitting into round drill holes. Clearly visible reference indications facilitate snap-on fitting between actuator and mounting adapter. With IEC IP66, IP67, IP69K, and UL Type 4X ratings, plastic materials operate from -25 to +70°C and are resistant to oils, solvents, and hydrocarbons.

Spring Clamp PCB Terminal Blocks withstand vibration.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Feb 11, 2013 Carrying up to 14 A, MRT40 Series allows for wire to wire applications with male plug in 5.08 mm spacing, 2–16 positions, with or without screw flanges. MRT30 Series comprises female plug in 5 mm spacing, 2–24 positions, with or without screw flange. Featuring UL, cUL, VDE, CSV, and IMQ approvals, terminal blocks are available with accessory key/activation code that opens spring, eliminating need for screwdriver and facilitating cross mating as well.
