Benchtop Presses feature ram equipped with anti-rotation.

Beckwood Press Co.    Saint Louis, MO 63026 2405
Jun 16, 2008 Able to maintain consistent die alignment, DJ Series of 3-40+ ton hydraulic and hydro-pneumatic presses suit assembly, compression, punching, trimming, blanking, stamping, and coining applications. They can be equipped with relay-based controls or PLC control system featuring operator interface and digitally programmable pressure switch. Presses can be modified for specific applications that need customized stroke, shut height, bed size and/or control systems.

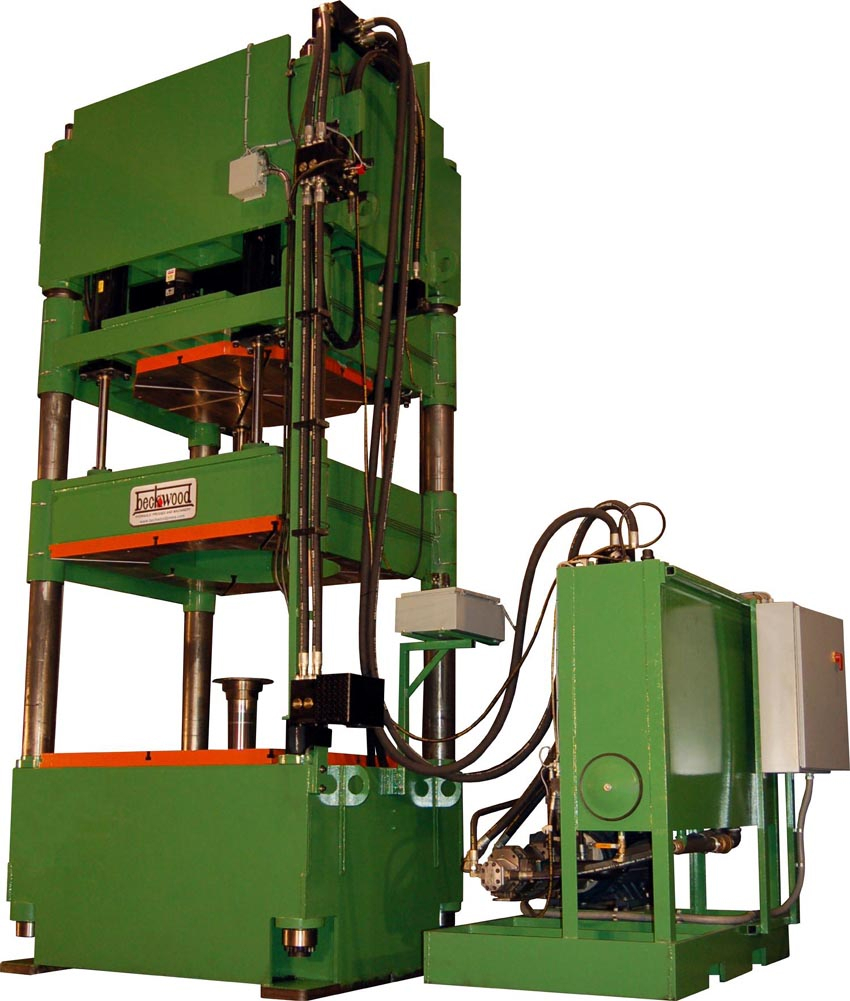

Hydraulic Tank Head Forming Press features multi-ram design.

Beckwood Press Co.    Saint Louis, MO 63026 2405
May 06, 2008 Equipped with independently controlled clamp and draw rams, Hydraulic Tank Head Forming Press can be customized for wide range of specifications including tonnage, bed size, speed, and stroke. It features bed cushion which can be custom engineered for standard or dynamic cushion control that includes independent travel zones, utilizing recipe function on PLC interface.

Tank Head Forming Press features multiram design.

Beckwood Press Co.    Saint Louis, MO 63026 2405
May 02, 2008 Hydraulic Tank Head Forming Press is equipped with independently controlled clamp and draw rams. It features bed cushion that can be engineered for standard or dynamic cushion control per user's requirements. Dynamic cushion control includes independent travel zones, utilizing recipe function on PLC interface. System can be customized for wide range of specifications including tonnage, bed size, speed, and stroke.

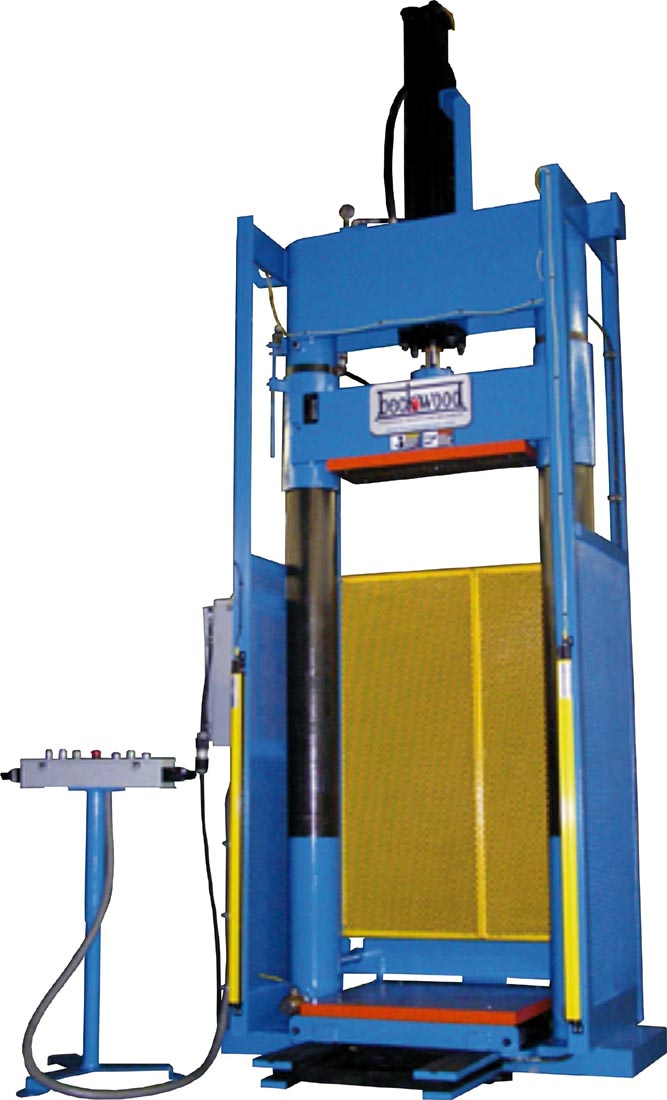

Assembly Press suits large stroke and daylight applications.

Beckwood Press Co.    Saint Louis, MO 63026 2405
Mar 18, 2008 Featuring 25 ton capacity, Assembly Press incorporates 2-post frame with 10 in. bed height, and is equipped with bed shuttle with 2 spring loaded roller tracks. It comes with 54 in. stroke, 87 in. daylight, 34 x 34 in. bed, programmable Allen Bradley PLC control system, and pedestal mounted dual ergonomic zero force touch buttons. Press also features 50 in. light curtain/bolt and fixed expanded metal guarding for 4-sided access protection.

Hydraulic Presses offer presence sensing device initiation.

Beckhood Press Company    MO, MO 63026-2405
Jan 18, 2008 Presses are equipped with PSDI (Presence Sensing Device Initiation) capabilities, which work with control systems using electro-optical (light curtain) guarding to activate press cycle. After photoelectric barrier is broken once by press operator to remove finished part and again upon placement of new part, sensors detect that the point of operation is clear of operator's hands or other objects, and press automatically cycles.

Hydraulic Presses are equipped with PSDI capability.

Beckwood Press Co.    Saint Louis, MO 63026 2405
Jan 09, 2008 Available with capacities from 2-2,000+ tons as well as various capabilities and options, hydraulic presses are designed to specific applications in any industry. PSDI (Presence Sensing Device Initiation) control system involves use of electro-optical (light curtain) guarding to activate press cycle, promoting productivity and safety while reducing operator fatigue by eliminating need for 2-hand touch button depression-based machine cycling.

Hybrid Servo Motion Presses range from 5 to 150+ tons.

Beckwood Press Co.    Saint Louis, MO 63026 2405
Jan 15, 2007 Offering both position and force control, Accu-Flex Servo Motion Presses utilize servo motion control instead of servo hydraulics. They are built standard with touch screen operator interface that has fully programmable control systems, Go/No-Go options, and on-the-fly part verification. Presses are suitable for production as well as research and development or laboratory environments.

Hybrid Press utilizes servo-motion control.

Beckwood Press Co.    Saint Louis, MO 63026 2405
Dec 24, 2004 Offering flexibility for position and force control, Accu-Flex is equipped with blanking, coining/forging and embossing, knuckle, draw, and draw with dwell base motion profiles. All cycle parameters are programmed and infinitely adjustable. Programming also includes go/no-go options for part quality certification and on-the-fly part verification. Available in 5–150 ton capacities, press includes precision ram position and pressure control.

Straight-Side Press offers cylindrical guidance.

Beckwood Press Co.    Saint Louis, MO 63026 2405
Apr 09, 2004 Suited for demanding applications, SSE series presses combines straight side end frame design with elongated cylindrical guide bushings. Hybrid design serves to unitize frame and offer structural integrity. Applications include stamping, progressive die use, and metalforming industries.

Hydraulic Presses range from 2 to 2,000 tons.

Beckwood Press Co.    Saint Louis, MO 63026 2405
Jan 12, 2004 Hydraulic Presses, engineered to suit customer specifications, feature heavy-duty steel weldments and guiance system that produces minimal deflection.
