Control Panel monitors gas detectors in Zone 1/2 hazardous areas.

Crowcon Detection Instruments Ltd.    Erlanger, KY 41018
Mar 11, 2013 Installed in Atex Zone 1 and 2 hazardous areas, flameproof Vortex FP Compact monitors toxic and flammable gas detectors or fire detectors. Size suits confined spaces, and all daily operations can be performed without opening panel's enclosure. Gas levels, alarms, and faults are viewed through window, and all system functions are accessed via buttons or included Crowmag magnetic key. Rated IP66 for dust and water ingress, panel contains up to 16 relays and can also monitor up to 12 detectors.

Gas Tester ensures gas detector complies with regulations.

Crowcon Detection Instruments Ltd.    Erlanger, KY 41018
Oct 03, 2012 Capable of testing up to 4 gases in 60 seconds, T3 Gas Tester ensures that T3 multi-gas detector complies with national/regional safety regulations and individual company requirements. When T3 is inserted into Gas Tester, T3 automatically switches into Bump mode and either passes or fails. Once test is complete, T3 is removed and bump result is accepted by user and automatically logged in T3. Tester can bump for flammable, oxygen, carbon monoxide, hydrogen sulphide, and carbon dioxide sensors.

Infrared Gas Detector is immune to poisoning.

Crowcon Detection Instruments Ltd.    Erlanger, KY 41018
Dec 12, 2008 Designed to detect liquid petroleum gas hazards before concentrations reach flammable levels, Xgard IR LPG features detection range of 0-100% lower explosive limit. Unlike catalytic pellistors, IR sensor detects flammable gas in inert backgrounds and is not damaged by high gas concentrations. Available in polyester-coated aluminum or 316 stainless steel enclosure, sensor offers life expectancy of 5 yr. Xgard IR LPG is Exd flameproof rated and UL approved for hazardous areas.

Laser Methane Detector is ATEX-approved and weighs 600 g.

Crowcon Detection Instruments Ltd.    Erlanger, KY 41018
Aug 20, 2008 Measuring 70 x 179 x 42 mm, LaserMethane® mini uses Tunable Diode Laser Absorption Spectroscopy to detect ppm levels of methane from distances up to 100 m. Portable, handheld solution features automatic ranging, color LCD, 5-hr battery, and IP54 construction. Zone 1 area rating allows for on-plant use as well as detecting escapes in hard to reach or inaccessible areas. Unit performs self-check on start-up and verifies operation and calibration of laser diode.

Gas Detector can monitor up to 4 gases at once.

Crowcon Detection Instruments Ltd.    Erlanger, KY 41018
Jun 17, 2008 Allowing safe shutdown maintenance work in plants and refineries, Detective + gas detector has over dozen gas sensor options, with infrared sensors for flammable gas that are immune to poisoning effects. If dangerous gas level is detected, device warns with wailing 104 dBA siren and flashing, high intensity LED beacons visible from all angles. Used individually or in groups, it features 60 hr of battery life, 48 char text display, and -20 to +40°C operating temperature range.

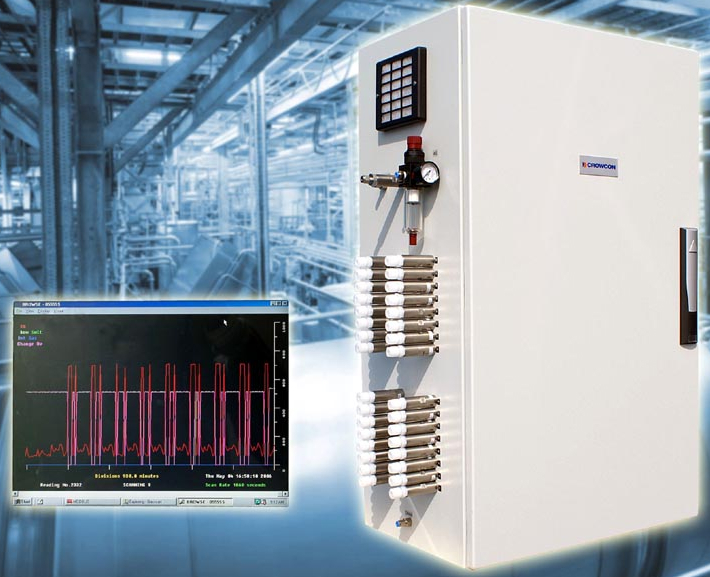

Monitoring System surveys toxic and flammable gases.

Crowcon Detection Instruments Ltd.    Erlanger, KY 41018
Jul 10, 2007 Eliminating need for multiple fixed detectors, PGSi Programmable Monitoring System simultaneously monitors up to 4 different gases from up to 32 individual sampling points. Each sample line can be up to 3,280 ft long, and sample times for each monitoring point, which can be sequenced in any order, are individually adjustable. Controlled by PC using Windows XP-based software, system displays and logs individual sample locations, gas levels, and alarms in tabular or graphical formats.

Fixed Gas Detectors protect personnel and equipment.

Crowcon Detection Instruments Ltd.    Erlanger, KY 41018
Mar 30, 2007 Designed to protect against flammable and toxic gases, including methane and carbon monoxide, Xgard Detectors alert personnel to emergency conditions. Units may also be fitted with sensor that alerts workers of oxygen deficiency in enclosed environments. Constructed of marine-grade aluminum with polyester coating, detectors are suited for wastewater treatment facilities, petrochemical refineries, parking garages, and general processing plants.

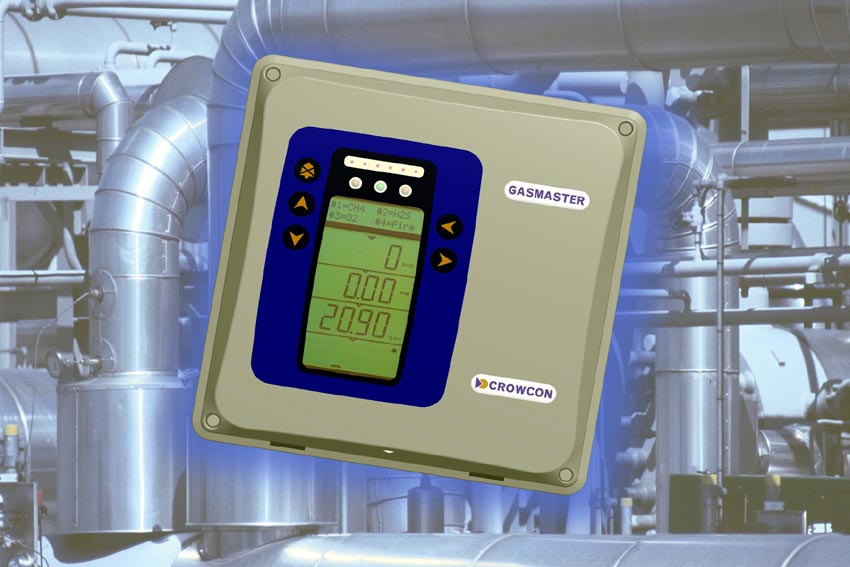

Control Panel monitors data from gas and fire detectors.

Crowcon Detection Instruments Ltd.    Erlanger, KY 41018
Jan 18, 2007 Gasmaster control panel monitors up to 4 channels and interfaces with any combination of flammable and toxic gas detectors, as well as oxygen and fire detectors. Each channel handles 2 levels of alarm. Wall-mounted device displays all levels on multilingual LED, while analog outputs and RS-485 digital communications enable connection to PLC/DCS/SCADA systems, PC, chart recorder, or data logger. Featuring 85 dB multi-tone alarm, unit includes battery backup in case of power failure.

Laser Device measures methane from up to 490 ft.

Crowcon Detection Instruments Ltd.    Erlanger, KY 41018
Dec 12, 2006 Laser Methane remote handheld detection device detects methane at concentrations between 10-10,000 ppm/m in less than 0.1 sec, even through glass. Able to be fixed in permanent position, portable, compact device comprises of single gun unit with no additional parts or battery packs. LED light and buzzer give visual and audible signals when methane is detected, and built-in test cell self-tests instrument at switch-on and during use.

Toxic Gas Monitor suits harsh environments.

Crowcon Detection Instruments Ltd.    Erlanger, KY 41018
Mar 23, 2006 Outfitted with high-impact plastic enclosure, Environmental Sampling Unit (ESU) monitors high-density, toxic gases such as chlorine and sulphur dioxide in areas where positioning of conventional sensor is not practical. ESU chamber is fitted with Xgard detector, and electric fan draws air into chamber via sampling pipe. One unit can monitor up to 36 ft of sampling pipe from single point, along entire floor space, or areas subject to flooding.
