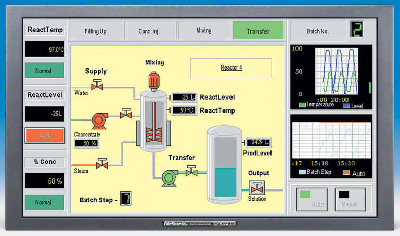

NEMA 4 Displays may be used as in-plant digital signs.

CyberResearch, Inc.    Branford, CT 06405 2932
Oct 07, 2009 Available for universal or flush panel mounting in landscape or portrait orientation, CyRAQ® 40 monitors feature 40 in. screen and WXGA resolution. Optional AR-Bonding(TM) treatment ensures clear, sharp, high-contrast images, even when light shines directly on screen, and NEMA 4 stainless steel bezel facilitates side-by-side mounting of multiple monitors on display walls. Built with heat-sinking aluminum chassis, CyRAQ 40A and 40SB respectively offer 700 and 1,000 nits of brightness.

Rack Mount Chassis is acoustically treated to reduce noise.

CyberResearch, Inc.    Branford, CT 06405 2932
Oct 02, 2009 Featuring internal sound dampers that reduce chassis noise by 24-28 dB, RCQ MX-400 3U rack mount chassis incorporates advanced thermal monitoring that detects temperatures at 2 points and tracks performance of up to 8 cooling fans. Motherboard-ready chassis has front access to 6 shock-mounted drive bays: four 5.25 in. and two 3.5 in., and includes DVD-RW drive and 2 internal vertical 3.5 in. bays. Depending on selected motherboard, 5-7 expansion slots are offered.

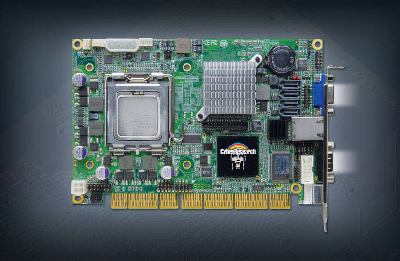

Single Board Computer supports four 2.6 GHz CPUs.

CyberResearch, Inc.    Branford, CT 06405 2932
Sep 07, 2009 Measuring 7.56 in. long with PISA bus connector, half-length Model CZMD accepts Pentium® 4, Core(TM) 2 Duo, or Core 2 Quad CPUs. It features Intel's Q35 chipset, which supports FSB speeds up to 1,333 MHz, and 3.0 Gb/s SATA ports, which can be configured for RAID 0, 1, 5, or 10 arrays. Other features include 12 MB of Level 2 cache, dual DVI and VGA video, Gigabit Ethernet, RS-232/422/485, PS/2 keyboard and mouse ports, 8 DIO ports, and 4 USB 2.0 ports.

DIO Boards resist high temperatures and offer sink current.

CyberResearch, Inc.    Branford, CT 06405 2932
Aug 05, 2009 Operating at temperatures up to 158°F and offering sink current of 24 mA, HDIO 24L digital boards are suited for I/O applications in industrial areas near furnaces and heat-treating facilities. They provide two 8-bit and two 4-bit ports, programmable by port, and come with both standard and low profile backplates. Boards emulate Mode 0 of standard 8255 PPI chips for conventional programming. PCI goldfingers are slotted for both 3.3 and 5 V inputs.

Digital I/O Board supports PCI Express bus.

CyberResearch, Inc.    Branford, CT 06405 2932
Jul 23, 2009 Divided into eight 8-bit ports and eight 4-bit ports, CYDIO 96HE features on-board pull-up/pull-down resistor networks for each port. Digital outputs can source 15 mA or sink 64 mA, so additional buffering is not needed to drive external devices. High-density, logic-level board includes Universal Library, Universal Library for LabVIEW®, and other utilities for installation, calibration, and testing.

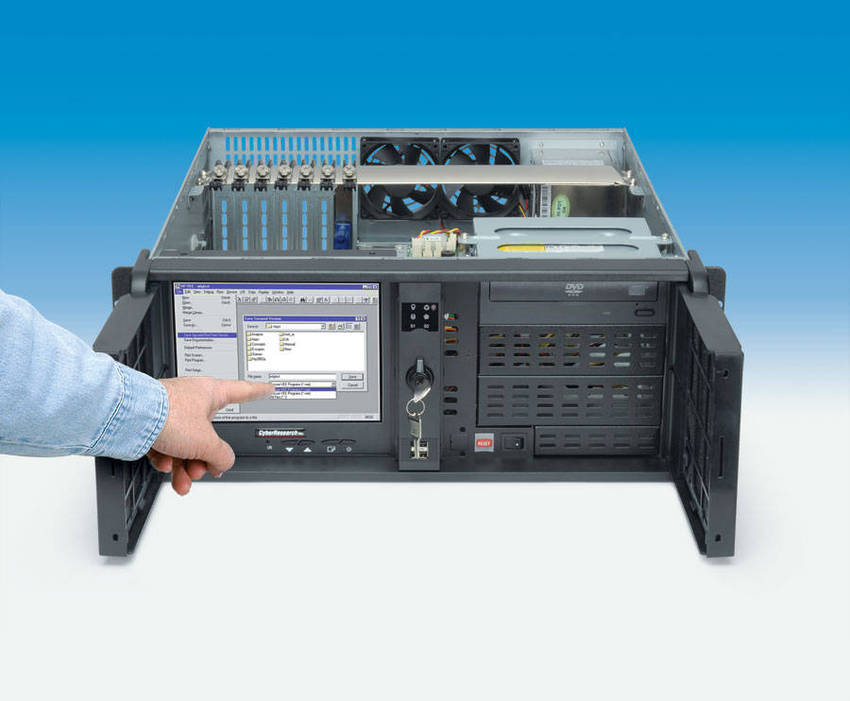

Rack Mount 4U Chassis are suited for shop floor.

CyberResearch, Inc.    Branford, CT 06405 2932
Jul 15, 2009 CyberResearch® RDD 08 4U chassis includes 8 in. analog-resistive touchscreen, LCD monitor, and 500 W power supply. Unit comes with CD-RW/DVD drive and 320 GB 3.5 in. SATA HDD. Versions with MXSV motherboard offer 5 PCI slots, x8 PCIe slot and x16 PCIe slot, and memory of 1 GB of DDR2 RAM, upgradeable to 8 GB. Motherboard accepts Pentium® 4, Core(TM) 2 Duo, or Core 2 Quad CPUs, and features Intel Q35 chipset supporting front-side bus speeds up to 1,333 MHz.

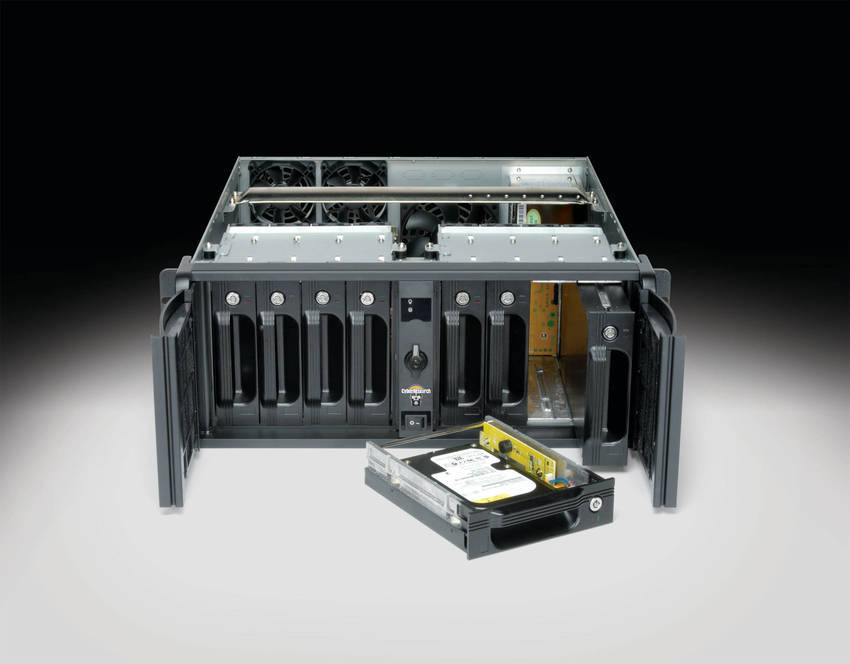

Chassis allows for mounting 8 SAS or SATA II hard drives.

CyberResearch, Inc.    Branford, CT 06405 2932
Jul 10, 2009 Featuring shock-mounted hot-swap lockable pull-out drive frames at front, 4U DDM 08A-400 expansion chassis supports any combination of 8 Serial Attached SCSI (SAS) or SATA hard drives under RAID 0, 1, 5, or JBOD configurations. Up to eight 3 Gb/sec drives are powered by chassis' 400 W power supply. Shallow-depth chassis is cooled by 12 fans, one 40 mm fan for each drive bay, one 120 mm fan and two 80 mm fans on back of chassis, and one 120 mm fan on power supply itself.

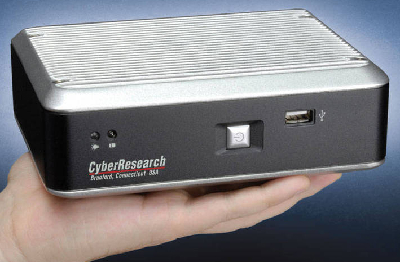

Rugged Miniature Computers operate in complete silence.

CyberResearch, Inc.    Branford, CT 06405 2932
Apr 15, 2009 Suited for thin-client applications where space is limited, MEPC series comes in aluminum cases that promote cooling without fans. Computing power is provided by 1.2 GHz VIA Esther CPUs, which are suitable for handling firewalls and mail/print server applications. Palm-sized MEPC 1200-004 has 4 GB solid-state drive, MEPC 1222-004 adds dual 10/100 Mbps Ethernet ports, MEPC 1226-004 adds 6 USB 2.0 ports, and MEPC 1220-080 has 80 GB HDD (no DOM drive).

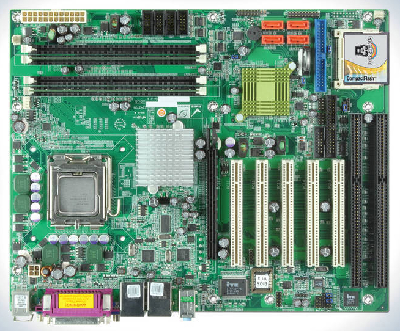

Motherboard supports PCIe, PCI, and ISA cards.

CyberResearch, Inc.    Branford, CT 06405 2932
Apr 10, 2009 Suited for updating legacy applications, MXGE provides one PCIe x16 slot, 4 PCI (5 V) slots, one ISA slot, and another slot that supports PCI (5 V) or ISA boards. Available CPUs include 2.1 GHZ Core(TM) 2 Duo CPU with 1,066 MHz FSB or 3.4 GHz Pentium® 4 CPU with 800 MHz FSB. To further foster connectivity, board has 6 COM ports, 4 USB ports, and 2 gigabit LAN ports. Both models have 1 GB DDR2 RAM and support up to 3 GB. Included Windows® XP OS can be upgraded to 32- or 64-bit Vista.

DAQ Modules offer simultaneous sampling.

CyberResearch, Inc.    Branford, CT 06405 2932
Mar 24, 2009 CyberResearch® multifunction UCDAS 04M1 modules feature 4 differential analog inputs running at speeds up to 1.3 MHz, while UCDAS 02M2 units have 2 inputs running at up to 2 MHz. Both USB DAQ modules include 32 DIO lines and 2 x 32-bit counters running at up to 20 MHz. If more than 4 inputs are needed, multiple modules can be synchronized via external trigger or clock connectors. Rugged, compact modules provide 2 ns skew and suit transient analysis and other high-frequency applications.
