Latest New Product News from E-Switch Inc.
Illuminated Pushbutton Switches offer RGB LED color options.E-Switch Inc. Brooklyn Park, MN 55428 1514
Jun 03, 2013 Available with SPDT or DPDT circuit options and momentary or latching options, ULP Series is available with square sculptured, square flat, rectangular flat, panel mount, or large sculptured caps. Units feature contact rating of 0.5 mA, 25 Vdc for silver and 0.4 VA max at 28 Vac/Vdc for gold. Insulation resistance is 100 MΩ min at 500 Vdc and dielectric strength is 2,000 Vac. Operating from -20 to 70°C, switches are suited for consumer electronics, medical devices, instrumentation, and kiosks.

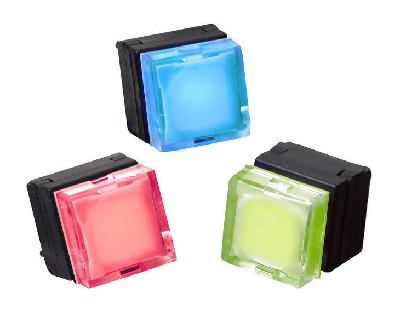

LED Illuminated Pushbutton Switch offers RGB color options.E-Switch Inc. Brooklyn Park, MN 55428 1514
May 17, 2013 Available with either SPST or DPST circuit options, LP6 series features 15 mm square sculptured cap with RGB LED color options. Momentary switch has contact rating of 12 mA/12 Vdc, contact resistance of 50 mΩ max, and dielectric strength of 500 Vac. Operating from -20 to 70°C, switch is suited for consumer electronics, medical devices, audio/visual equipment, instrumentation, vending machines, and kiosks.
Tactile Switch offers operating life of 10 million cycles.E-Switch Inc. Brooklyn Park, MN 55428 1514
Apr 19, 2013 Rated to IP67 standards, TL6200 Series comes in both SMT and through hole termination options and offers multiple actuator lengths. Sealed SPST switch features contact rating of 50 mA, 24 Vdc and initial contact resistance of 30 mΩ max. Capable of operating in temperatures from -40 to 85°C, switch is suited for consumer electronics, medical devices, A/V equipment, computer peripherals, instrumentation, and telecommunications applications.
Anti-Vandal Switch offers dot and ring illumination options.E-Switch Inc. Brooklyn Park, MN 55428 1514
Mar 18, 2013 Measuring 16 mm in diameter and rated to IP65 standards, Model PV6 is available with high actuator option, enabling actuation by gloved hands or large fingertips. Unit is also available with black anodized aluminum finish and pilot indicator option with no internal switch contacts. Providing mechanical life of 1,000,000 cycles and electrical life of 50,000 cycles, switch has SPST Off-(On) contact arrangement, contact rating of 2 A at 48 Vdc, and maximum contact resistance of 50 mΩ.

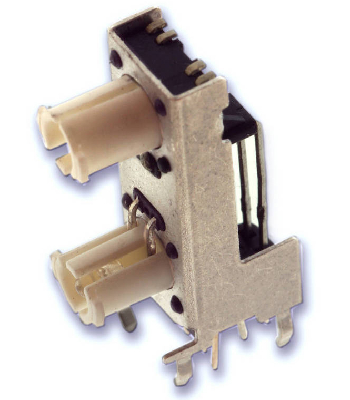

Tact Switch offers dual stacked LED illumination.E-Switch Inc. Brooklyn Park, MN 55428 1514
Jun 29, 2012 Featuring right angle design, TL3253 Series provides SPST, normally open contact arrangement with contact rating of 50 mA at 12 Vdc and contact resistance of 100 mW. Unit offers LED colors in blue, red, green, yellow, or white. Operating from -20 to 70°C for up to 500,000 cycles, illuminated tact switch is suitable for audio/visual market, computer peripherals, instrumentation, telecommunications, and medical equipment.

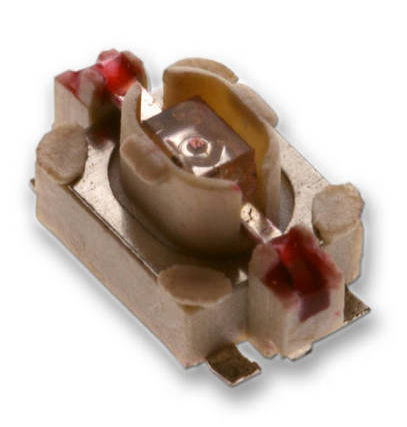

Illuminated Tact Switch has ultra-miniature, SMT design.E-Switch Inc. Brooklyn Park, MN 55428 1514
May 24, 2012 Configured with SPST, NO contact arrangement, 5.6 x 3.5 mm TL3210 series offers LED illumination in blue, red, green, yellow, and white as well as bi-color red/green. Products have 100,000 life cycle expectancy, contact rating is 50 mA @ 12 Vdc, and contact resistance of 500 mohm max. Respectively, values for insulation resistance and dialectic strength are 100 Mohm min at 100 Vdc and 250 Vac for 1 min. Switches offer 0.2 mm ± 0.1 mm of travel and require operating force of 160 gf ± 50 gf.

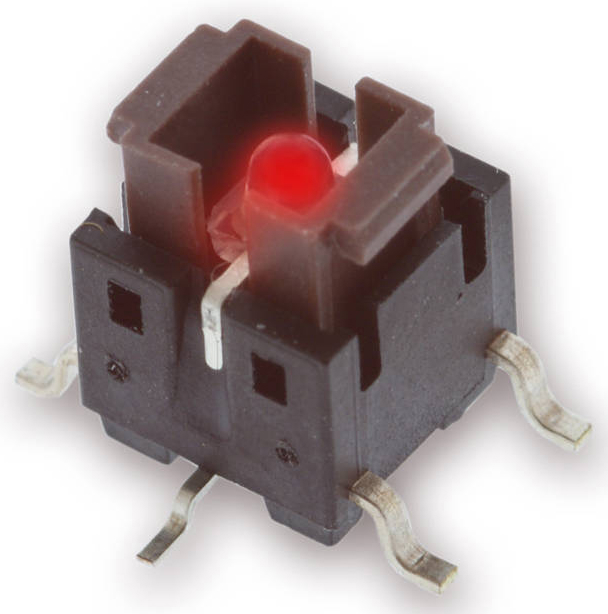

Illuminated Tact Switch features surface mount design.E-Switch Inc. Brooklyn Park, MN 55428 1514
May 01, 2012 Supplied with SPST, NO contact arrangement, TL3240 series has travel of 0.2 mm ±0.1 mm; operating force ratings of 100, 160, and 260 gf, to within ±50 gf; and life expectancy of 200,000 cycles. LED illumination is available in blue, red, green, and yellow, and optional square or rectangle caps are offered in black, red, blue, ivory, green, and yellow. Contact rating is 50 mA @ 12 Vdc, contact resistance is 100 mohm max, and insulation resistance is 100 Mohm max at 500 Vdc.

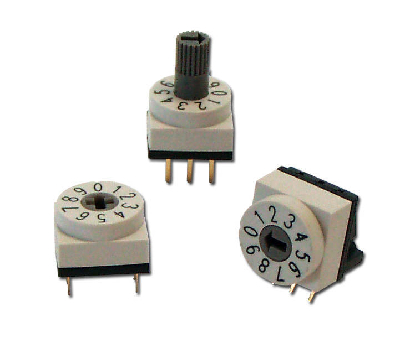

Rotary DIP Switch offers IP67 seal protection.E-Switch Inc. Brooklyn Park, MN 55428 1514
Jan 10, 2012 Offering choice of 4, 6, 8, 10, or 16 positions, RDT Series features contact rating of 42 Vdc, contact resistance of 80 mW, and insulation resistance of 100 MW. Switch provides through hole or SMT termination with operating temperatures of -40 to 85°C and -60 to 125°C, respectively. Available with right angle or vertical mounting options, switch has life expectancy of 10,000 steps.
Rotary Dip Switch offers IP67 sealing protection.E-Switch Inc. Brooklyn Park, MN 55428 1514
Nov 29, 2011 Offering choice of 10 or 16 positions, RDM Series features contact resistance of 80 mW, insulation resistance of 100 MW min at 250 Vdc, and dielectric strength of 250 Vac for 1 minute. Contact rating is 42 Vdc, 100 mA switching and 42 Vdc, 400 mA non-switching. Operating from -60 to 125°C, switch comes with gold contacts and has life expectancy of 25,000 steps.

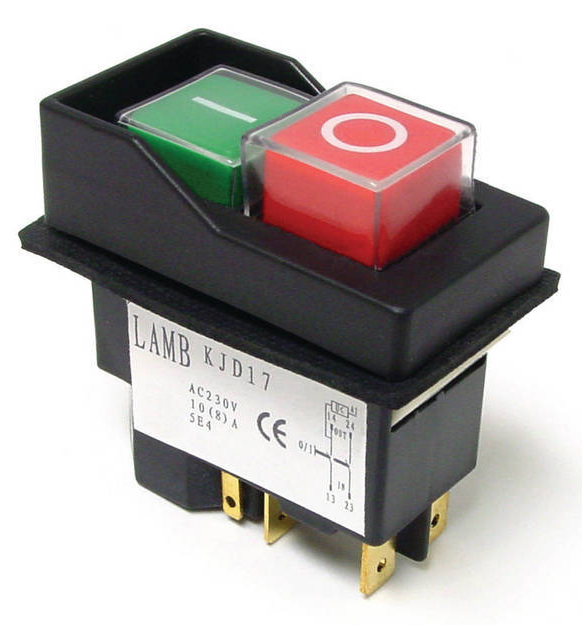

Heavy-Duty Pushbutton Switch integrates safety protection.E-Switch Inc. Brooklyn Park, MN 55428 1514
Sep 29, 2011 Constructed with industrial design and PVC cap for dust and water protection equivalent to IP54, KJD17 series suits safety-conscious industrial applications. UL-Listed pushbutton switch has 10,000 cycle life expectancy and internal electromagnet that provides automatic safety protection against power outages and restarts. Contact ratings include 16 A @ 12 Vac, 16 A @ 220/240 Vac, ½ hp 120 Vac, and 2 hp 220/240 Vac. Dielectric strength is 1,500 Vac for 1 min.
Click below for more Product News from E-Switch Inc.
Other Company News From E-Switch Inc.
Aug 12, 2011
E-Switch's PP1 Series Pushbutton Switch
May 28, 2010
E-Switch Announces a Full Line of Anti-Vandal Switch Products
Feb 20, 2009
E-Switch Announces Acquisition of Lamb Industries
Oct 03, 2008
E-Switch Introduces 5 New Slide Switches
Nov 26, 2007
E-Switch Announces New Illuminated Pushbutton Options
May 02, 2007
E-Switch, Inc. Signs Astron Electronics, Inc. to Represent Them in Southern California
Dec 05, 2006
E-Switch Announces New PB1973 Series Illuminated Push Button Switches
