Case Hardened Racks optimize linear applications.

Wittenstein, Inc. (formerly Alpha Gear Drives, Inc.)    Bartlett, IL 60103
Jun 22, 2011 Part of High Performance Linear System, Performance Class Racks partner with gearbox/actuator and pinion for optimal efficiency. Performance version features standard hole pattern, while High Performance model has hole pattern optimized for high feeding forces. Providing strength at tooth root of racks, hardening process enables racks to resist high stresses.

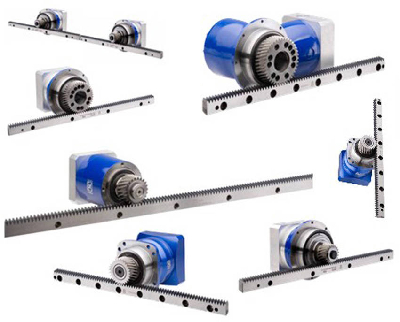

Rack and Pinion System delivers efficient force transfer.

Wittenstein, Inc. (formerly Alpha Gear Drives, Inc.)    Bartlett, IL 60103
Apr 13, 2011 Engineered for optimal transfer of maximum feeding forces, RP+ provides modular, standardized rack and pinion system. Rack assembly is designed for maximum power transmission with minimum weight and noise. Gearbox and pinion components increase allowable torques, while forces produced by meshing of rack and pinion teeth are controlled effectively to promote system rigidity and positioning accuracy.

Washdown Worm Gear suits food processing applications.

Wittenstein, Inc. (formerly Alpha Gear Drives, Inc.)    Bartlett, IL 60103
Apr 07, 2011 Available in washdown option to suit applications requiring extra environmental protection, alpha V-Drive® servo worm gearbox comes in VDS (shaft output) and VDH (hollow output) gearhead versions. Each has stainless-steel interfaces to promote service life in washdown applications, and accessories are also available in stainless steel. Food-grade lubrication option allows use in food and packaging industry without sacrificing torque capacity, which is maintained at 100%.

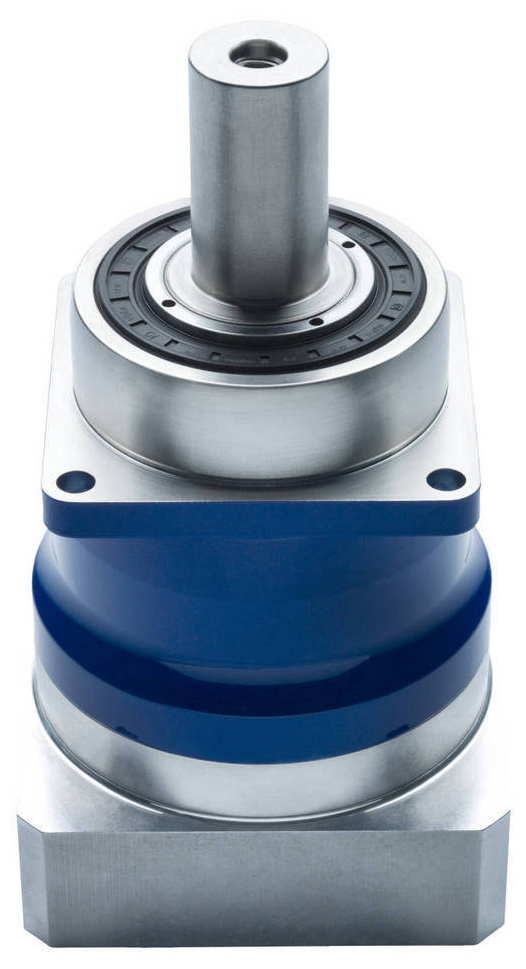

Servo Gearbox promotes machine efficiency.

Wittenstein, Inc. (formerly Alpha Gear Drives, Inc.)    Bartlett, IL 60103
Dec 22, 2010 Featuring 3-100 ratio and torsional backlash of less than 1 arc min, alpheno® gearbox is rated for 2,800 Nm max acceleration torque, 3,360 Nm peak alpha torque, and 6,000 rpm max input speed. Product delivers 97% efficiency at full load and also comes in HIGH SPEED® version as well as with hollow shaft at output. Option with optimized mass inertia promotes optimal energy efficiency.

High-Torque Actuators are optimized for speed and strength.

Wittenstein, Inc. (formerly Alpha Gear Drives, Inc.)    Bartlett, IL 60103
Aug 12, 2010 With compact design that couples alpha TP+ 300/500 gearbox and 220 series motors, TPM+/TPM+ High Torque sizes 300/500 are designed for optimal rigidity and torque. Actuators deliver torque up to 10,000 Nm and are available with optional strengthened output bearing (special gear housing).

Right Angle Bevel Gearbox features integrated pulley drive.

Wittenstein, Inc. (formerly Alpha Gear Drives, Inc.)    Bartlett, IL 60103
Jun 14, 2010 Optimized for linear drives and available with flexible output variants, LPBK+ Right-Angle Spiral Bevel Belt Drive consists of LPK+ right angle gearbox with integrated pulley drive that provides linear drive solution with easy motor mounting. It is available in both standard and IP64 food-grade versions, in ratios and sizes to meet application needs.

Intelligent Linear Actuator offers multiple options.

Wittenstein, Inc. (formerly Alpha Gear Drives, Inc.)    Bartlett, IL 60103
Feb 09, 2010 Providing linear and rotary motion solutions, Ternary Actuator is available with options that can be mixed-and-matched to suit application demands. Ethernet/IP control interface supports 10/100 MB communication, and analog position control interface offers 0-10 Vdc or 4-20 mA input. Rated to IP40, actuators are available as 200 and 400 W rotary servo versions with all standard Fieldbus interfaces, 110 or 220 Vac direct power input, and 100 mm frame size motor.

Inline Gearbox is offered in low-friction version.

Wittenstein, Inc. (formerly Alpha Gear Drives, Inc.)    Bartlett, IL 60103
Jan 06, 2010 Intended for high-speed applications requiring extended-duty operation, L-Version of alpha SP+ HIGH SPEED gearbox features optimized components, processes, and specifications for minimal friction/heat generation. It is available for HIGH SPEED versions of SP+100, SP+140, and SP+180 and features keyed/involute output shaft. Shaft-mounted solution, featuring helical gear technology, is available with integrated sensor technology and ATEX Class I, Division 1 certification.

Racks and Pinion Systems offer options for flexibility.

Wittenstein, Inc. (formerly Alpha Gear Drives, Inc.)    Bartlett, IL 60103
Nov 20, 2009 Precision (Premium), Smart, and Economy Class Racks are available with various options to increase application flexibility and functionality. In addition to 2 m rack variants, including 0.35, 0.6, 1.3, or 1.75 m, options include unique hole patterns, with and without pin holes; blank racks without fastening holes; and unique tooth quality for racks up to 2m (std=Q6). Hole pattern, such as thread holes, and hole position variations, such as thread hole in back, are also available.

Servo Worm Gears feature optimized hollow-flank teeth.

Wittenstein, Inc. (formerly Alpha Gear Drives, Inc.)    Bartlett, IL 60103
Oct 22, 2009 Available in 050, 063, 080, and 100 sizes, V-Drive+ offers hollow shaft, smooth/keyed/involute shaft, and flange output options. Units feature torsional backlash of less than 3 arc-min and efficiencies up to 97%. For low duty applications, V-Drive economy comes in 050 and 063 sizes with hollow shaft and shaft/smooth/keyed output options. Torsional backlash is less than 8 arc-min.
