Dock Seal incorporates light-blocking header.

Frommelt Products Corp.    Milwaukee, WI 53224 9520
Sep 24, 2012 Insulator Dock Seal with Light-blocking Header maximizes sealing efficiency and minimizes daylight leaks with light-blocking header that has rows of layered, horizontal pleats which conform around protrusions as trailer backs in to dock. All trailer and forklift contact surfaces are reinforced with Durathon™ fabric over flexible vinyl base fabric for wear resistance. Also, corners are reinforced with layers of Durathon fabric and flexible high-molecular weight polyethylene sheeting.

Fabric Wall Systems separate large interior spaces.

Frommelt Products Corp.    Milwaukee, WI 53224 9520
Jan 05, 2009 Constructed of industrial-grade fabric panels that are interconnected with Velcro® to form walls or curtains, Zoneworks Flexible Barrier Systems are available in insulated and non-insulated varieties. Curtains can be fixed or built to slide open and closed, operating on track and trolley system. Custom-designed for each application, systems provide temperature separation up to 40°F differential, sound attenuation, and containment of heat, odors/fumes, and dust.

Insulated Curtain Walls achieve temperature separation.

Frommelt Products Corp.    Milwaukee, WI 53224 9520
Dec 08, 2008 Providing more than 40°F of separation, TZ Series enables users to partition large interior spaces where temperature and energy savings are essential, without need to construct rigid, permanent insulated walls. Constructed of fire-retardant industrial fabric surrounding multiple layers of recyclable, anti-microbial polyester batting, walls can adapt to operation's changing needs. They may be mounted to existing ceiling structure or designed with custom framework.

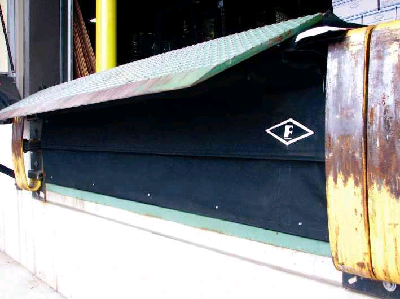

Seal covers areas around air-powered dock levelers.

Frommelt Products Corp.    Milwaukee, WI 53224 9520
Nov 02, 2007 By preventing airflow through open gaps, PitMaster(TM) X Under-leveler Seal minimizes heating and cooling loss and prevents dirt, dust, insects, and debris from entering. Applied in addition to 3-sided dock seal or shelter, seal covers 4th side of dock opening. Two sealing curtains, constructed of black vinyl, are attached to leveler's lower and upper frames and supported by compressible, triangular foam gusset. Separate lip corner seals and open lip hinge seal fill remaining gaps.

Dock Seal promotes sanitation and energy efficiency.

Frommelt Products Corp.    Milwaukee, WI 53224 9520
Jun 06, 2007 PitMaster(TM) Under-leveler Seal closes off fourth side of dock opening, beneath and around dock leveler. Made of black vinyl, compressible sealing curtain is held in place by spring-loaded arms and flexible stays that keep seal engaged against leveler and pit sides throughout leveler operation. Separate header curtain constantly maintains seal, even when leveler is in above-dock position. Quick-disconnect feature allows main sealing curtain to be released for access to leveler pit.

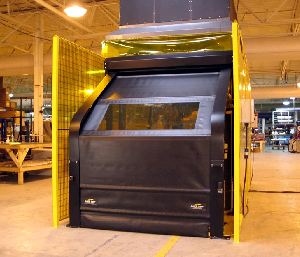

Barrier Door solves safety concerns such as weld flash.

Frommelt Products Corp.    Milwaukee, WI 53224 9520
Jul 18, 2006 With header set back 60-72 in. from front of opening, Roll-Top Barrier Door is designed for overhead loading of heavy parts into robotic cells and workstations via crane or forklift. Available in widths of 12 ft and heights of 12 in., door comes with category 4 safety interlocks and steel guides with rolling barrier bars. Roll-Top offers fume containment from welding process with vertical and horizontal screen protection.

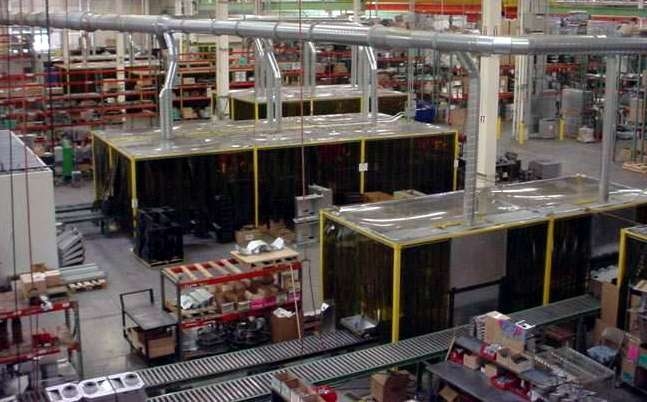

Curtain Enclosure protects around robotic welding cells.

Frommelt Products Corp.    Milwaukee, WI 53224 9520
Jul 29, 2005 Made from heavy-duty material, Complete Custom Enclosure is engineered to fit around robotic welding cells and equipment for process ventilation. Curtains are designed with hook n'loop edges and have NFPA 701 fire rating. Included CAD drawings with curtain labeling facilitate installation.

Conveyor Door separates material handling flow.

Frommelt Products Corp.    Milwaukee, WI 53224 9520
Jul 13, 2005 Designed with soft bottom edge and gravity down operation, Guardian Conveyor Door minimizes wall space for conveyor passage or separation of processing to warehouse space. Unit opens at speeds of 36 ips and comes complete with track guides and barrier bars for stability. Safety interlocking features are built into guides of conveyor door to allow conveyor integration if needed.

Robotic Welding Cell Enclosure has air filtration unit.

Frommelt Products Corp.    Milwaukee, WI 53224 9520
Apr 20, 2005 CAP-TURE, available as modular components or platform-complete cell, comes with roll-down safety interlocking doors, fencing or fixed panels, fume hood, fume exhaust, and controls. Modular design facilitates relocation in plants and accommodates any loading style of parts. Platforms can be custom-designed with required hole dimensions to mount robot or for tooling, and fabric choices capture exhaust and provide protection from sparks and flash.

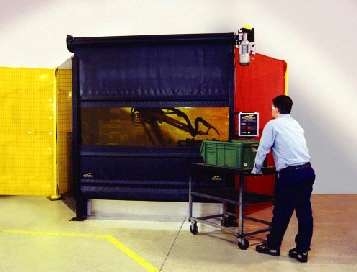

Safety Curtain offers automatic operation.

Frommelt Products Corp.    Milwaukee, WI 53224 9520
Mar 19, 2004 Guardianâ„¢ Barrier Curtain protects personnel from weld flash and flying debris. Category 4 safety interlock switch detects upward movement of curtain, and stops robotic operation to automate welding process. Switch enables Guardian to be used without redundant light curtain or pressure sensitive mat. Standard Soft-bottom edgeâ„¢ helps protect personnel and property from impact damage.
