Variable-Speed Brushless DC Blowers work with worldwide voltages.

AMETEK Technical & Industrial Products    Kent, OH 44240
Sep 28, 2012 Respectively able to develop output pressures to 130 and 42 in. H2O as well as flows to 250 and 230 cfm, Windjammer® 5.7 in. (thru-flow or bypass) and Nautilair® 7.6 in. (bypass only) blowers can operate over 100–240 Vac input range without requiring variations when equipped with Universal Drive System. User speed control methods include mechanical, 0–10 Vdc, 4–20 mA, PWM, or remote potentiometer; externally or internally driven tachometer output signal; and status output signal.

Regenerative Blowers feature oil-free design.

AMETEK Technical & Industrial Products    Kent, OH 44240
Nov 01, 2011 Featuring 3-phase TEFC motors with permanently sealed ball bearings, ROTRON® DR333 and DR433 can agitate solutions, convey parts and products, perform vacuum hold-down and pick-up operations, and dry/clean parts. Model DR333 achieves flows up to 58 scfm, pressures up to 10.8 psig, and vacuums up to 17.5 ihg, while Model DR433 develops max flows to 110 scfm, pressures to 13 psig, and vacuum to 17.6 ihg. Both have threaded cast iron flanges and cast aluminum housing, impeller, and cover.

BLDC Combustion Blowers suit modulating gas-fired burner systems.

AMETEK TIP (Technical & Industrial Products)    Kent, OH 44240
Oct 27, 2011 Depending on model, Nautilair(TM) 12.3 in. variable speed blowers achieve max sealed pressure capabilities up to 20 in. of H2O and max open flows to 1,000 cfm. Pre-mix blowers, when used with gas valve and venturi, deliver measured air/fuel mixture for optimized combustion and reduced nitrous oxide and carbon monoxide emissions. Versions can accept line voltage input of 120 or 240 Vac and are designed to operate in excess of 20,000 hr with minimal maintenance.

Power-Off and Fail-Safe Holding Brakes suit Pittman® DC motors.

AMETEK Technical & Industrial Products    Kent, OH 44240
Sep 26, 2011 Available for Pittman® brush-commutated and brushless DC motors, Power-Off and Fail-Safe Holding Brakes feature factory-set air gap, rigid molded friction disk, compression springs, and drive nuts with set screw. Power-off models suit parking brake applications with ability to decelerate and hold load in position when power is deactivated, while holding brakes promote fail-safe operation by requiring power for release. Depending on model, static holding torque from 1-3 lb-in. can be achieved.

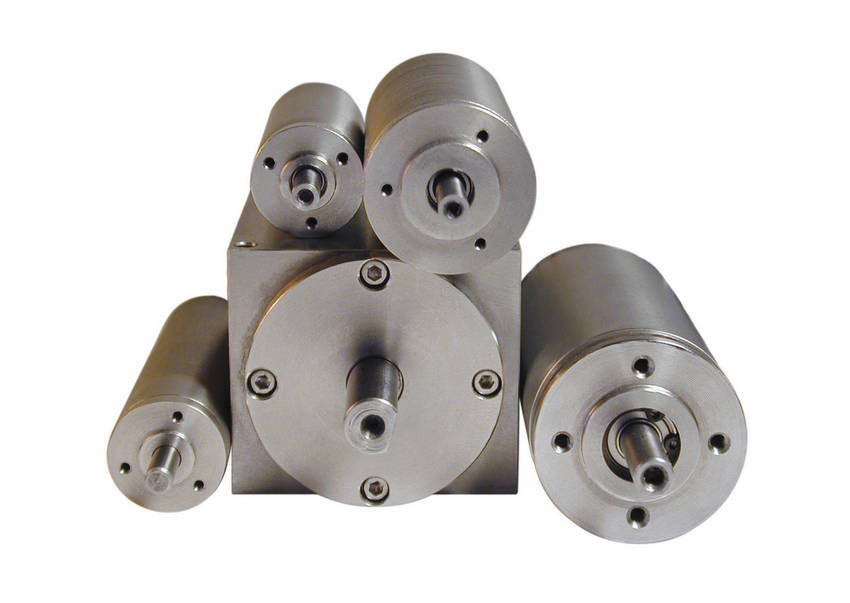

Slotless Brushless DC Motors feature autoclavable design.

AMETEK Technical & Industrial Products    Kent, OH 44240
Feb 25, 2011 Featuring Parallex winding geometry, Pittman® Size 8 Motors come in 2 standard lengths of 2.1 and 2.9 in. with 0.8 in. diameter. Units can realize speeds up to 19,400 rpm under varying loads, depending on model, and can achieve continuous torque ratings approaching 4.0 oz-in. Housed in stainless steel for corrosion resistance, motors feature shielded and replaceable ABEC ball bearings, high-energy rare earth magnets, balanced 4-pole rotors, 3-phase stator, and Hall sensors.

Hybrid Stepper Motors offer fine positioning capability.

AMETEK Technical & Industrial Products    Kent, OH 44240
Jun 08, 2010 Incorporating neodymium magnets, precision-honed stators, and ground rotors, MAE® HN Series provides accurate open-loop control suitable for positioning applications. Standard Size 34 models are available in 3 versions with lengths from 2.64-4.92 in. and step resolutions of 200 steps/rev in full step mode. Holding torques from 397-1,076 oz-in. can be achieved, depending on model. Available with 4, 6, or 8 leads, motors offer clockwise or counterclockwise rotation.

Planetary Gearbox features sturdy, reliable construction.

AMETEK Technical & Industrial Products    Kent, OH 44240
Jun 01, 2010 Available in round and square versions with respective standard diameters of 1.200 and 1.496 in., G30A can achieve reduction ratios to 46,656:1 in 4:1, 5:1, and 6:1 multiples. Max load capabilities range from 106 oz-in. for single-stage models up to 1,250 oz-in. for versions with 4-stages or greater. Intended for Pittman® DC motors, gearbox comes in 0.895-1.585 in. lengths and weighs 3.9-6.6 oz. Sintered steel planet gears minimize audible noise.

Slotless Brushless DC Motors are suited for medical devices.

AMETEK Technical & Industrial Products    Kent, OH 44240
May 03, 2010 Available in diameters from 0.375-1.1 in., compact Pittman® motors can develop speeds up to 70,000 rpm under varying loads and continuous torque ratings up to 15 oz-in., depending on model. All models feature high-energy neodymium magnets and incorporate patented Parallex winding geometry, which delivers high efficiency using less energy. Standard features include 2- or 4-pole rotor, 3-phase stator, and Hall sensors. Options include planetary gearboxes and optical encoders.

Brushless DC Motors target transportation applications.

AMETEK Technical & Industrial Products    Kent, OH 44240
Nov 24, 2009 Rotron® brushless DC motors come in 47 and 64 frame sizes and accept voltage inputs of 12, 24, 37, 74, 90, and 110 Vdc. Applications include fans, blowers, pumps, and compressors from 0.5-2.25 hp. Series 47 Frame motors are available in lengths of 6.08 and 6.68 in. and achieve continuous torque up to 50 oz-in. and speeds up to 4,425 rpm, while 64 Frame series comes in 7.08, 10.125, 10.36, and 13.34 in. lengths and offers 800 oz-in. continuous torque and speeds up to 3,900 rpm.

Brush-Commutated DC Motors minimize cogging.

AMETEK Technical & Industrial Products    Kent, OH 44240
Nov 16, 2009 Available in 2.080, 2.552, and 3.025 in. lengths, 30 mm Pittman® Series 8540 achieves continuous torque up to 9.3 oz-in., peak torque up to 78.7 oz-in., speeds to 6,440 rpm at continuous torque, and continuous power up to 43 W, depending on model. DC motors integrate bonded neodymium magnets, 7-slot straight armature, diamond-turned commutator, and copper-graphite brushes. PC board brush card with integral surface mount components incorporates electrical noise suppression.
