Electric Straddle Truck features regenerative braking system.

Blue Giant Equipment Corp.    Brampton, ON L6W 3K2
Jul 25, 2012 Engineered to meet and exceed requirements of retail store stock rooms with confined spaces, Big Joe PDS40 can handle freight loads up to 4,000 lb at 24 in. load center. AC-drive motor delivers responsive acceleration and smooth performance throughout battery's discharge cycle. Since braking system is mounted on motor armature shaft, braking power is multiplied via drive transmission. Travel speed remains constant relative to throttle position regardless of load weight.

Electric Vehicle Restraint provides safety in loading dock operations.

Blue Giant Equipment Corp.    Brampton, ON L6W 3K2
May 14, 2012 With 32,000 lb restraining force, StrongArm(TM) HVR303 secures trailers to loading dock via electromechanical rotating hook to prevent dangers associated with unscheduled truck departure. Features include intelligent touch controls, hook-style arm that can service variety of trailers, and spring-based compensation float that ensures compatibility with air-ride suspension systems. Also, constant-force restraining grip prevents accidental separation due to cross-docking bounce/vibration.

Universal Dock Levelers withstand heavy usage.

Blue Giant Equipment Corp.    Brampton, ON L6W 3K2
Apr 30, 2010 Offered in 4 rated capacities from 30,000-45,000 lb, U-Series is comprised of hydraulic, mechanical, and vertical models. Each universal dock, to withstand heavy use, features minimum of 6 U-beams welded at dynamic impact points on underside of deck. Single lip hinge pin enables strengthened and evenly distributed load, while continuous one-piece headboard intensifies strength of deck's front structure. To compensate for canted truck beds, products flex up to 4 in. under load.

Loading Dock Controllers use touch-based interface.

Blue Giant Equipment Corp.    Brampton, ON L6W 3K2
Jun 16, 2009 Blue Genius(TM) Touch Control Panels feature smart-touch keypad with multilingual visual display that promotes safety and efficiency at loading docks. Workers can manage all connected loading dock equipment - levelers, vehicle restraints, doors, communications lights, safety accessories - from one panel and make sure each piece of equipment is in proper position before others are activated. MPU-based solutions integrate network communications bus and provide programmable menu options.

Vehicle Restraint System secures loading dock operations.

Blue Giant Equipment Corp.    Brampton, ON L6W 3K2
May 08, 2009 Featuring rotating arm that engages vehicle's rear impact guard at 90° angle, SVR303 StrongArm(TM) secures trailer to dock with 35,000 lb of restraining force. ANSI MH30.3-approved restraint can secure guards as high as 26 in. above ground and as far as 12 in. from face of dock. Dual-acting hydraulic cylinders ensure proper engagement, while switchless Intelligent Positioning System provides positive confirmation that StrongArm(TM) restraint is properly engaged and locked.

Edge-of-Dock Levelers provide smooth top-plate transitions.

Blue Giant Equipment Corp.    Brampton, ON L6W 3K2
Jul 15, 2008 MD Comfort Series hydraulic levelers (MD-CH), controlled via remote-mounted, single-push-button NEMA 4 station, use 2 cylinders to operate deck/lip and come in 72 and 78 in. widths. Featuring spring-balanced lifting system operated via comfort-grip handle that also functions as maintenance stand, mechanical levelers (MD-CM) come in 66, 72, and 78 in. widths. Both types have 30,000 lb max operating capacity and working ranges of 5 in. above to 5 in. below dock level.

Hydraulic Dock Levelers meet needs of shippers.

Blue Giant Equipment Corp.    Brampton, ON L6W 3K2
Jun 05, 2007 Offering capacities from 25,000-40,000 lb, Mantis Series features yieldable lip that absorbs incoming trailer impact to prevent platform and trailer damage. Single pushbutton activation, for deck and lip, can be located on one remotely wall-mounted control station, complete with external reset button. Equipped with various safety features, series comes in 6, 8, or 10 ft lengths and 6, 6.5, or 7 ft widths. Working range is 12 in. above to 12 in. below dock level.

Dock Levelers offer mechanical or hydraulic operation.

Blue Giant Equipment Corp.    Brampton, ON L6W 3K2
Jan 22, 2007 Suited for mid- to high-volume shippers, Mantis Series comes in 6, 8, and 10 ft lengths and 6, 6.5, and 7 ft widths. Working range is 12 in. above to 12 in. below dock level, and 16, 18, and 20 in. lip extensions are available. In addition to capacities from 25,000-40,000 lb, series features yieldable lip that absorbs shocks from backing in trailers; V-grooved maintenance stand; full-operating-range toe guards; and fall safe devices.

Dock Safety Device guards against roll-off and damage.

Blue Giant Equipment Corp.    Brampton, ON L6W 3K2
Jan 02, 2006 Designed to prevent forklift roll-off and overhead door damage, XDS EXTRA DOCK SAFETY SERIES protects loading dock employees from dangers of drop-zone when door is open and no truck is present. Safety device features DOOR AND DOCK GUARD and acts as pallet stop to guard door panels and tracks from regular impact damage. Constructed to stop 10,000 lb rolling loads up to 4 mph, hydraulically activated safety guard is mounted 22 in. in from face of deck plate and rises 7.5 in. above deck.

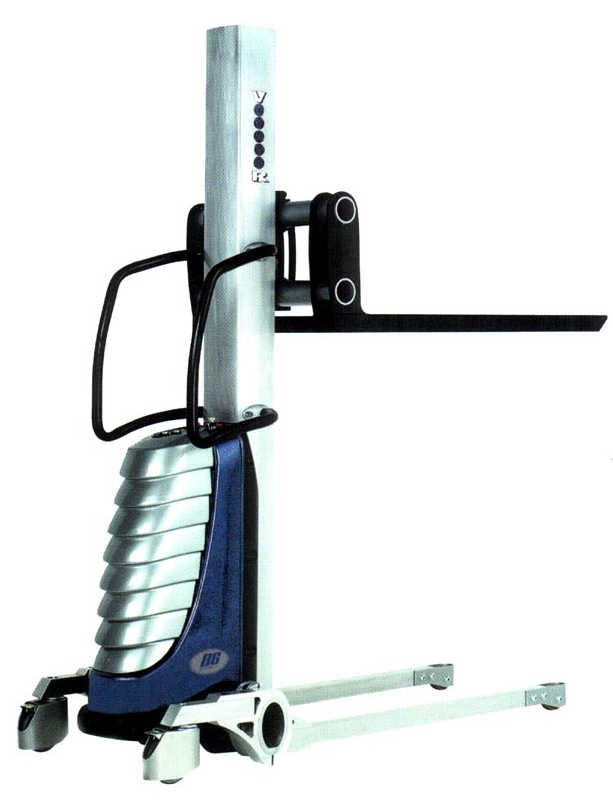

Pallet Stacker is suitable for computer industry.

Blue Giant Equipment Corp.    Brampton, ON L6W 3K2
Aug 28, 2002 Voyager Stacker offers aluminum frame and modular construction with ergonomically correct positioned steering handles. Available in manual pump or battery powered lift versions, capacities are rated at 1,000 and 2,000 lbs at 24 in. load center. Power lift model has 12 V deep cycle battery with built-in charger, battery discharge indicator, and key controlled on/off button. Lifting system provides 63 in. of lift and incorporates non-corrosive webbing.
