MIG Gun Reamer minimizes maintenance and promotes reliability.

Tregaskiss, Ltd.    Oldcastle, ON N0R1L0
Apr 12, 2013 Helping to extend life of robotic MIG guns and consumables to increase productivity, TOUGH GUN™ Reamer TT3 Series features sprayer reservoir located as to safeguard against overfilling and leakage onto internal electronics. Plug and play internal replacement parts feature smart-keyed connections to facilitate assembly and accelerate in-cell troubleshooting, while centralized terminal strip simplifies internal wiring. TOUGH GUN Anti-Spatter Sprayer also comes standard.

MIG Gun Liner System minimizes downtime.

Tregaskiss, Ltd.    Oldcastle, ON N0R1L0
Dec 05, 2012 Designed for guns equipped with QUICK LOAD™ Liners, QUICK LOAD™ Liner AutoLength™ System minimizes wire-feeding problems and burnbacks, as well as premature contact tip failure and wear associated with misalignment between liner and contact tip. Spring-loaded module housed inside power pin applies constant pressure on liner, keeping it seated properly in retaining head or diffuser at all times. Allowing for up to 1 in. forgiveness, system accommodates liner movement during welding.

Consumables Conversion System reduces required inventory.

Tregaskiss, Ltd.    Oldcastle, ON N0R1L0
Jul 26, 2011 Fostering inventory reduction, TOUGH LOCK(TM) Conversion Series lets companies use TOUGH LOCK Consumable System on Binzel, Lincoln Electric, Bernard, and Tweco-style MIG guns by stocking as few as 2 Tregaskiss parts. TOUGH LOCK Consumable System is composed of TOUGH LOCK Contact Tips and Retaining Heads featuring Tregaskiss Dual Taper Technology. Consumable system's locking feature, dual-lead thread design, and Dual Taper Technology fosters extended, optimized operations.

MIG Gun System doubles welding gun life.

Tregaskiss, Ltd.    Oldcastle, ON N0R1L0
May 05, 2011 Available on TOUGH GUN Air-Cooled Semi-Automatic 350-650 A MIG Guns, Double-Life MIG Gun System features identical connections on front and back ends of MIG gun. When front end or cable becomes worn, welding operators can remove trigger switch, trigger housing, and gooseneck and flip-flop them to back end. This change results in new components at front end of gun and worn components at back by feeder, doubling life of MIG gun.

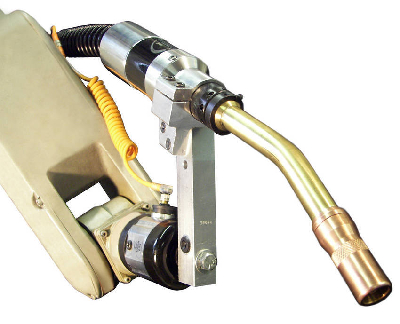

Robotic Water-Cooled MIG Gun features 600 A capacity.

Tregaskiss, Ltd.    Oldcastle, ON N0R1L0
Aug 25, 2010 Featuring high-flow gooseneck with 4 cooling channels and water-cooled power cable, TOUGH GUN(TM) provides optimal cooling capacity to front-end consumables, maximizing welding periods. Stainless steel docking body withstands harsh environments, while independently swiveling conduit delivers rigid support for liner. Providing 600 A welding capacity at 100% duty cycle with CO2 shielding gas or 60% duty cycle when welding with mixed gases, gun is suited for thick-plate welding applications.

Welding Gun Wire Liners facilitate routine maintenance.

Tregaskiss, Ltd.    Oldcastle, ON N0R1L0
Jul 22, 2010 Available in lengths up to 15 ft for robotic applications and 25 ft for semi-automatic MIG guns, 2-piece QUICK LOAD(TM) Liners include 3 sizes for .030, 1/16-5/64, and .078-3/32 in. wires. Welding operator installs retainer in power pin on first use. During subsequent liner replacements, liner feeds through front of MIG gun - which can remain attached to wire feeder during liner replacement. Welding operator needs only to remove front-end consumables and slide liner over wire.

Spatter Cleaning Station extends life of MIG consumables.

Tregaskiss, Ltd.    Oldcastle, ON N0R1L0
Jul 05, 2010 Run on 24 Vdc and as little as 60 psi, TOUGH GARD(TM) Spatter Cleaner removes spatter build-up from MIG welding consumables. This minimizes spatter accumulation and extends life of robotic MIG welding consumables. All-in-one solution, featuring factory-installed sprayer and wire cutter, also lessens frequency of MIG consumable changeover, promoting arc-on time. Measuring 9.75 x 9.75 x 17.5 in., station is hard wired to integrate with existing robotic or PLC automation controls.

MIG Welding Guns cover light- to heavy-duty applications.

Tregaskiss, Ltd.    Oldcastle, ON N0R1L0
Jun 30, 2010 Designed for heavy-duty applications, TOUGH GUN(TM) MIG Guns come with Double-Life MIG Gun System and can be customized. Air-cooled 350/450/550/650 A models and water-cooled 400/600 A models are available. Suited for light- to medium-duty welding applications, 180, 260, 300, and 400 A TGX(TM) MIG Guns come with standard-duty gooseneck insulator and nozzle along with polymer-armored gooseneck. Both feature TOUGH LOCK(TM) Retaining Heads with Dual Taper Technology for consistent weld quality.

Retaining Heads improve welding performance.

Tregaskiss, Ltd.    Oldcastle, ON N0R1L0
May 10, 2010 TOUGH LOCK(TM) Retaining Heads integrate Dual Taper Technology, second rear taper between gooseneck and contact tip, to help dissipate heat and provide consistent welding performance while extending life of consumables. Available in 2 versions compatible with either Tregaskiss Slip-On or Thread-On Nozzles, heads complement TOUGH LOCK Contact Tips, which feature dual-lead thread design. Design between retaining head and contact tip helps keep tip secure, centered, and cool.

Welding Spatter Cleaner helps extend life of MIG consumables.

Tregaskiss, Ltd.    Oldcastle, ON N0R1L0
Apr 12, 2010 Hard wired to integrate with existing robotic or PLC automation controls, TOUGH GARD(TM) runs on 24 Vdc and as little as 60 psi, and effectively removes spatter build-up from MIG welding consumables. Compact all-in-one cleaning station includes sprayer and wire cutter within robotic weld cell measuring 9.75 x 9.75 x 17.5 in. Wire cutter re-dresses welding wire for accurate arc starting, while sprayer applies thin layer of TOUGH GARD Anti-Spatter Liquid to protect front-end consumables.
