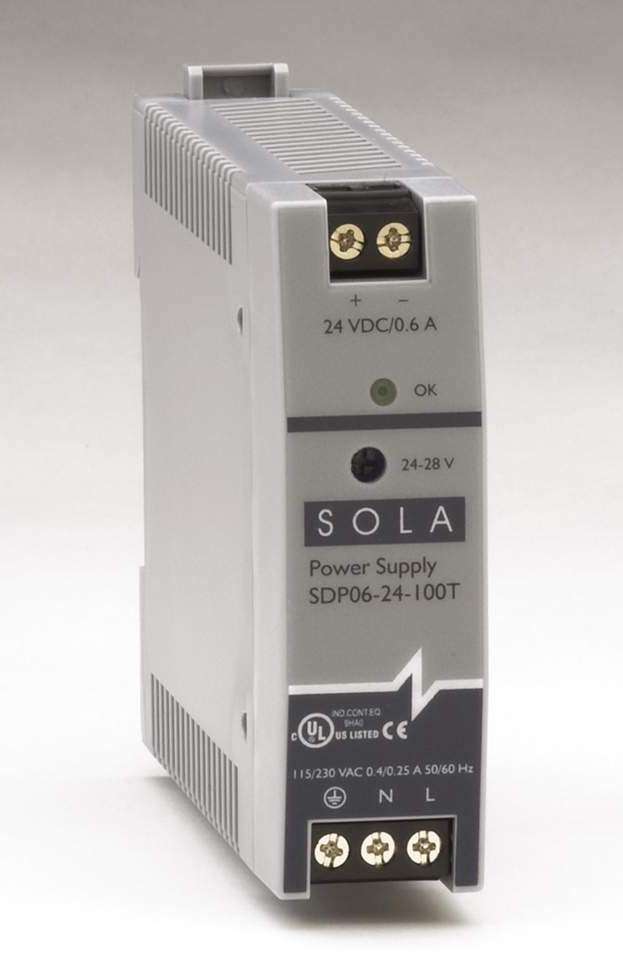

DC Power Supplies take up less than 1 inch of rail width.

Sola/Hevi-Duty A Business Of The EGC Electrical Group    Skokie, IL 60077
Apr 19, 2004 DIN-rail mounted, plastic-housed, Series SDP-T linear power supplies range from 15–100 W. Tool-free mounting combined with screw terminal connections facilitate installation.

Line-Interactive UPS mounts in 19 in. rack or tower.

Sola/Hevi-Duty    Skokie, IL 60077
Dec 03, 2003 Available with power ratings of 1,000, 1,440, and 2,200 VA, compact Model S3K2U provides surge protection for telephone and network connections. It includes automatic voltage regulation, sine-wave output, and configurable input/output. Battery management system offers remote power-off function and full sequence, automatic bi-weekly battery testing. UPS integrates with workstations and PLCs, as well as robotic, industrial automation, and process control systems.

Line Interactive UPS Units provide data line protection.

Sola/Hevi-Duty    Skokie, IL 60077
Nov 17, 2003 Series S2K prevents sensitive equipment from being damaged in event of surges, spikes, lightning strikes, blackouts, and other power disturbances. Automatic Voltage Regulation saves battery power for deep sag situations when input voltage is below 78 V. Units feature intelligent battery management and hot-swappable batteries that do not require shutdown for replacement. They come in 120 and 230 Vac models with power ratings from 300-1,000 Va.

Surge Suppressors protect against severe transients.

Sola/Hevi-Duty    Skokie, IL 60077
Nov 11, 2003 Series STV25K consists of DIN rail mount, narrow-sided suppressors that handle damaging spikes up to 25 kA at dedicated equipment levels of input ratings up to 20 A. They have screw terminals for installation and are suited for quick mounting and connection in control cabinets. Diagnostics such as LEDs and Form C contacts provide status indication. Units feature UL 1449, 2nd Edition, and cUL approvals.

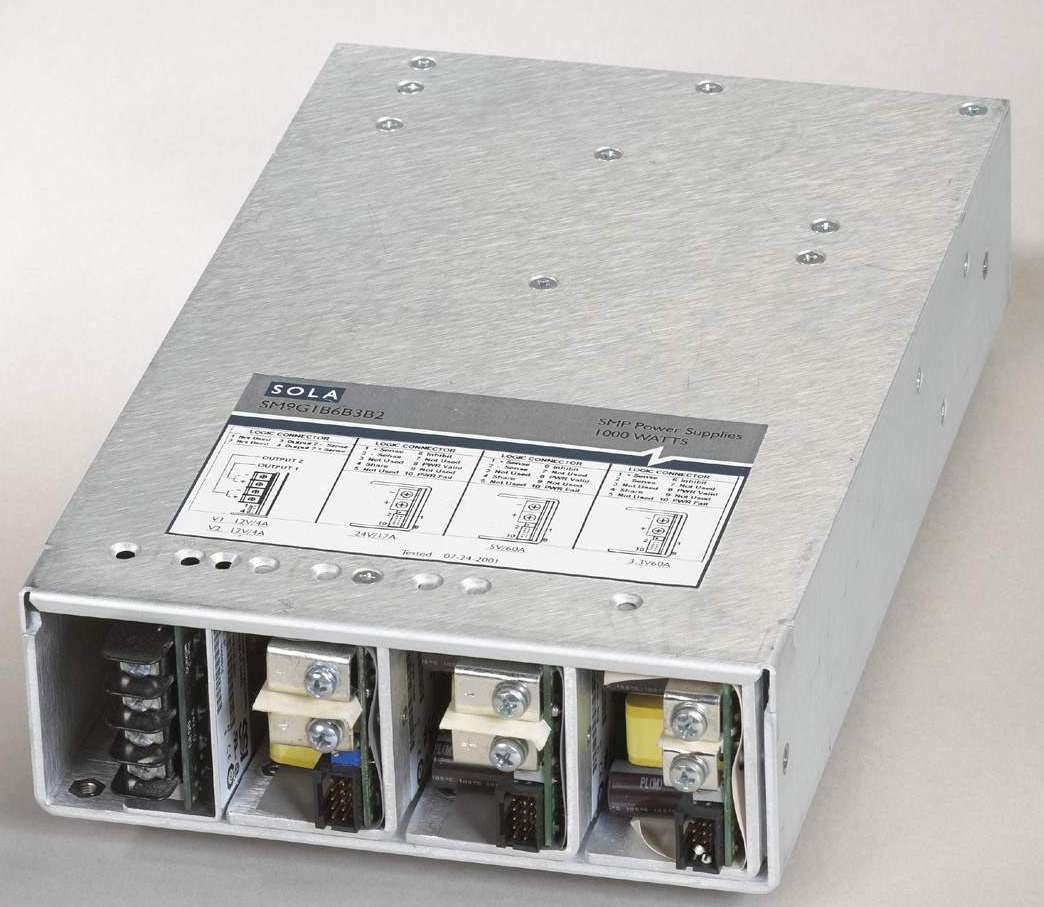

Configurable Power Supply enables custom variations.

Sola/Hevi-Duty    Skokie, IL 60077
Oct 14, 2003 Available with power ratings of 250, 350, 450, 600, and 1,000 W, SMP Series medium power, modular chassis mount AC-DC power supplies can be customized for unusual voltage and power combinations. They feature power factor corrected inputs, end mounted fan, built-in signals and controls, and are capable of up to 12 outputs with voltage choices from 3.3-48 Vdc. Units measure 1.68 x 4 x 9.65 in. and are offered with screw terminals or Molex Type connectors.

Power Supply offers SEMI F47 sag immunity.

Sola/Hevi-Duty    Skokie, IL 60077
Aug 12, 2003 Contained within space-saving, high-density package, SDN-P series power supply meets SEMI F47 Sag Immunity standards to guard against electrical disturbances of mains. Product offers built-in Power Factor Correction and includes auto select 115/230 Vac nominal voltage, 50/60 Hz input, DC OK signal, and adjustable output voltage. Measuring 3.26 in. wide, 10 A, single-phase, 24 Vdc, DIN Rail power supply comes with snap-on metal mounting clip.

Power Supply suits DeviceNet(TM) applications.

Sola/Hevi-Duty    Skokie, IL 60077
Jun 11, 2003 Model SDN4-24-100P class 2, 4 A power supply includes no-switch auto select input, Power Factor Correction to EN1000-3-2 for Europe, Sag Immunity performance to SEMI F47 at 120 and 220 V, and DC OK signal. Unit resists effects of shock, vibration, and power quality problems.

Power Supplies are approved for hazardous locations.

Sola/Hevi-Duty    Skokie, IL 60077
Apr 17, 2003 Series SDN-P single-phase, 24 Vdc DIN rail power supplies range from 2.5-20 A with efficiencies up to 90%. They meet SEMI F47 Sag Immunity standards to guard against electrical disturbances of mains, and offer built-in Power Factor Correction. Units provide DC power for industrial process controls, machine tools, or other equipment exposed to harsh factory floor environment. They include auto select 115/230 Vac nominal voltage, 50/60 Hz input, and adjustable output voltage.

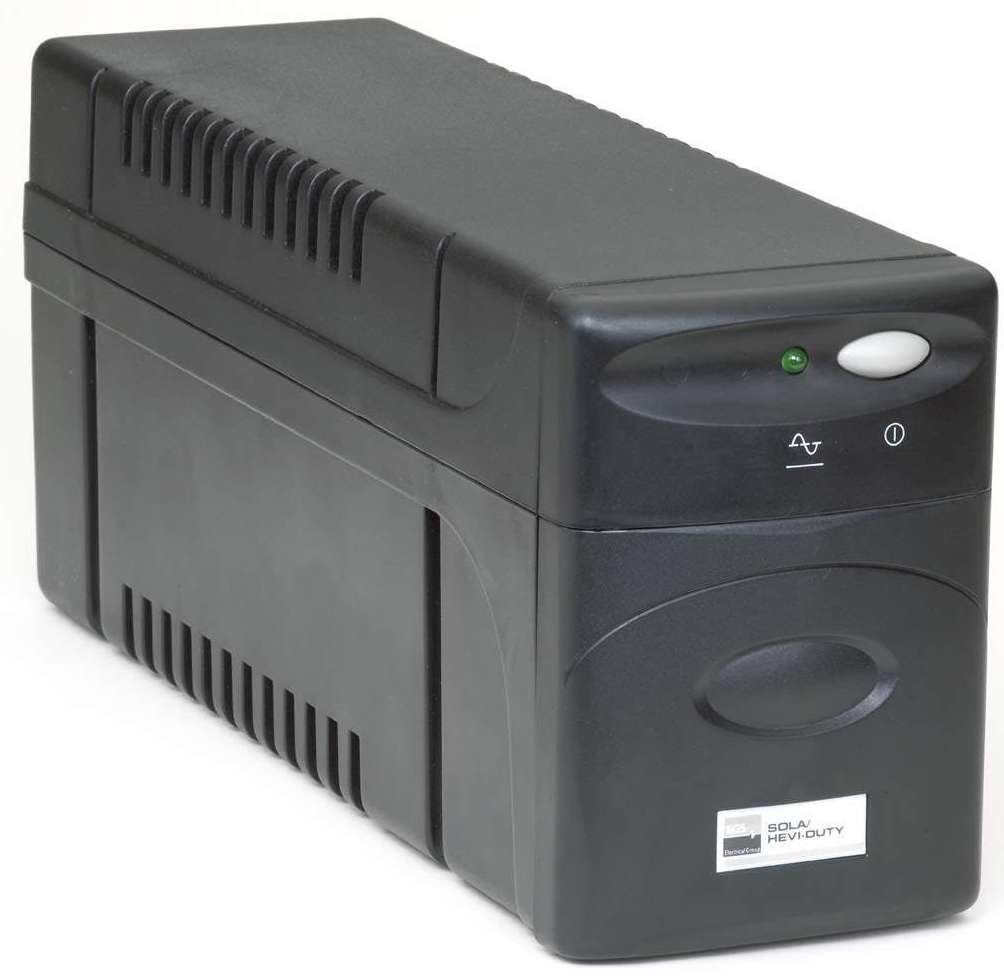

Uninterruptible Power System is suitable for use in offices.

Sola/Hevi-Duty A Business Of The EGC Electrical Group    Skokie, IL 60077
Mar 19, 2003 With compact design, S1K Off-line Uninterruptible Power System delivers multi-level protection. Separate outlets located on back of unit allow for safeguarding of three critical devices requiring battery back-up, while fourth surge-protected-only outlet is suited for non-critical equipment. System includes 4 NEMA 5-15R outlets, data-line surge protection for phone system or network, and DB9 communications box that seamlessly interfaces with Windows-based PCs.

Ground Indicator promotes safe pumping of combustible material.

Sola/Hevi-Duty A Business Of The EGC Electrical Group    Skokie, IL 60077
Dec 11, 2002 AEPGI wall-mounted device with explosion-proof enclosure tests for presence of electrical grounding in tank cars or tank trucks before and during transfer of combustible materials. Unit connects with hand-held alligator clamp, indicating safe ground with green light and absence of ground with red light. Interlocking circuitry prevents pumps from starting until ground is established and shuts pumps down if ground is lost during transfer.
