Tool Control System ensures both tool access and security.

Snap-on Industrial    Kenosha, WI 53141 1410
Oct 19, 2010 Based on tool storage box with HID proximity card keyless entry system and PC-based database, Level 5(TM) ATC uses digital imaging technology to scan each tool in drawer and determine its status. Audio system announces tool issue and return. If tool status is questionable, system can display disrupted tool transaction on 7 in. LCD or it can be identified in audit image at administrator's PC. User log data and time-date information is available for every transaction.

Tool Storage Unit keeps tools and equipment organized.

Snap-on Industrial    Kenosha, WI 53141 1410
May 24, 2006 Providing additional storage space for large cases, manuals, personal stereo systems, clothes, or safety equipment, Snap-on Personal WorkCenter keeps tools and equipment accessible and secure. With overhead units measuring 28 in. deep and 54-72 in. wide, it features torsion spring-assist doors, buffed SS front plate, and standard ¼ in. holes for accessory attachments. Round key locks have interchangeable cores and can be matched to components to ensure security.

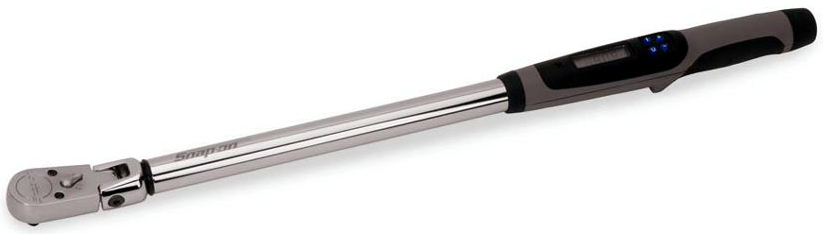

Wrench promotes efficiency and accuracy in tight areas.

Snap-on Industrial    Kenosha, WI 53141 1410
May 16, 2006 Available in 3/8 and ½ in. flex-ratchet sizes, TechAngle(TM) Torque and Angle Wrench allows technician to apply torque load and then read out additional applied angle with one tool. Torque plus angle method helps remove friction and variability from process by specifying torque preload and additional angle of rotation to predict bolt stretch and applied torque. In addition to ignoring reverse rotation, wrench beeps and vibrates when technician ratchets to angle preset.

Ergonomic Tool cuts, crimps, and strips wire in one step.

Snap-on Industrial    Kenosha, WI 53141 1410
Dec 01, 2005 Designed for auto repair, PWCS9 features construction cold forged from alloy steel and heat-treated. Tool provides functionality for wire stripping, bolt cutting, and terminal crimping. It strips stranded wire from AWG 20-10 and solid wire from AWG 16-8. In addition to bi-molded, soft-grip handles, tool features narrow pliers tip, lock that maintains closed position during transport or storage, and internal spring that maintains open position during use.

Cutting Pliers feature cold forged edge design.

Snap-on Industrial    Kenosha, WI 53141 1410
Nov 25, 2005 Featuring PowerEdge(TM) design, High Leverage Diagonal Cutter cuts wide range of wire sizes, from soft 0.026 in. diameter copper wire to high-strength 0.063 in. diameter music wire. Flat surface on one side of cutter tapers from joint to tip, providing strength and control for cutting variety of materials. Slight relief between cutting edges near joint enables precision operation at tip and produces heavy duty pinching cut near joint.

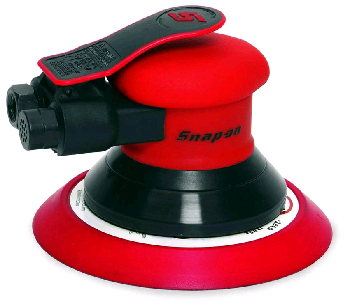

Orbital Sander reaches max of 12,000 rpm.

Snap-on Industrial    Kenosha, WI 53141 1410
Oct 28, 2005 Random Orbital Sander Model PS4612 features ergonomic S-curved lever, sculpted shape, and adjustable grip made from soft material for vibration absorption. Notches inside grip allow operator to rotate handle and position grip, and also prevent inadvertent rotation of grip while in use. Drop-in motor allows access for cleaning, adding tune-up kits, or full-motor replacement, while dust-bearing shield prevents contamination of lower motor bearing.

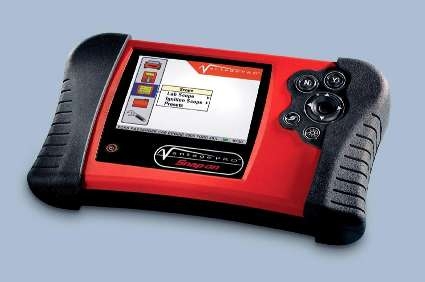

Diagnostic Tool detects automotive electrical faults.

Snap-on Industrial    Kenosha, WI 53141 1410
Jul 25, 2005 Information-guided Vantage PROâ„¢ combines automotive power graphic meter and 2-channel lab and ignition scope to capture and translate electrical component and diagnostic information and faults. Using Windows OS, Vantage PRO includes ARM processor, sunlight-readable color display, and expandable hardware architecture. It provides over 2 million vehicle-specific component tests, including tests for engine, transmission, ABS, charging, transfer case, and suspension systems.

Impact Wrench delivers up to 1,300 blows per minute.

Snap-on Industrial    Kenosha, WI 53141 1410
Jul 14, 2005 Snap-on® XT7100, ½ in. Magnesium Impact Wrench combines one-piece magnesium housing, continuous internal oil bath, and cushioned, non-slip trigger and grip. Biased tip valve design promotes air flow to dual chamber motor for immediate start-ups upon trigger activation, while Anvil Stop Lock on impact immediately halts anvil when trigger is released. Motor and twin hammer impact mechanism power through rusted and seized applications with 700 lb-ft torque.

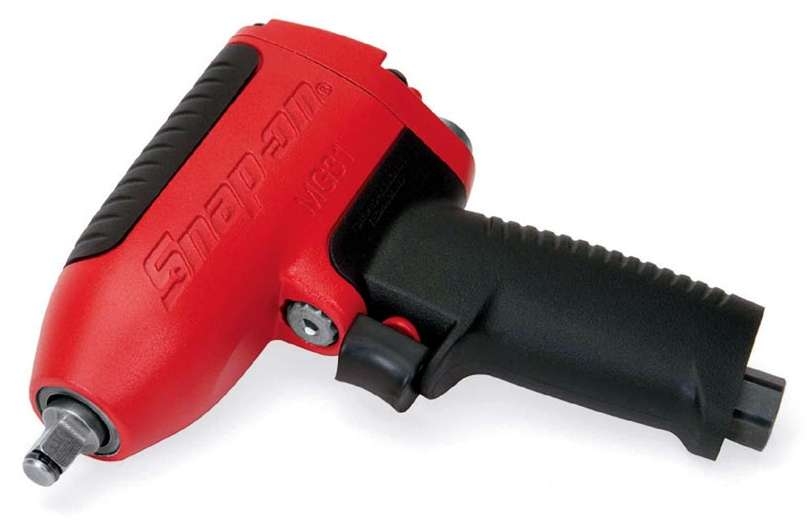

Impact Wrench has one-piece, magnesium housing.

Snap-on Industrial    Kenosha, WI 53141 1410
May 12, 2005 Suited for vehicle technicians, 3/8 in. MG31 aids in removing lug nuts, loosening tie rod ends, and securing other fasteners. Construction incorporates balanced design with slim nose, cushioned trigger, anvil stop lock, and metal reverse and power controls. Weighing 2.9 lb, unit features internal twin hammer mechanism that delivers 300 lb-ft torque at impact. Unit is powered by low-vibration, reverse bias motor with 8-vane rotor.

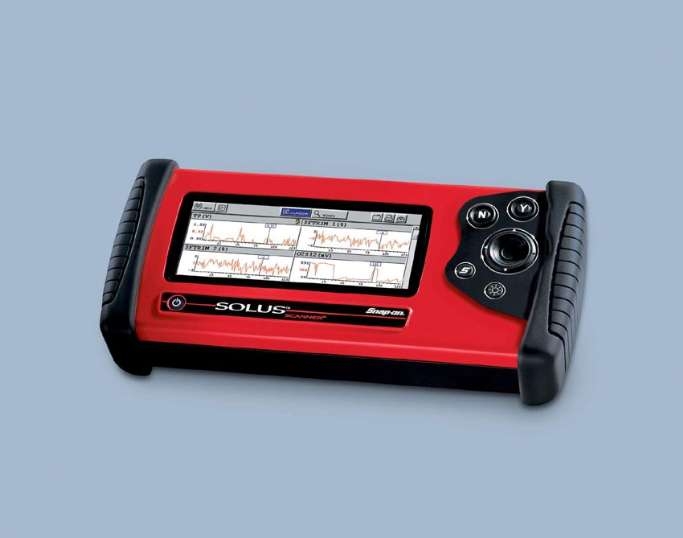

Automotive Software upgrades 10 years of car coverage.

Snap-on Industrial    Kenosha, WI 53141 1410
Apr 19, 2005 Diagnostic Software Bundle v5.2 for for MODISâ„¢ and SOLUSâ„¢ covers late model Ford engine and transmission systems, as well as additional coverage for models dating back to 1996. It covers new GM models, codes and data for GM body control modules for 1996-2004 models, 6 new Chrysler models, airbag coverage for 1999-2004 models, complete Dodge truck ABS systems for 1998-2004 models, and 6 new body control systems. Domestic Driveability Troubleshooter is included.

Entry-Level Scan Tool provides all 9 OBD-II test modes.

Snap-on Industrial    Kenosha, WI 53141 1410
Apr 06, 2005 ScanCheckâ„¢ OBD-II Scan Tool (MTSC500) enables technicians to retrieve and clear trouble codes on all 1996 and newer ODB-II compliant systems on domestic, European, and Asian vehicles. It supports CAN systems, displays freeze frame data and oxygen sensor readings, and includes manufacturer-specific enhanced P code information for GM, Ford and Chrysler vehicles. Internal software is updated via CD with optional PC computer connection kit.

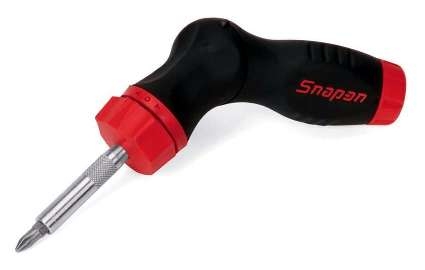

Ratcheting Screwdriver tackles tough turning tasks.

Snap-on Industrial    Kenosha, WI 53141 1410
Mar 28, 2005 Multi-Position, Ratcheting, Soft Grip Screwdriver has Trans-Driveâ„¢ system featuring face-type pawls with 48 teeth that grab, engage, and turn 24-tooth gear. Pawls uniformly rotate turning gear in forward and reverse directions. With adjustable joint, handle rotates and locks at 30° and 60°, giving user leverage through comfortable grip and wrist positions. Screwdriver includes 1 magnetic shank, 1 Phillips® bit, and 1 flat tip bit for general fastening.

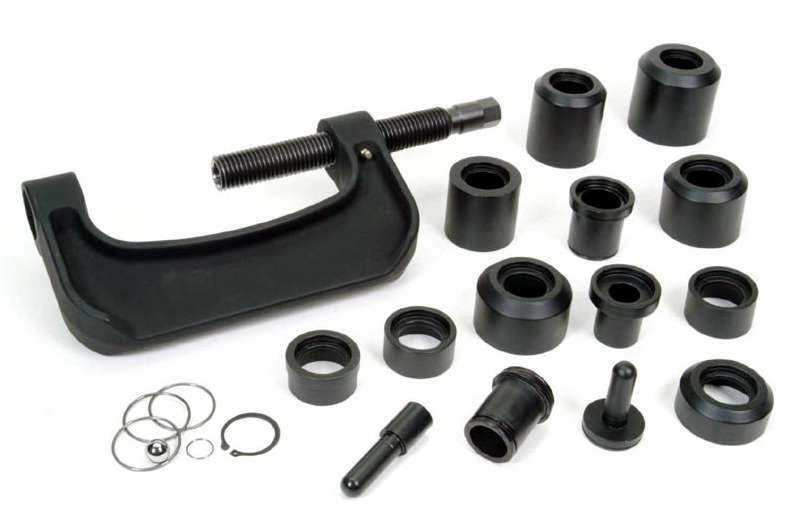

Automotive Kit services ball joints on domestic vehicles.

Snap-on Industrial    Kenosha, WI 53141 1410
Feb 23, 2005 Ball Joint Press Master Kit includes range of adapters with retaining rings to prevent slippage under pressure. Adapters attach snugly to C-frame and pressure screw pad with included snap rings, allowing ball joint press to work as one unit. With 7.75 in. jaw opening, C-frame includes built-in grease fitting, which lubricates pressure screw. Heavy-duty pressure screw features coarse threads for driving stubborn ball joints.

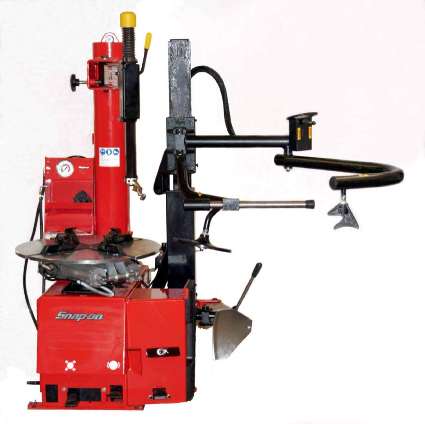

Tire Changers handle range of tires and rims.

Snap-on Industrial    Kenosha, WI 53141 1410
Dec 29, 2004 Deluxe Swing Arm Models EEWH315A and EEWH317A use pneumatic power to depress tire sidewalls during installation and removal. Rims up to 24 in. dia can be accommodated for outside clamping. Pedal-controlled turntable receives power from 1.5 hp pneumatic motor on EEWH315A model and 1 hp electric motor on EEWH317A model. Utilizing 1 hp electric drive motor, Model EEWH316A handles rims up to 20 in. dia for outside clamping and 22 in. dia for inside clamping.

Cordless Flashlight features tri-LED design.

Snap-on Industrial    Kenosha, WI 53141 1410
Dec 16, 2004 Versa Volt CTLED918 groups 3 LEDs together, multiplying light output. Interchangeable base can be removed and recharged when batteries are low, and with spare battery base, user will always have fully charged battery. Flashlight head swivels 120° to expand number of directional angles possible. Partially pulling 2-position trigger activates unit for short bursts of light, while fully depressing trigger puts light into full-time ON position.

Fluid Exchange Systems keep vehicle fluids uncontaminated.

Snap-on Industrial    Kenosha, WI 53141 1410
Dec 14, 2004 FuelKareâ„¢ and Diesel FuelKareâ„¢ offer fuel system service, cleaning, and diagnostics for gasoline or diesel engines. Both use cleaning solution, which temporarily replaces vehicle's fuel supply and automatically performs cleaning and diagnostic functions. OilKareâ„¢ uses non-acidic cleaning agent and filter to remove accumulated deposits and contaminants left behind during oil change. TransKareâ„¢ allows automatic transmsission fluid exchanges through vehicle's transmission dipstick.

Hand Tool Set facilitates controlled terminal removal.

Snap-on Industrial    Kenosha, WI 53141 1410
Nov 24, 2004 Suited for automotive technicians, 6-Piece Terminal Release Tool Set provides hand tools for manual diagnostic electrical work. Tool models SGTT1A/2A/3A/4A/5A/6A remove terminals from electrical connectors for import and domestic vehicles manufactured between mid-1990s and today. Hand tools have ergonomic, contoured handles; stainless steel shafts from 4.38–4.81 in. long; and blades from 1.56–2 in. long. Set also includes harness sheathing ripper.

Multimeter targets automotive applications.

Snap-on Industrial    Kenosha, WI 53141 1410
Nov 03, 2004 Available as EEDM88V stand-alone meter, or EEDM88VKT Combo Kit, Fluke 88V identifies nearly any electrical problem on conventional and hybrid vehicles. Unit captures spikes and glitches as short as 250 millionths of a second, has fused current inputs allowing for 20 A current measurements, and internal protection to guard against over-voltage or over-current situations. It includes adjustable backlight and AutoHoldâ„¢, as well as Min/Max/Average and Peak Min/Max functions.

Tool Storage Units provide 25,000 cu-in. storage space.

Snap-on Industrial    Kenosha, WI 53141 1410
Oct 22, 2004 Black Lights 40 in. Roll Cab and Top Chest offer 7 and 4 drawers, respectively. Roll cab's top drawer provides 250 lb capacity for heavier tools, while other drawers offer 125 lb capacity. Powder-coated, gloss black outer cabinet borders extruded drawer fronts made of 6463 T5 alloy aluminum. Hand-buffed fronts come in bright hues including Headlight Silver, Mars Red, and Deep Blue Purple. Lock 'n Roll® system prevents drawers from drifting open.

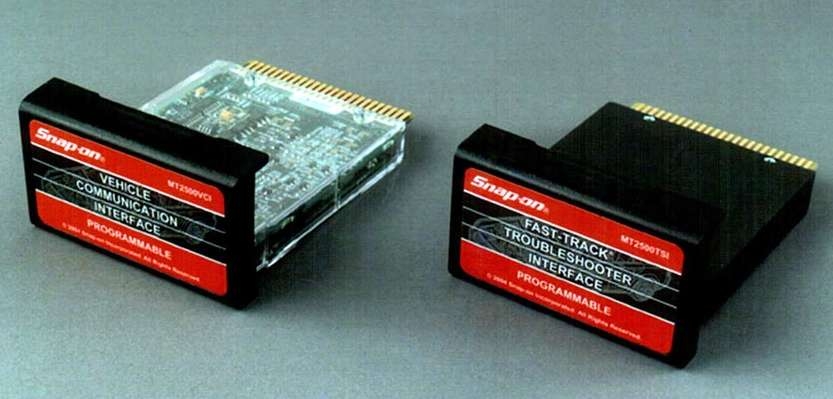

Reprogrammable Cartridges deliver on-site support.

Snap-on Industrial    Kenosha, WI 53141 1410
Oct 22, 2004 Vehicle Communication Interface, MT2500VCI3 and Fast-Track® Troubleshooter Interface, MT2500TSI5 feature flash or reprogrammable memory capability, allowing technicians to keep up with evolving vehicle information and communication protocols. MT2500VCI3 delivers 6 vehicle communication software titles, while MT2500TSI5 provides access to more than 50,000 real-world repair tips for domestic and Asian import engine, transmission, and anti-lock brake systems.
