Socket and Terminal System delivers 60 A per power blade.

Samtec, Inc.    New Albany, IN 47151 1147
Apr 16, 2013 Featuring 10 mm profile, EXTreme Ten60Power™ ET60S/ET60T Series comes in power only or signal/power combinations. Symmetrical or asymmetrical configurations of up to 12 power blades on .217 in. pitch are available on either side of 24 signal pins on .100 in. pitch. Rated for resistance to arc for hot-pluggable applications with max voltage of 250 V, interconnect system is suited for board-to-board applications in networking, telecommunications, transportation, and military industries.

PCB Interconnects feature low-profile design.

Samtec, Inc.    New Albany, IN 47151 1147
Apr 01, 2013 With .0197 in. pitch, Razor Beam™ LP Series SSH/STH Socket and Terminal Strip System achieves 2.00 mm stack height with surface mount termination to board. System features double row design with 20, 40, and 60 total pin counts. SS4/ST4 Series, with .0157 in. pitch, offers stack heights from 4.00–6.00 mm, and up to 100 positions on double row, extra narrow body for PCB real estate savings. All include micro rugged hermaphroditic interfaces for high speed/high density applications.

Edge Card Twinax Cable Assembly has fully shielded design.

Samtec, Inc.    New Albany, IN 47151 1147
Mar 07, 2013 Edge Rate™ Edge Card AcceleRate™ Twinax Cable Assembly (ECDP Series) offers 4, 8, 16, or 32 pairs total on .0315 in. pitch with .062 in. card thickness. Available with choice of wire length, end 2, and wiring schematic options, assembly features metal positive latching system and 100 Ω AcceleRate fully shielded twinax cable. This 30 AWG laminated ribbon cable features solid silver signal conductors and has current rating up to 2.7 A at 30°C temperature rise (2-wide ribbon).

Coax Cable System supports high-speed data transmission.

Samtec, Inc.    New Albany, IN 47151 1147
Feb 28, 2013 Combining coax cable assembly and board level connector, FCF8/FCS8 System offers choice of 10, 20, or 30 total contacts on .0315 in. pitch, with outside contacts grounded to outer body shielding. Cable assembly features 38 AWG micro discrete wire coax cable, available in any length >3.00 in. Positive latching system, metal shielding for EMI protection, and standard weld tabs on surface mount connector make system suitable for harsh environments.

Board Interconnects offer screw-down option.

Samtec, Inc.    New Albany, IN 47151 1147
Feb 18, 2013 Featuring Beryllium copper contacts, Tiger Eye™ Interconnects offer screw-down option for both board-to-board and cable-to-board systems on .050 and .0787 in. pitch. Whether used in board stacking or cable applications, screw-down feature assures that connectors can only become unmated when intentionally de-mated by user. Interconnects are also available with metal latches, friction latches, shrouding, polarization, and keying.

Sealed I/O Cable System features IP68 rating.

Samtec, Inc.    New Albany, IN 47151 1147
Dec 18, 2012 Suitable for panel-to-panel applications and harsh environments, Eye Speed® RCH Series comes in 1, 2, and 3 m cable lengths of 32 AWG low skew pair cable with 100 Ω differential pair signal routing, 28 AWG cable for power lines, and 1.00 in. bend radius. Cable assembly mates with right angle PCB connector and cage on .0315 in. pitch. Featuring Edge Rate™ metal-to-metal contact system for signal integrity, Eye Speed supports SAS, SATA, Fibre Channel, Ethernet, PCIe®, and InfiniBand™ protocols.

High Density I/O Cable System suits data storage applications.

Samtec, Inc.    New Albany, IN 47151 1147
Dec 04, 2012 Providing HyperTransport™ HT 3.1 performance, Eye Speed® HDLSP Series boasts 48 signal pairs in 28 x 14 mm panel opening. System is designed to be stacked and mated with right angle PCB connector and cage. With .025 in. pitch design, system fits full height of PCIe card to support 3D-Torus/Mesh HT NICs and switches. It is available in 1 m and 2 m lengths of 32 AWG low skew pair cable with performance up to 6.44 GHz and 2.56 GHz, respectively, at 7 dB insertion loss.

Floating Interface System offers misalignment compensation.

Samtec, Inc.    New Albany, IN 47151 1147
Oct 03, 2012 Designed for DC to 6 GHz performance with 50 Ω impedance, AFI Floating Interface (AFI Series) consists of 3-piece system that allows for maximum misalignment compensation of up to .030 in. radial and .040 in. axial float. Floating bullet adaptor creates flexible link between 2 AFI jacks in PCB stacking or motherboard expansion applications. PCB-mounted jack features mixed technology termination as well as gold flash plating. Bullet adaptor plug is available in standard .360 in. length.

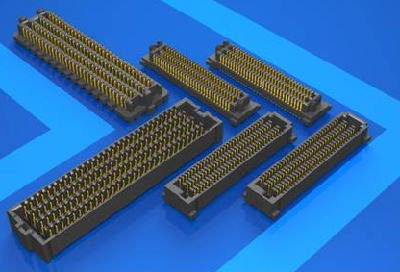

PCB Interconnect System features .0315 in. pitch.

Samtec, Inc.    New Albany, IN 47151 1147
Sep 27, 2012 With .0315 in. micro pitch design, SEARAY™ Open Pin Field Array provides routing and grounding flexibility while saving PCB space. Interconnect system comes in 4 and 6 row designs with up to 180 I/Os and performance up to 14 GHz/28 Gbps. Offering stack heights of .276 and .394 in., array includes Edge Rate™ contact system and lead-free solder charge terminations.

High Density RF Connectors suit broadcast video applications.

Samtec, Inc.    New Albany, IN 47151 1147
Jul 23, 2012 Based on quarter-turn BNC coupling design, HDBNC RF connectors maximize panel density while maintaining 75W performance of BNC interface. Bayonet-style coupling system ensures reliable mating in applications with ganged cabling, and closed entry center contact system allows optimal signal transmission without contact damage. Suitable for systems up to 3 GHz, with extended performance up to 6 GHz, connectors are available in vertical, right angle, and edge mount models for PCBs.
