Shaft Collars withstand corrosive washdown applications.

Ruland Mfg. Co., Inc.    Marlborough, MA 01752
Apr 01, 2013 Washdown shaft collars are comprised of 303 stainless steel shaft collar, male and female shrouds made from FDA-compliant materials, and 3 O-rings with FDA-compliant lubrication. Suited for applications in food processing, packaging, and medical industries, regulatory-compliant products come with zinc-coated forged alloy screw for max holding power and will not mar shaft. As only element requiring washdown, shroud protects encased stainless steel shaft collar from outside environment.

Quick Clamping Shaft Collars come in large bore sizes.

Ruland Mfg. Co., Inc.    Marlborough, MA 01752
Feb 27, 2013 Available in 0.2500–3 in. and 6–75 mm bore sizes, Quick Clamping Shaft Collars are designed for light duty stationary or low-rpm applications that require quick positioning adjustments or frequent set up changes where use of tools is not practical. Units slide on shaft smoothly, and when installed, handle sits flush with outside diameter, enabling use in rotating applications. Tension-adjustment screw makes collars compatible to shaft tolerances.

Metric Shaft Collars are suited for heavy-duty applications.

Ruland Mfg. Co., Inc.    Marlborough, MA 01752
Nov 23, 2011 Designed for shafts used in steel, process, and other heavy industries, metric shaft collars feature 32 mm width and DIN12.9 M12 socket head cap screws. Two-piece design enables clamping force to be applied without shaft damage and allows for installation/disassembly without removal of other components. Machined to ensure consistent face to bore perpendicularity of TIR less than 0.076 mm, collars are made as standard from carbon steel with black oxide finish in 16 bores from 75-150 mm.

Quick-Clamp Shaft Collars aid adjustment, setup, change-over.

Ruland Mfg. Co., Inc.    Marlborough, MA 01752
Jul 20, 2011 Made from aluminum with type-II sulfuric anodized finishes, quick-clamping shaft collars have low-profile, integral clamping lever. Design of cam on lever and mating machined surface on collar ensure tight fit with maximum axial load of 35-120 lbs, depending on collar bore size. Single point faced to ensure perpendicularity and proper alignment, collars are suited for quick positioning adjustments in light-duty, stationary or low-rpm, rotating shaft applications.

Miniature Rigid Couplings have bore sizes as small as 3 mm.

Ruland Mfg. Co., Inc.    Marlborough, MA 01752
Oct 30, 2009 Available in aluminum, carbon steel, or stainless steel, miniature rigid couplings are suitable for micro component applications without misalignment, including connecting line-shafts, attaching motor to gearbox, and servo applications. Bores are precision honed in manufacturing process, assure tolerance of +.05/-.00 mm. Couplings are come in one-piece clamp style, two-piece clamp style and set screw style versions, with or without keyways. Units feature Nypatch socket head cap screws.

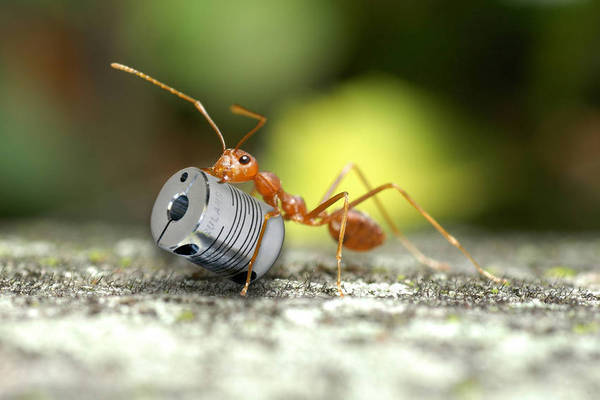

Miniature Beam Couplings cover peak torque of 0.62-0.9 Nm.

Ruland Manufacturing Co., Inc.    Marlborogh, MA 01752
Jun 03, 2009 Available with OD of 9.5 and 12.7 mm and bore dia of 3 mm, P-series beam couplings are made from single piece of aluminum or stainless steel with overlapping spiral cuts. They are offered in set screw style or clamp-style versions, which have zero-backlash and can accommodate angular misalignment of up to 3° and radial misalignment of up to 0.2 mm. Applications include medical devices, liquid handling equipment, and inspection equipment.

Shaft Collars target global market.

Ruland Mfg. Co., Inc.    Marlborough, MA 01752
Mar 24, 2009 Available in 1-piece and 2-piece clamp-style models, International Series Shaft Collars feature DIN 12.9 socket headed cap screws. Units come in high-grade aluminum with anodized finish and stainless steel screws, lead-free carbon steel, stainless steel, and engineered plastic. Offered with bore sizes from 3-150 mm or 1/8-6 in., collars are suitable for retrofits and new designs of equipment for global market.

Quick Clamping Shaft Collars do not require tools to install.

Ruland Manufacturing Co., Inc.    Marlborogh, MA 01752
Feb 05, 2009 Suited for applications with frequent setup changes or adjustments, quick clamping shaft collars are made from high quality aluminum with anodized finish. They are single point faced to ensure perpendicularity and proper alignment, and are available with bore sizes from 5/16 to 1½ in. in inch series and 8-35 mm in metric series. Applications include light duty split hub components such as gears and sprockets, as well as printing and packaging industries.

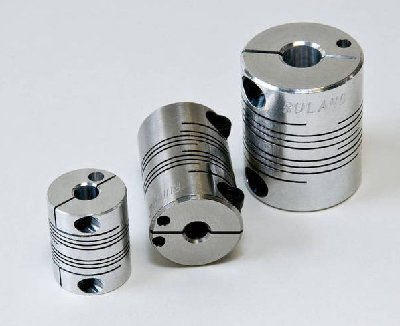

Flexible Beam Couplings clamp with single screw on each end.

Ruland Manufacturing Co., Inc.    Marlborogh, MA 01752
Dec 19, 2008 Machined from single piece of aluminum, zero-backlash Beam Couplings feature both radial and cross-cut to optimize surface contact with shaft. Multiple spiral cuts provide torsional stiffness and allow couplings to accommodate angular misalignment, parallel misalignment, and axial motion. Available in 20 body sizes, couplings feature outside diameters from 3/8-1½ in. and bores from 3/32-¾ in. Stainless steel models are also available for corrosion resistance.

Shaft Collars offer corrosion resistance.

Ruland Mfg. Co., Inc.    Marlborough, MA 01752
Jul 29, 2008 Available in 316 SS, yellow zinc plated, and high-strength grade aluminum with anodized finish, corrosion-resistant Shaft Collars are single point faced to ensure perpendicularity and proper alignment. Stainless steel models are suited for food processing, medical, and pharmaceutical applications where washdown is required and contamination from corrosion must be avoided. Yellow zinc plated units use RoHS-compliant process, while aluminum models are lightweight with low inertia.
