Outsert Applicators utilize hot melt glue adhesion.

NJM/CLI Packaging Systems Int'l.    Lebanon, NH 03766 1403
Aug 21, 2012 Featuring rotating 3-arm pick-and-place system with vacuum cup at end of each arm, 277 SIDESERT applies outserts from 0.125-1.5 in. thick, while 277 TOPSERT handles outserts from 0.125-0.75 in. thick. Applicators place literature on sides or tops of round, square, and rectangular bottles within ±1.5 mm tolerance. Depending on container size and outsert size, thickness, weight, and folding integrity, systems achieve line speeds up to 280 containers per minute.

Pressure Sensitive Labeler offers high-speed, in-line operation.

NJM/CLI Packaging Systems Int'l.    Lebanon, NH 03766 1403
Jul 23, 2012 Intended for solid dose pharmaceuticals, 426 AUTOCOLT labels up to 300 square, rectangular, or round bottles per min. System occupies 21 x 11 ft footprint and can apply wraparound or 3 panel labels as well as optional side- and/or top-serts. Accommodating containers from 1-9 in. high and 1-5 in. dia, labeler supports tool-free changeover in less than 25 min. Options include glue side-sert and/or top-sert applicators, continuous thermal transfer printing, and OCV/OCR vision inspection.

Outsert Applicator uses hot melt glue for heavy outserts.

NJM/CLI Packaging Systems Int'l.    Lebanon, NH 03766 1403
Jan 18, 2011 Designed to attach outserts to round, square, and rectangular pharmaceutical containers, Model 277 Auto-Sert Outsert Applicator handles outserts from 0.875-2.5 in. wide, 1.125-4 in. high, and up to 1.5 in. thick at speeds up to 220 bottles/min. Vacuum cup at end of rotating arm moves into hopper to ensure outsert is securely held, while pivoting arm rotates to deliver outsert to container. Featuring heavy-duty stainless steel and aluminum construction, system meets GMP standards.

Pressure Sensitive Labeler handles up to 300 containers/min.

NJM/CLI Packaging Systems Int'l.    Lebanon, NH 03766 1403
Mar 12, 2009 Featuring stainless steel and aluminum construction, Model 326 Auto-Colt III Trunnion handles round pharmaceutical and opthalmic containers measuring 0.563-2 in. in dia with shoulder heights from 0.813-3 in. System features servo-driven feedscrew and trunnion roll system for positive container handling and servo-driven label dispenser/applicator that provides accuracies of ±0.5 mm. System includes raised-bed sanitary conveyor and 10 in. Windows-based color touchscreen control panel.

Pressure Sensitive Labeler handles up to 200 bottles/min.

NJM/CLI Packaging Systems Int'l.    Lebanon, NH 03766 1403
Jun 02, 2008 Featuring Allen Bradley Kinetix/Compactlogix platform and synchronized servomotors, Model 130 Bronco can be designed and retrofitted in field to accept range of configurations and options. It can be equipped to handle round, square, and oval containers from 1-14 in. in height and 5/8 to 7 in. dia, applying single, dual, or wraparound labels. With heavy-duty stainless steel and aluminum construction, open frame design, and raised bed sanitary conveyor, unit meets GMP standards.

Pallet Labeler features PLC and touchscreen interface.

NJM/CLI Packaging Systems Int'l.    Lebanon, NH 03766 1403
Feb 26, 2008 Model 401X Pallet Labeler can be configured for optional RFID pallet tagging as well as standard corner, side, and multipanel print and apply labeling. It is equipped with Allen-Bradley PLC and Allen-Bradley PanelView 550 touchscreen user interface. With full clock and calendar functions, as well as serialization, device can print fixed and variable data including text and graphics and array of barcodes. Standard reach of up to 14 in. can be extended to 36 in.

Capper uses belts to tighten caps.

NJM/CLI Packaging Systems Int'l.    Lebanon, NH 03766 1403
Sep 27, 2007 Featuring stainless steel cabinet and support frame, beltorque(TM) Automatic In-Line Capper synchronizes linear displacement speed of container and rotating speed of closure, even when cap stops turning. It handles round, oval, square, and rectangular containers from 2-12 in. in height and from 0.5-7 in. dia with caps up to 3 in. dia at speeds up to 200 cpm. System can be installed over existing tabletop conveyor, requiring only 120 x 64 in. of floorspace.

Case Labeling System encodes/verifies/applies RFID tags.

NJM/CLI Packaging Systems Int'l.    Lebanon, NH 03766 1403
Jul 09, 2007 Operating at speeds to 50 cases/cartons per min, Model 400 is designed to use rolls of labels oriented head-to-toe. It applies label to case or carton in correct orientation, with length of label across case. Solution integrates Zebra RFID printer and verification scanner with Model 400 Print and Apply Labeler, modified to automatically remove bad tags/labels prior to label application. Communication compatibilities can include Ethernet connectivity.

Pressure Sensitive Labeler handles 120 containers/min.

NJM/CLI Packaging Systems Int'l.    Lebanon, NH 03766 1403
Apr 05, 2007 Featuring slide-out control cabinet, stainless steel GMP construction, and sanitary raised bed conveyor, wrap-around Uni-300VA handles round containers from 0.5-4 in. in diameter and from 1-8 in. in height with no change parts required. Allen Bradley intelligent servo drive automatically synchronizes labeling dispenser with drum wrap station for accurate labeling. Labeler is suited for pharmaceuticals, nutraceuticals, cosmetics, and personal care products.

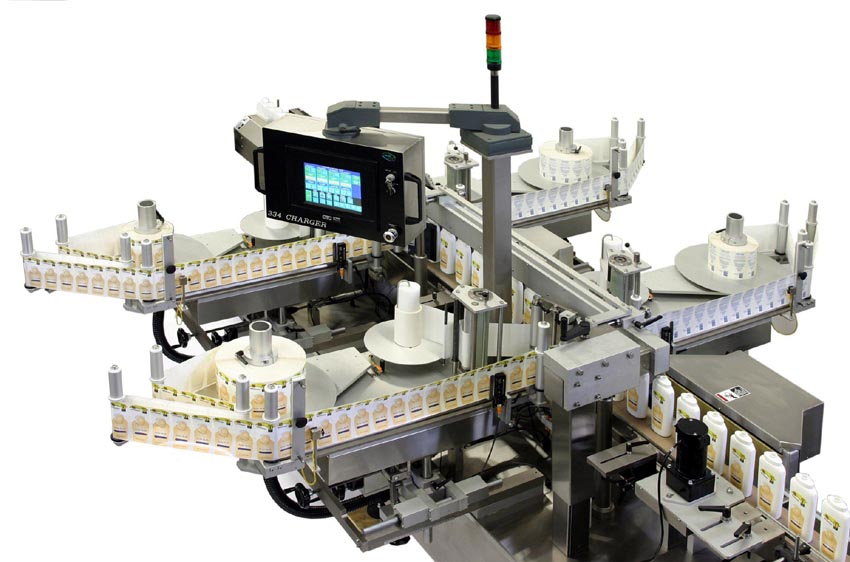

Labeling Machinery handles up to 300 containers/min.

NJM/CLI Packaging Systems Int'l.    Lebanon, NH 03766 1403
Jan 10, 2007 Featuring 2 front and 2 back label dispensers integrated on pressure sensitive labeler, Model 334 Charger handles 1-14 in. high, 5/8 to 6 7/8 in. dia round, oval, square, and rectangular containers. It can apply front, back, and wrap around labels as well as single- and multi-panel labels. Product features sanitary-style raised bed conveyor and stainless steel construction, and can be equipped to meet FDA 21 CFR Part 11 requirements.
