Safety Relay Module adds alarm contacts to safety processes.

Moore Industries International, Inc.    North Hills, CA 91343
Sep 05, 2012 Certified by exida for single use in Safety Instrumented Systems up to SIL 2, Model SRM accepts single contact closure inputs from logic solver trip outputs. With 3 contacts per alarm input, SRM allows for addition of alarm contacts to safety processes without special installation or configuration. Force Guided Relay avoids possibility of contacts becoming stuck in both NO and NC positions simultaneously. Housed in aluminum DIN case, unit includes LED lights for input, output, and power status.

Wireless Network Module sends signals between remote sites.

Moore Industries International, Inc.    North Hills, CA 91343
Dec 12, 2011 With single unit transmitting up to 30 miles and ability to act as repeater for virtually unlimited transmission range, Model WNM provides wireless communications link between field sites that are in rugged or impassable terrain. Bi-directional unit employs SSFH technology to avoid interference caused by crowded radio spectrums. Operating at frequencies of 902-928 MHz or 2.4-2.4835 GHz, WNM utilizes 128-bit AES encryption, 32-bit CRC error detection, and Automatic Resend Query.

Process Control System serves as single or dual MODBUS master.

Moore Industries International, Inc.    North Hills, CA 91343
Sep 30, 2011 With addition of EMM Interface Module, NET Concentrator System® comes standard with Ethernet port and dual, independent MODBUS RTU ports. One or both MODBUS RTU ports can be configured as MODBUS master ports, allowing NCS to poll other MODBUS RTU slaves with network polling functions. Providing real-time signal gateway between field or factory floor and control strategies, NCS offers 20-bit input, 18-bit output, and ambient temperature range of -40 to +185°F.

Fieldbus Power Supply suits non-incendive applications.

Moore Industries International, Inc.    North Hills, CA 91343
Sep 28, 2009 Available in models that supply 350 or 500 mA of isolated, conditioned simplex or duplex power to up to 4 segments, TRUNKGUARD® TPS400 works with any non-intrinsically-safe fieldbus device coupler. It has modular design, featuring modules that are hot-swappable with load-sharing in redundant pairs. Additional features include rugged industrial metal housing, optional pluggable surge protection, multi-segment H1 connectors, and optional diagnostics module (FDM252).

Signal Conditioners deliver up to 4 I/O channels.

Moore Industries International, Inc.    North Hills, CA 91343
Dec 03, 2008 With 1 in. footprint, miniMOORE family multi-channel analog signal conditioners provide 1,000 Vrms input-to-output and channel-to-channel signal isolation. DIP-switch on 2-channel versions selects analog input types of 4-20 mA, or 0-5, 1-5, or 0-10 V, while 4-channel model accepts 4-20 mA inputs. All models provide isolated 4-20 mA outputs, ready for interface with indicator, recorder, DCS, PLC, or PC-based SCADA system, and feature industrial metal housings for RFI/EMI protection.

MODBUS RTU Master also acts as distributed I/O system.

Moore Industries International, Inc.    North Hills, CA 91343
Oct 13, 2008 Functioning as MODBUS RTU (RS-485) Master, microNCS® can send up to hundreds of process signals between field or factory floor and control system. One or both MODBUS RTU ports can be configured to poll as many as 32 or 64 other MODBUS RTU slaves, respectively. Product operates as real-time signal gateway by concentrating data from 4 or 8 fully isolated analog inputs and 4 discrete inputs and transmitting data back to one or more host DCS, PLC, or PC-based control system.

Temperature Transmitter has universal input options.

Moore Industries International, Inc.    North Hills, CA 91343
Sep 16, 2008 Concentrating up to 32 signals onto single twisted wire pair, TCS Temperature Concentrator System can be set to accept RTD (2-, 3-, 4-wire, Pt, Cu, Ni), thermocouple (J, K, E, T, R, S, N, B, C), resistance/potentiometer (0-4,000 ohms), and -50 to 1,000 mV inputs. It utilizes HART, or MODBUS RTU with converter module, for communication from field to control room. Measuring less than 5 in. wide, loop-powered TCS's operating parameters can be configured from any HART-based system.

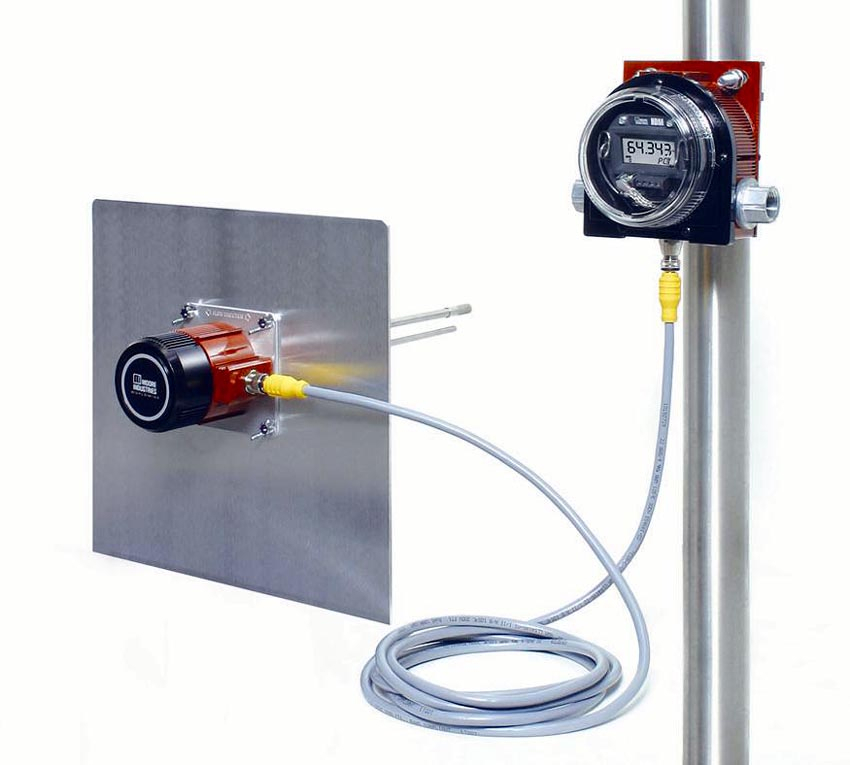

Transmitter measures temperature, humidity, and dewpoint.

Moore Industries International, Inc.    North Hills, CA 91343
Mar 24, 2008 HTZ Smart HART® Humidity and Temperature Transmitter offers up to ±0.75% RH accuracy, up to ±0.036°C of temperature measurements, and within ±0.5°C of dewpoint calculation. Loop-powered unit incorporates sensor module which can be mounted on any surface or pipe such as HVAC duct or clean room wall and display module that can be mounted up to 30 ft away from sensor module. HTZ operates in temperatures from -40 to 85°C.

FOUNDATION Fieldbus Temperature Transmitter is bus-powered.

Moore Industries International, Inc.    North Hills, CA 91343
Dec 06, 2007 Requiring 10.5 mA to operate, programmable Model TFZ allows up to 32 field devices (126 with repeaters) to be networked onto one FOUNDATION Fieldbus H1 segment. It has 20-bit input resolution, RFI/EMI protection, ambient temperature compensation, and operates in -40 to +85°C temperatures. Rated NEMA 4X/IP66, TFZ can be set from control room over segment wiring to handle 14 RTD types, 9 thermocouple types, as well as direct mV and resistance/potentiometer inputs.

Temperature Sensor installs in any thermowell.

Moore Industries International, Inc.    North Hills, CA 91343
Jul 09, 2007 Suited for new and retrofit applications, WORM Flexible Sensor replaces restrictive straight sensor probes. Unit bends around and through top or face of thermowell enclosure and snaps into place without removal of enclosure, conduit, connection head, or any assembly components. Immune from external temperature effects, WORM is available with 100 and 1,000 W platinum, copper, and nickel RTDs, as well as J- and K-type thermocouples.
