Industrial-Grade Positioner offers ±50 micron repeatability.

Parker Hannifin Corp, Electromechanical Automation Div.    Port Washington, NY 11050
Oct 31, 2008 Featuring lubricated-for-life, maintenance-free bearings and ball screws, maintenance-free HD-N series offers optimized bending moment of inertia for utmost rigidity and minimal deflection. Deep channel extruded body and carriage provide beam strength and carriage stiffness, while IP30-rated belt seals protect interior components from debris in tough environments. Custom motor mounts are available for Parker and non-Parker motors (inline and parallel orientations).

Planetary Gearheads incorporate motor mounting kit design.

Parker Hannifin Corp, Electromechanical Automation Div.    Port Washington, NY 11050
Aug 26, 2008 Stealth Gen II Helical Planetary Gearheads are equipped with bearing support such as dual angular contact bearings to support output carrier, full complement needle bearings to support planet gears, and optimized gearing geometries. Internal design allows for one fill level for any orientation, which facilitates part number designation and order placement. Units are available with universal mounting kits.

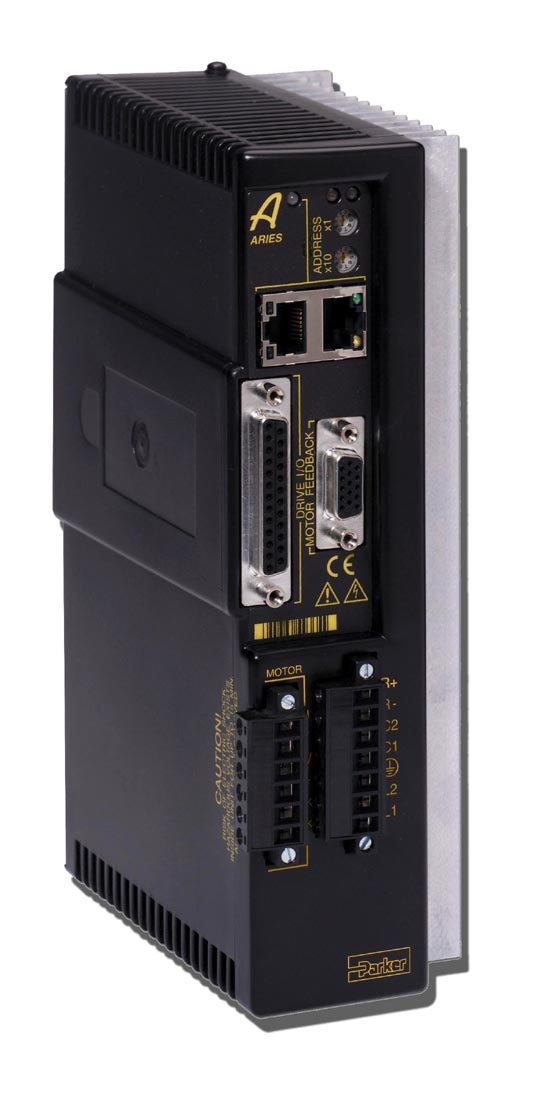

Controller is programmed using ACRView software environment.

Parker Hannifin Corp, Electromechanical Automation Div.    Port Washington, NY 11050
Mar 25, 2008 Combining Aries digital servo drive platform with control capabilities of ACR servo controller, Aries Controller features absolute and relative motion, jogging, gearing, and camming. Secondary encoder input is included for 1½ axis and dual-loop applications, while EnDat absolute encoders are supported in addition to standard quadrature and Parker Smart encoders. Drive connectivity includes ethernet port for communications, setup, programming and diagnostics, and HMI connectivity.

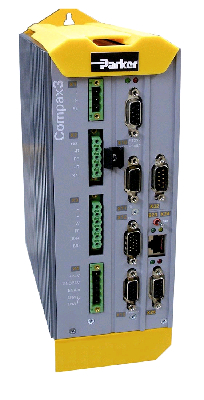

Digital Servo Drives include Ethernet Powerlink technology.

Parker Hannifin Corp, Electromechanical Automation Div.    Port Washington, NY 11050
Mar 18, 2008 Available in 12 power levels ranging from .5-100 kW, Compax3 Servo Drives are enabled with ETHERNET Powerlink motionbus technology, which connects motion controller to multiple drives and I/O points using standard Ethernet networking hardware. Centralized communication system for automation and motion control makes Ethernet deterministic for real-time industrial applications. Drives also include Category 3 Safety, which is important for industrial markets.

Brushless Servo Motor features inertia-optimized design.

Parker Hannifin Corp, Electromechanical Automation Div.    Port Washington, NY 11050
Dec 13, 2007 Available in sizes 92, 100, 115, and 142, MaxPlus-J (MPJ) series features inertia flywheel-based design and uses segmented core technology for optimal torque. Solution also employs neodymium magnets; rotate-able right-angle PS-style connectors; and resolver, incremental encoder, or absolute encoder (single- or multi-turn). Motors are capable of producing continuous torque from 12 to 173 lb-in. and peak torque from 44 to 726 lb-in. Various elements can be customized.

Distributed HMI facilitates Web-enabled publishing, support.

Parker Hannifin Corp, Electromechanical Automation Div.    Port Washington, NY 11050
Sep 25, 2007 Leveraging availability of Internet, IP networks, and web browsing software, Interact Xpress(TM) enables distributed HMI software, remote support, and application sharing. Solution suits multi-site, multi-station, and standalone machine HMI applications. Graphical runtime interface with HMI development tools can be accessed from HMI panel or Internet Explorer®, allowing supervisory stations to be created by publishing local HMI screens to supervisory software or web browser.

Linear Positioning Stage suits precision applications.

Bayside Motion Group    Port Washington, NY 11050-4610
Jan 30, 2003 Luge LM, available in direct-drive, flanged-mount, and linear-motor models, are totally enclosed in aluminum-alloy package. Stages withstand packaging and automotive requirements and suit precise semiconductor, electronic assembly, and indexing applications.

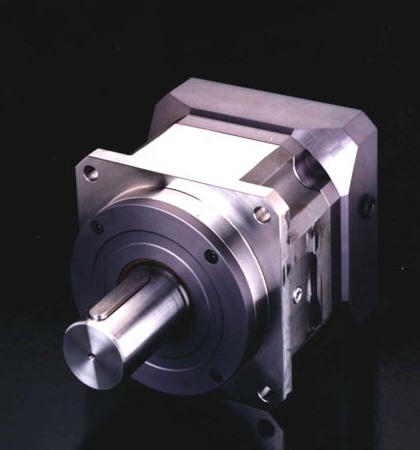

Improved Gearheads handle heavier loads, last longer.

Bayside Motion Group    Port Washington, NY 11050-4610
May 23, 2002 Stealth PS in-line and RS right-angle helical planetary gearheads have greater face width for higher load capability, smoother tooth engagement, and lower backlash. Stealth Advanced Gearhead has been improved to reduce heat and increase internal lubrication that will extend seal and gearhead life. Other enhancements include smaller viton seals to reduce start up torque and increase efficiency, magnetic drain plugs, and lower RA shaft surface finishes to improve seal life.

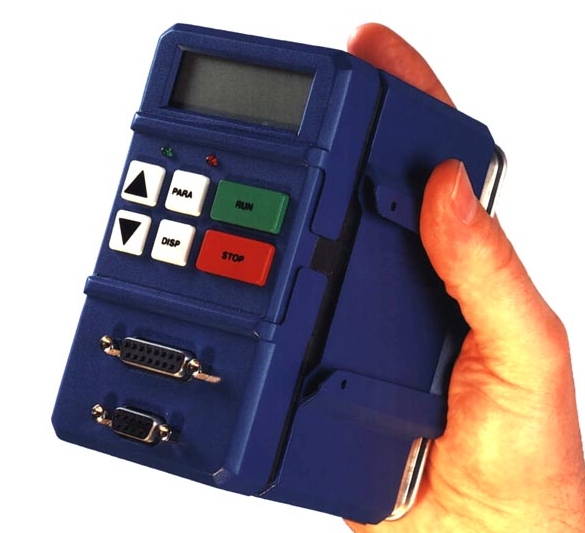

Servo Amplifiers are vibration-proof.

Bayside Motion Group    Port Washington, NY 11050-4610
Mar 08, 2002 i Drive digital servo drives are point-to-point digital amplifiers available in 7 models with power ratings from 0.5 to 3 kW (1- or 3-phase). Drives can be used for velocity, torque, and position control of synchronous and asynchronous motors. They offer Digital Signal Processing (DSP) technology based on vector-based sensorless field algorithm. LCD display and 6 function/programming pushbuttons allow for entering parameters, set points, and error flags.
