Machine Vision Appliance allows multiple-camera inspection.

CORECO Imaging Excellece in Machine Vision    Bedford MA, 01730
Oct 01, 2004 Based on NetSight II platform, iNspect is intended for applications that require multiple inspections based on independent views of same part, and can accommodate views and processing for up to 3 cameras. It features setup and monitoring via desktop interface, local display that allows user to view runtime images with measurement overlays, and disk space for history and local job storage. Remote monitoring of inspections is available across network.

Machine Vision Appliance inspects quality of labels.

Imaging Technology Inc.    Bedford, MA 01730
Mar 11, 2003 Requiring only minutes of setup time, iLabel checks placement and quality of labels on bottles, boxes, cans, and other packaged goods. It detects flags, tears, and damage to label, and inspects each one for significant defects then reports measurements of quality, placement position, and angle. System inspects 300 labels per minute, from 1–10 in., issues grade of pass, fail or recycle, and reports grade via Ethernet or RS-232, using standard protocols.

Software simplifies machine vision tasks.

Imaging Technology Inc.    Bedford, MA 01730

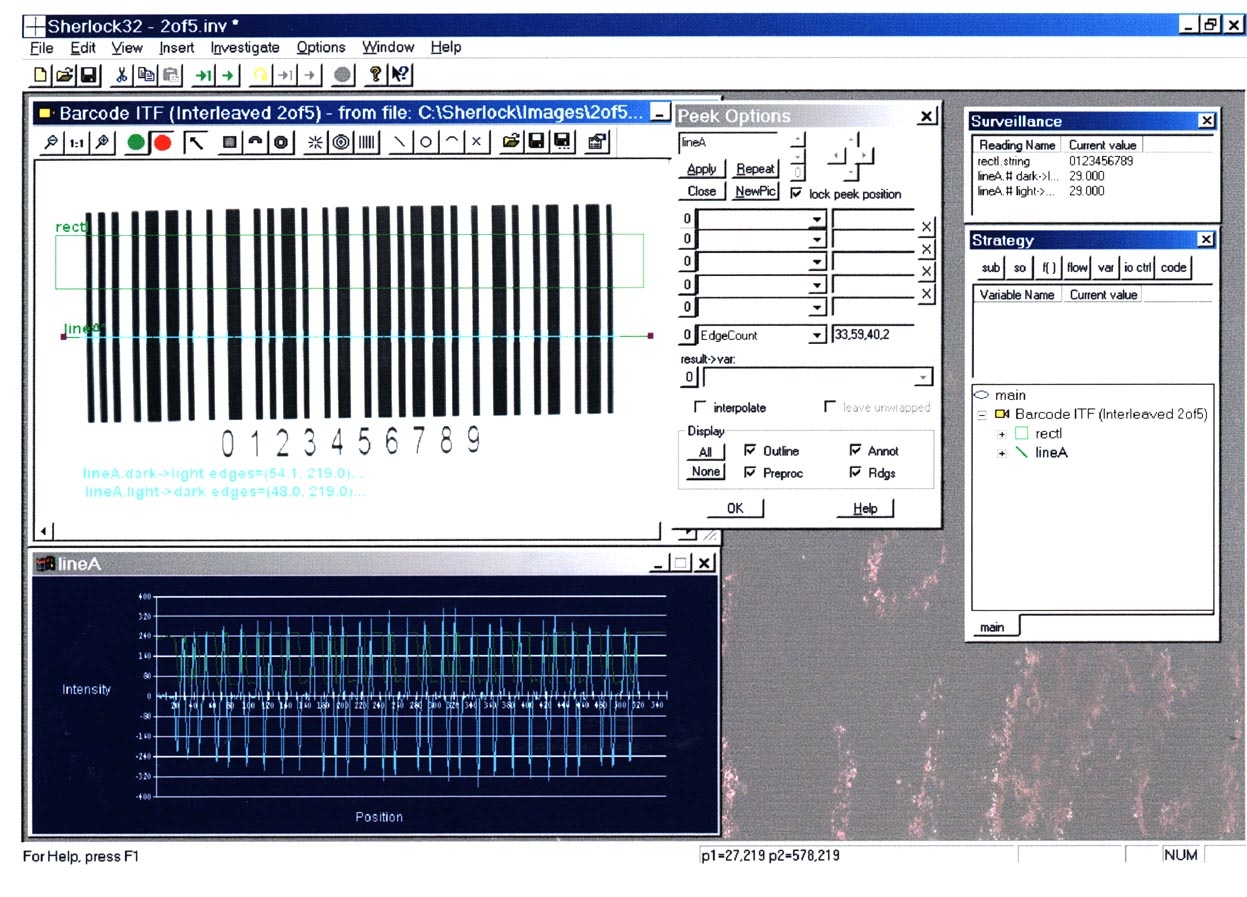

Feb 05, 2003 Sherlockâ„¢ Essential Windows®-based software environment allows users to configure applications without writing code via its graphical interface. Offerings include image capture, archiving, and playback from 1 camera; ability to define, process, and inspect regions of interest; and edge analysis capabilities. Other features include correlation search, blob analysis, pixel-to-real-world transformations, illumination control, and contrast detection.

Vision Appliance suits gauging applications.

Imaging Technology Inc.    Bedford, MA 01730
Dec 03, 2002 iGauge can start, load, or import previously configured solutions; adjust sensor focus, brightness, and contrast; and calibrate to real-world coordinates. Images/inspection parameters are recorded for process debug and analysis. It provides measurements to within 1/10th of 1 pixel on fixed or rotationally oriented parts, automatically compensating for lighting and contrast variations as well as lens and perspective distortion. Unit executes up to 1,800 measurements/min.

Machine Vision Software works with digital cameras.

Imaging Technology Inc.    Bedford, MA 01730
Nov 15, 2001 Sherlock 6.1 supports PC-Camera Link interface between image acquisition boards and standard digital cameras. Windows-based software package allows users to develop vision applications with no programming. It has library with hundreds of image processing, image analysis and machine vision functions. High-level adaptive pattern matching algorithms are available for search, OCR and barcode reading. Free demo version is available for download.
