Solar Grounding Connector works with copper, aluminum.

ILSCO    Cincinnati, OH 45227 1426
Apr 16, 2013 UL 467-Listed for grounding and bonding only, SGB-5 is manufactured from 6061-T6 aluminum alloy and features electro-tin plating. Stainless steel hardware promotes corrosion resistance, while serrations in conductor wire way cuts oxidation. Suitable for use with either copper or aluminum conductor, CSA-Certified product features raised lay-in wire way to accommodate various racking systems. Clamp design eliminates need to drill mounting holes into frame and conserves installation time.

Copper Compression Connectors feature slotted tang.

ILSCO    Cincinnati, OH 45227 1426
Apr 15, 2013 With slotted bolt hole in tang, Type CSLT Connectors satisfy hole spacing requirements from 5/8–1 in., offering installation flexibility in field. Slot also accommodates variations in stud spacing on bus bars or generator paddles without having to make modifications to bolt hole. Available in conductor sizes of 1,000 kcmil - #6, with bolt hole sizes ranging from ¼–½ in., connectors are UL Listed, CSA Certified, and suitable for use in circuits rated 35 KV or less.

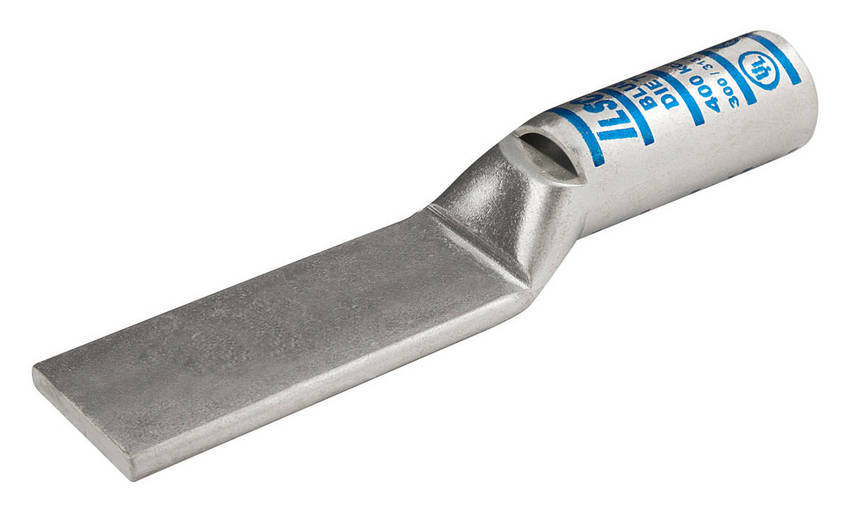

Long Blank Tang Compression Connectors offer sight hole.

ILSCO    Cincinnati, OH 45227 1426
Mar 27, 2013 SureCrimp® copper compression connectors have blank tang that affords installers flexibility for drilling of mounting holes to meet application requirements. Seamless copper tubing promotes connector endurance, while electro-tin plating helps protect against corrosion. Die stamped with wire size, die index number, and part number identifier, connectors feature lugs color-coded with permanent ink to accelerate identification of proper die number and proper crimp positioning.

Pre-Insulated Connectors serve space-constrained applications.

ILSCO    Cincinnati, OH 45227 1426
Feb 05, 2013 Available in X, T, and L configurations (shapes), NIMBUS®4FLEX connectors are dual rated for copper or aluminum conductors and help solve space-constrained wiring issues when working in small control panels or wiring troughs. Products accept building code as well as fine stranded conductor and come in 2-, 3-, and 4-port designs. Screw design renders these UL-Listed, CSA-Certified, and RoHS-compliant connectors reusable.

Copper Lay-In Connector expands solar grounding options.

ILSCO    Cincinnati, OH 45227 1426
Oct 25, 2012 UL-Listed and CSA-Certified, GBL-4DBTH conserves time by accelerating installation of ground lugs in solar field. This copper lay-in connector features stainless steel hex head screw, which ensures there is no drill drift when it is torqued down. It also reduces chance of damaging rack or panel.

Power Distribution Blocks carry UL, CSA approvals.

ILSCO    Cincinnati, OH 45227 1426
Oct 15, 2012 Intended for use with listed crimp-type lugs and suited for use with flexible conductor, PDS Power Stud Blocks are approved up to 840 A and 10,000 symmetrical amps. Select sizes have hinged cover to prevent accidental contact. Also available, PDM Power Stud Blocks are approved up to 760 A and 10,000 symmetrical amps. Most sizes come with hinged cover. PDS and PDM units are both recognized under UL Standard 1059 and CSA certified to Standard C22.2.

Aluminum Compression Connector serves wind energy applications.

ILSCO    Cincinnati, OH 45227 1426
Feb 07, 2012 Made of 1350 aluminum alloy, ALNN-1000-12-134 is designed for 1000kcmil conductor that connects vital wiring infrastructures of wind turbines. Electro-tin plating imparts corrosion resistance; 2-hole mounting tang ensures secure, tight connection; and chamfered barrel facilitates smooth conductor insertion. Suitable for use with copper or aluminum conductor, this UL Listed and CSA Certified product features narrow tang design and standard NEMA bolt hole pattern.

Bronze Waterpipe Clamps safely deliver required grounding.

ILSCO    Cincinnati, OH 45227 1426
Jun 28, 2011 Featuring silicon bronze hardware, Type GPL3 series fits IPS pipe sizes from ½-12 in. and accepts ground conductor sizes from 4-4/0. UL-Listed and CSA-Certified products, resistant to corrosion, rotate 90° for installation flexibility. Suitable for direct bury in earth or concrete, series supports use within industrial construction, maintenance, power plants, sub-stations, and anywhere perimeter fencing is required to be grounded.

Copper Compression Connectors come in 45°and 90° bent tang versions.

ILSCO    Cincinnati, OH 45227 1426
Feb 08, 2011 Offered in 45° and 90° bent tang configurations, SureCrimp® copper compression connectors are designed for angled surfaces, perpendicular connections, or stacking applications. Bent tangs allow flat, secure connection to mounting surface, even if wire is not be parallel to surface. Made from seamless copper tubing, connectors feature electro-tin plating and are die stamped with wire size and die index number. RoHS-compliant products are UL-Listed and CSA-Certified for AWG and Flex Wire.

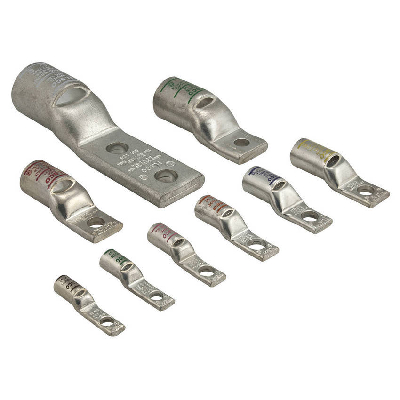

Compression Connectors suit tight fitting applications.

ILSCO    Cincinnati, OH 45227 1426
Nov 23, 2010 Made from high grade copper, SureCrimp® Narrow Tang Connectors provide conductive, low-heat connection. Seamless copper tubing optimizes connector endurance, while electro-tin plating offers protection against corrosion. RoHS-compliant, UL Listed, and CSA Certified for AWG and Flex Wire, all SureCrimp connectors are die stamped with wire size and die index number as well as part number identifier.
