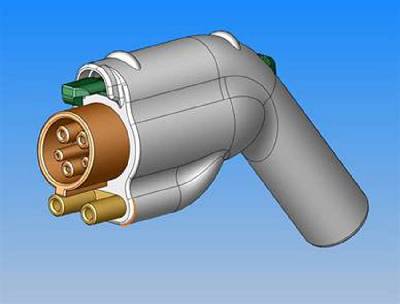

Electric Vehicle Connector is UEC, J1772, and GB-certified. .

ITT Industries, Cannon    Santa Ana, CA 92705-5612
May 23, 2012 Capable of delivering 75 A charge, EVC Series 2nd Generation J1772 Connector is designed for AC Level 1 and Level 2 charging systems for EV, EVSE, and plug-in hybrid electric vehicles. Consisting of J2CE Connector and J2IV inlet, system supports minimum of 10,000 cycles of mechanical operation and meets UL50 Type 3R/3S sealing for weather protection. Locking latch mechanism is exposed and raised from handle body, facilitating engagement to standard inlets.

Edge Card Connectors comply with PCMCIA standards.

ITT Industries, Cannon    Santa Ana, CA 92705-5612
Aug 14, 2008 Designed to meet PCMCIA industry's demand for 34 mm and 54 mm wide modules, RoHS-compliant 26-pin Edge Card Connectors and Cover Sets are available with multiple off-sets, customized end caps, host connectors, and single slot ejectors. Connectors offer lifespan of 10,000 mating cycles, and cover sets can be snapped together or ultrasonically welded. Applications include notebook/desktop computers, storage media, wireless/wired communications, set-top boxes, and biometric devices.

Audio Connectors feature one-touch quick connect/disconnect.

ITT Industries, Cannon    Santa Ana, CA 92705-5612
Aug 12, 2008 Available with 3-6 pin contact arrangements, RoHS-compliant Mini-XL Series accommodates both cable and panel-mount applications. Units feature socket insulator that minimizes vibration and electrical noise, disconnect latch lock, gold-plated contacts, and low reflectivity satin finish. Rear housing is available in plastic or metal for male and female plugs. Applications include recording equipment, microphones, amplifiers/speakers, medical instruments, and industrial controls.

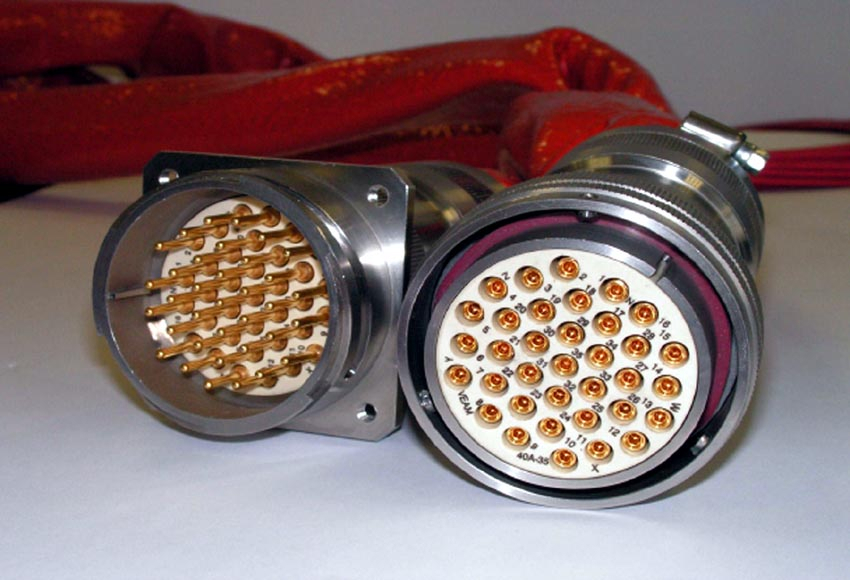

Circular Connectors withstand temperatures to 800°C.

ITT Industries, Cannon    Santa Ana, CA 92705-5612
Jun 06, 2008 Complying with European CEN/TS 45545 standards governing railway fire safety, VEAM CIR Series has exposure period of at least 15 minutes at ISO 834-1 heating curve, where maximum temperature is 800°C. Featuring stainless steel shell and ceramic insulation, units come with 35 size 12 poles at 40 A. Silicon rubber grommet ensures sealing, while contacts with metallic retention clip provide high integrity contact that does not release under extreme shock and vibration conditions.

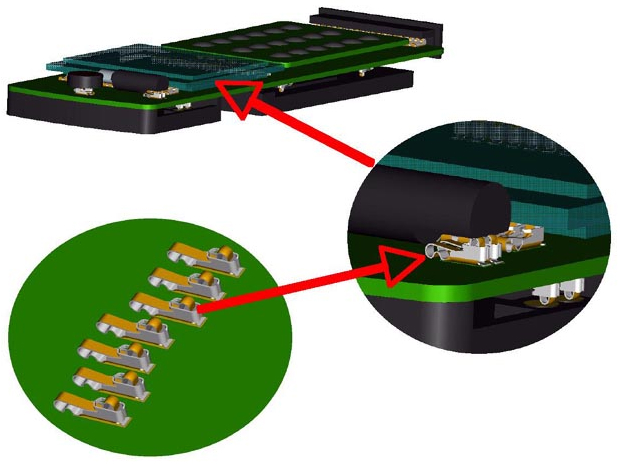

SFF Stamped Contact features life cycle of 3,000 operations.

3.ITT Cannon    Santa Ana, CA 92705
Jun 02, 2008 Designed for solderless component interconnection where miniaturization, reliability, and flexibility are required, Universal Contact addresses problem of uneven spring forces and poor contact resistance of connectors in portable devices. Pre-loading and anti-lift design optimizes contact force, while X-Y-Z movement capability maintains stable connection. Contact heights range from 1.3-4.0 mm (free height), and compressed heights as low as 0.9 mm are also available.

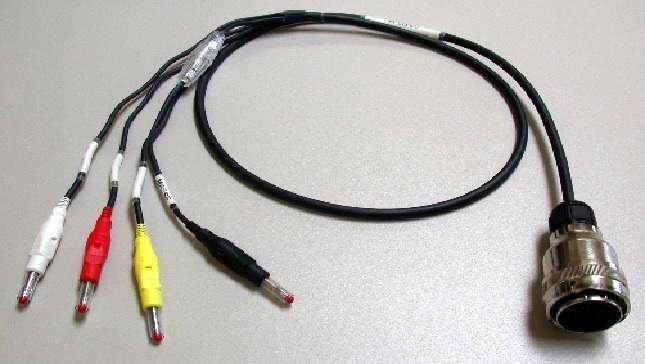

Miniature Circular Connector features rugged metal shell.

ITT Industries, Cannon    Santa Ana, CA 92705-5612
May 01, 2008 KPTC Series backshell connector includes IP67 sealing and gold-plated contacts for harsh environments, as well as bayonet coupling for mating and unmating. With lifespan to at least 500 mating cycles, connector is capable of integrating custom harnessing rigs and wide range of wire gauges. Contact current rating at 20°C is 7.5 A for size 20 connector and 22 A for size 16 connector, with contact resistance of 14.7 and 3.8 mW, respectively.

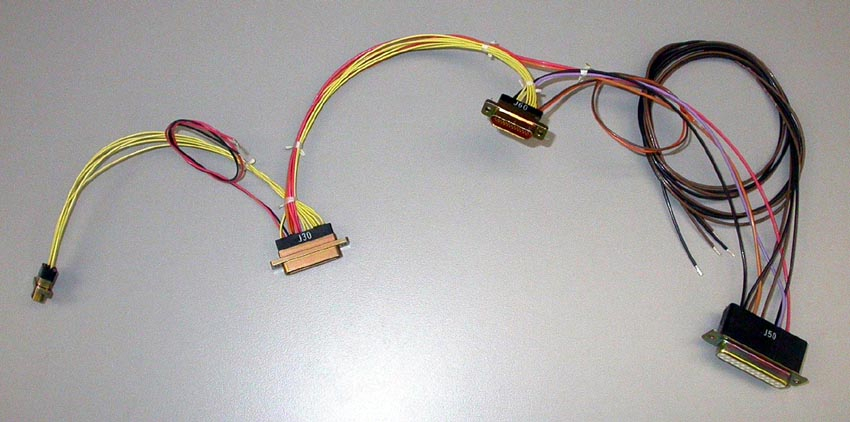

Micro Connectors are rated for operation to 200°C.

ITT Industries, Cannon    Santa Ana, CA 92705-5612
Apr 24, 2008 With ability to accommodate multiple conductor sizes and precision back molding, MDM Series high temperature connectors can be terminated in daisy-chain configurations within complex electronic instrumentation packages. Made of LCP thermoplastic, they accept #22 and #26 AWG wire sizes and offer combination of 0.050 and 0.100 in. spacing. Suited for geophysical and oil exploration and down-hole mapping, units feature twist pin contact system and crimped gold plated contacts.

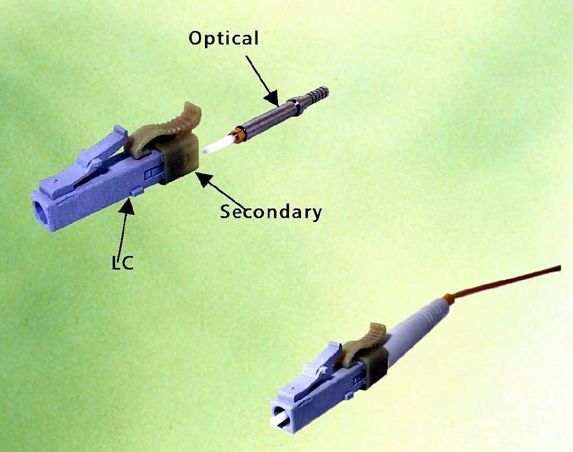

Fiber Optic Connector operates in harsh environments.

ITT Industries, Cannon    Santa Ana, CA 92705-5612
Apr 08, 2008 Meeting/exceeding Lucent 640-252-053 and Telcordia GR-326 requirements, Cannon PHD SuperLC fiber optic connector targets military/aerospace, telecom, and industrial data communications applications. Tunable optical cartridge functions as standalone optical element separate from connector housing, and accepts multi-mode or single-mode ferrules. Locking mechanism prevents thermal stress of latch, while crimp termination of cable to rear body ensures quick field repair.

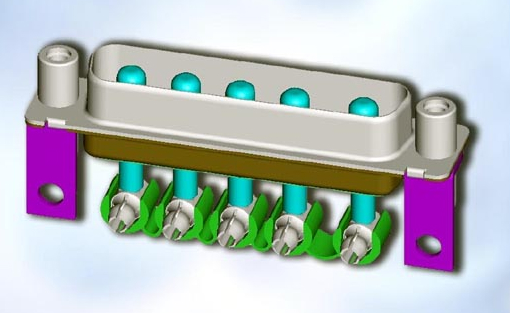

D-Sub Connectors suit telecom and power supply applications.

ITT Industries, Cannon    Santa Ana, CA 92705-5612
Mar 25, 2008 Featuring size 8 power contacts with optional integrated filter planar array, Combo D Series high power connectors ensure that 50/60 Hz frequency from power network does not interfere with operation of equipment. They accommodate right angle press fit termination and Eurostyle brackets that meet CECC75 301 802 specifications. Capable of withstanding 1,000 V peak, units offer maximum contact current rating of 40 A and passive filter array with 47 nF capacitance.

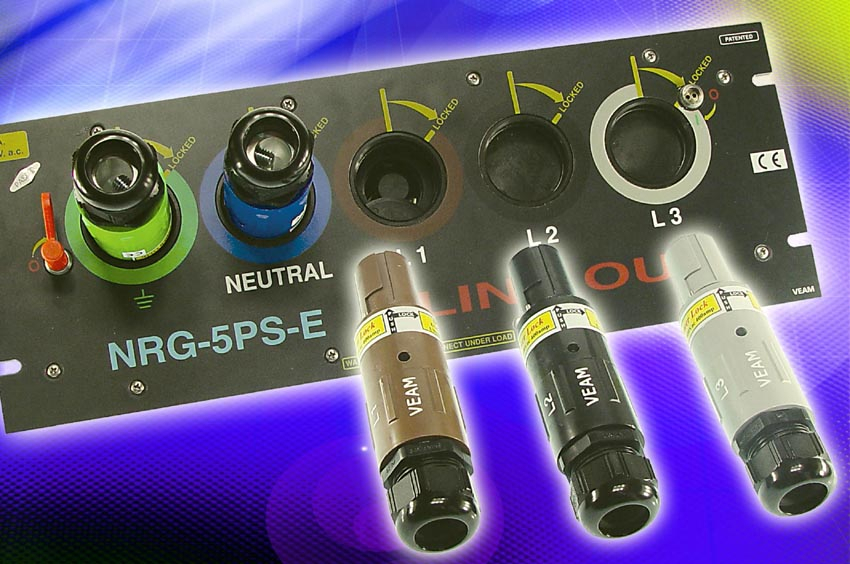

Sequential Mating System is available in 19 in. rack format.

ITT Industries, Cannon    Santa Ana, CA 92705-5612
Apr 19, 2007 VEAM NRG guarantees correct mating and unmating sequence for Powerlock power distribution connectors. Cam covers on each panel connector ensure proper sequence of ground, neutral, Phase 1, Phase 2, and Phase 3, and when connected, system can be secured by keylock, which when disabled, will cause circuit breaker to trip. Rated at 400 or 600 A, unit meets IP65 when mated, and is available as Panel Source or Panel Drain unit.
