Fan Drive, Controller Test Kit enables deployment in minutes.

Horton, Inc.    Roseville, MN 55113

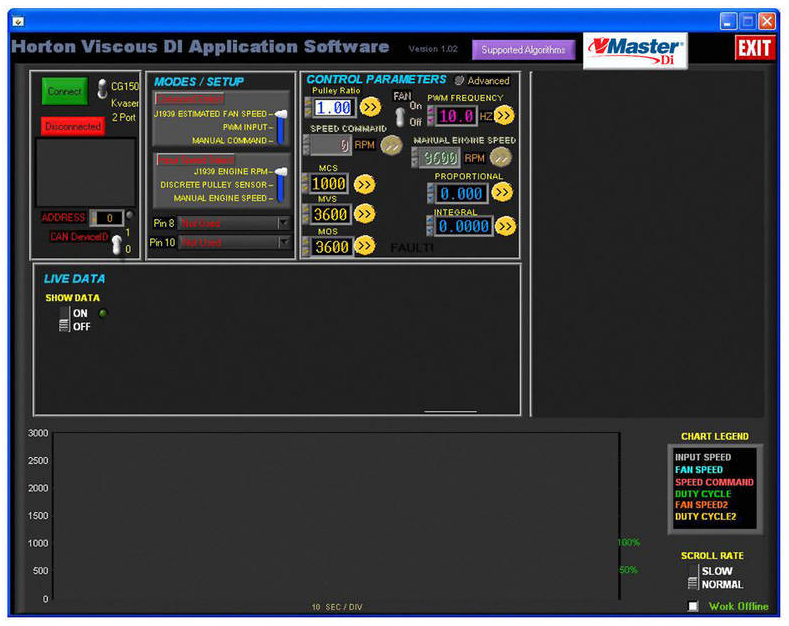

Apr 13, 2011 Viscous development kit for VMaster® Di and Stratis® Di Viscous Fan Drive and Controller Systems includes Windows®-based HVDI diagnostic and control application. Via HVDI software, user can connect to vehicle, adjust fan speed control loop, evaluate special modes, perform basic troubleshooting and diagnostics, and manually control fan speed. Kit also includes VMaster or Stratis Viscous Fan Drive, cooling fan, test wiring harness, Di Controller, and USB to CAN communication adapter.

Fan Drive Conversion Kit extends under-hood operating life,.

Horton, Inc.    Roseville, MN 55113
Apr 08, 2011 Featuring double row angular contact (DRAC) sheave bearing and air cartridge seal, DM Advantage(TM) On/Off Conversion Super Kit converts standard DriveMaster® On/Off Fan Drive to DM Advantage On/Off Fan Drive. Converted product has fail-safe design that promotes reliability and extended operating expectancy. Drives are suited for high-heat, under-hood applications, and kit contains everything needed to completely rebuild fan drive.

Hybrid-Flow Fans fit in compact engine compartments.

Horton, Inc.    Roseville, MN 55113
Apr 19, 2010 Designed to meet airflow demands of EPA10, Euro VI, and Tier 4 engines, WindMaster Revolution Fans combine features of axial-, mixed-, and radial-flow fan technology. Units come in 550 mm size for off-highway equipment and medium-duty trucks as well as 750 mm model for heavy-duty trucks and some off-highway equipment. Fans include large hub section that maximizes fan drive mounting options.

Fan Drives deliver up to 2,700 lb-in. torque.

Horton, Inc.    Roseville, MN 55113
Nov 16, 2009 In most conditions, Arctis(TM) Two-Speed Fan Drives are powered by eddy current, minimizing operating noise while maximizing available horsepower for auxiliary systems. When vehicle needs more cooling, fan drive springs actuate to run fan at full input speed. Featuring high torque clutch package and large air chamber for full disengagement, drives are suited for medium-duty trucks, buses, severe-service vehicles, and rear-engine cement mixers.

Modular Fans meet cooling requirements of reduced-emission engines.

Horton, Inc.    Roseville, MN 55113
Nov 05, 2009 Offered in various blade counts and configurations for first-fit applications, Shogun(TM) Modular Fans come in diameters from 16-22 in. and configurations of 6-10 equally spaced blades. Staggered blade configurations are also available, as are clockwise and counterclockwise rotation options. Featuring standard pilot sizes from 1-5 in. and pitch width of 2.44 in, fans offer max tip speed of 18,000 fpm and provide stable airflow up to 14,000 cfm.

Modular Fans are built to application requirements.

Horton, Inc.    Roseville, MN 55113

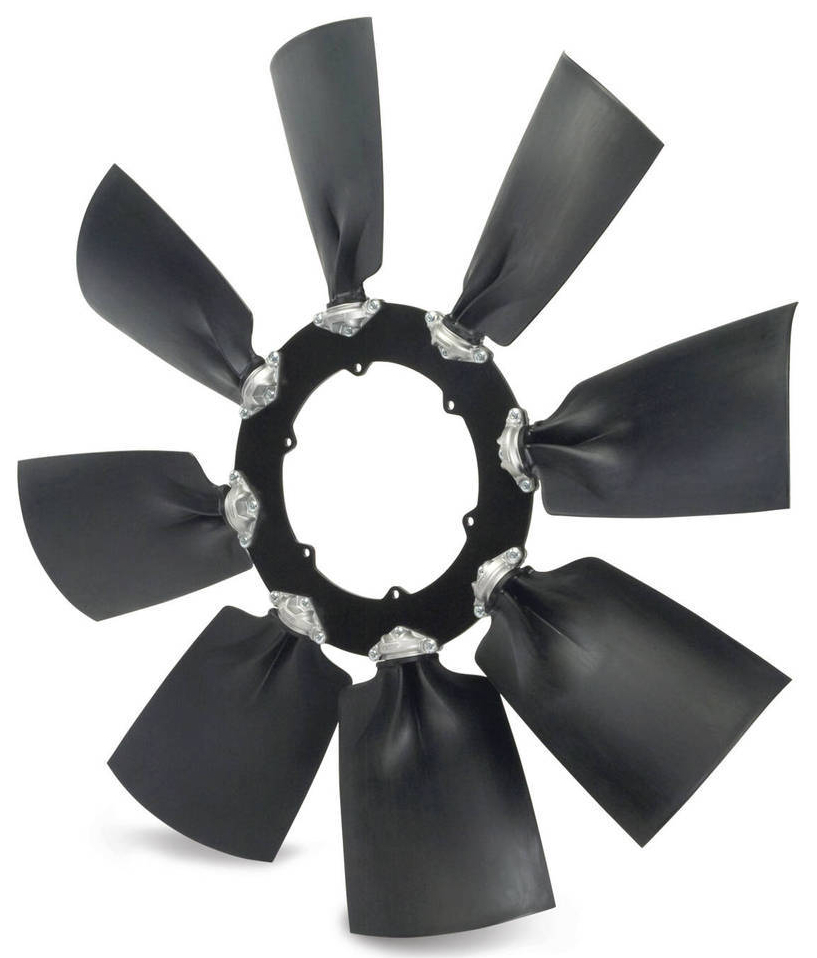

Oct 28, 2009 WindShift(TM) fans employ clamshell knuckles that clamp blades to 0.25 in. steel center disk at precise pitch angles. Customers specify blade configuration and pitch angle, center disk diameter, and rotation. Equally spaced blade configuration options are offered with 6, 7, 8, 9, 11, or 13 blades, and staggered blade configurations are available upon request. Pitch width ranges from 3.08-6.32 in. and fan diameters from 30-48 in. Rotation can be clockwise or counterclockwise.

Fan Drives and Controller reduce fuel consumption and noise.

Horton, Inc.    Roseville, MN 55113

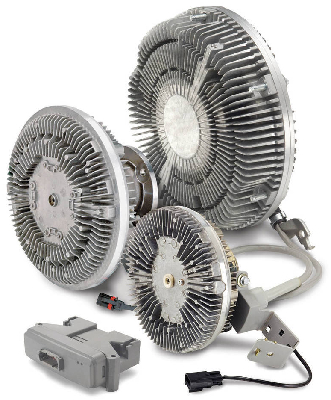

Apr 22, 2009 Designed to aid in cooling of hotter-running, reduced-emission engines, VMaster® and Stratis(TM) Di Viscous Fan Drive and Controller systems offer precision, variable-speed performance. Endurance-tested VMaster Di responds rapidly to changing cooling requirements and offers optimized torque transmission and fan idling speed. Stratis Viscous Fan Drives feature reservoir, actuator, and valve system that optimizes response time to increase airflow and cooling.

Fan Drives meet under-the-hood requirements.

Horton, Inc.    Roseville, MN 55113
Jun 04, 2008 Promoting engine performance and operating life, DM Advantage(TM) comes in on/off and 2-speed versions to meet demands for engine cooling, fuel savings, and noise reduction. Spring-engaged DM Advantage On/Off Fan Drive keeps engine coolant at consistent operating temperature and has fail-safe design. By alternating between eddy current and spring-actuated cooling, DM Advantage Two-Speed Fan Drive lends to efficient temperature control and accelerated engine warm-up in cold weather.
