Low-Height Reels target rescue applications.

Hannay Reels, Inc.    Westerlo, NY 12193 0159
May 20, 2013 With 14.5 in. max height, ELF Series is designed for compact spaces on rescue vehicles where specific height requirements must be met. Units feature 6 in. drum diameter, extending hose or cable life by meeting manufacturer's minimum bend radius. Gear motor, available in 12 or 24 V, provides slow, even rewind speed, eliminating need for speed-regulating device. Featuring 2-coat finish for durability, ELF Series is compatible with all 3 rescue reel types: air, twin hydraulic, and cord.

Electric Hose Reels offer remote control operation.

Hannay Reels, Inc.    Westerlo, NY 12193 0159
Feb 11, 2009 Available in models ranging from basic to full-function, 12 Vdc, 1/3 hp RM Reel Series handles single 3/8-½ in. ID hose. Units take power-out off reel, leave power-in on remote, and leave full-speed control functionality on base unit. Variable speed control lets user select optimal unwind/rewind speed, and full molded chain guards are standard. Offering 2,000 ft range, bi-directional remote control comes with belt clip and is both weather- and impact-resistant.

Cable Reel targets audio and video production applications.

Hannay Reels, Inc.    Westerlo, NY 12193 0159
Jan 29, 2009 Featuring slotted divider disc with 2 in. space for storage of short cable, mid-size AVD-3 reel is designed for use with cable in audio/visual settings including radio and television stations. It also features rugged steel and aluminum construction, side-mounted connector panel, ergonomic carrying handles, frame clips for stacking, and adjustable Cam-lock drag brake for locking cables in place. Caster wheel option allows user to maneuver around objects.

Spring Rewind Hose Reel operates at pressures to 3,000 psi.

Hannay Reels, Inc.    Westerlo, NY 12193 0159
Nov 24, 2008 Featuring non-sparking separate ratchet assembly unit composed of machined, forged, and stamped parts, N700 spring rewind hose reel accommodates single 3/8 or ½ in. I.D. hose. Standard inlet is 90° swivel joint with ½ in. female NPT threads. Unit can handle product temperatures from -20 to +225°F.

Hose Reel suits dual-hose applications.

Hannay Reels, Inc.    Westerlo, NY 12193 0159
Oct 25, 2006 Narrow-frame, spring rewind N600 Series accommodates dual hoses for separate materials such as gases and liquids or air and coolant. Non-sparking ratchet assembly locks reel at desired length of hose payout, and pull on hose unlocks reel for spring motor to retract it. Declutching arbor is included to prevent damage from reverse winding. Compact mounting base, along with narrow frame, allows reel to fit in limited-space work environments.

Hose Reels come in complete packages.

Hannay Reels, Inc.    Westerlo, NY 12193 0159
Aug 14, 2002 Hose Reel Packages include hose and hose stops. They are offered in low, medium, and high-pressure models, with grease and lube reels up to 5000 psi. Oxy/Acy reel with twin hose and ball stop package is also available.

Reel is suitable for pressure washing industry.

Hannay Reels, Inc.    Westerlo, NY 12193 0159
Jul 24, 2002 Constructed of 12 and 16 ga steel, with black powder coat finish, PW Series reel mounts to almost any pressure washer. Rated for pressures up to 4000 psi, it handles product temperatures from 20 to 250°F. Its 1/2 in. schedule 80 pipe hub delivers flow rates of more than 12 gpm at 15 fps. Features include adjustable split-bearing brake assembly, captive hose-guide roller assembly, and direct crank rewind, with permanently attached crank.

Electrical Cable Reel features compact frame.

Hannay Reels, Inc.    Westerlo, NY 12193 0159
Dec 21, 2001 NSCR700 electrical cable reel mounts in confined spaces for use with power tools, lights, machinery, and generators. Heavy-duty spring motor provides self-contained rewind power with non-sparking, locking ratchet assembly. NSCR700 houses 45 amp, 3-conductor, 600 V collector assembly, with #8 gauge wiring from collector ring to junction box. Equipped with 4-way roller assembly, it accommodates 50 to 120 ft of 14/3 to 8/3 AWG live cable.

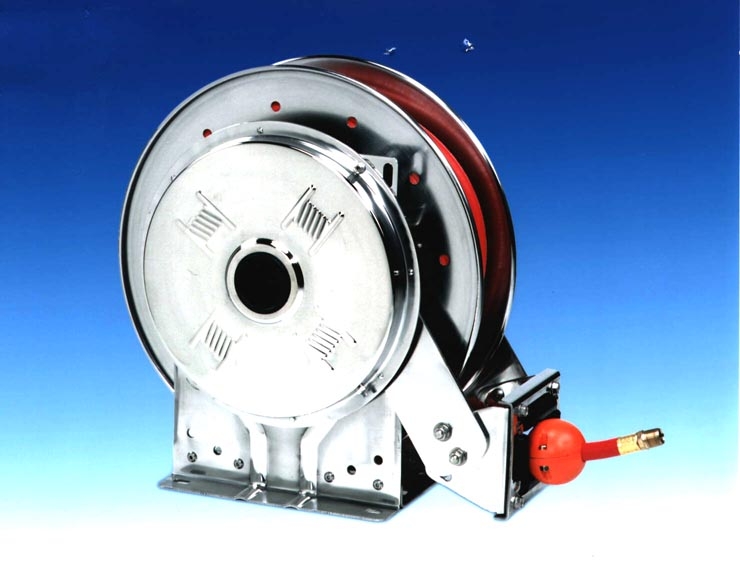

Hose Reel withstands harsh environments.

Hannay Reels, Inc.    Westerlo, NY 12193 0159
Dec 04, 2001 SSN700 series hose reel is made of 304 stainless steel frames, discs, and drums. It handles single hose from 1/4 to 1/2 in. ID, and has heavy duty spring motor with self-contained rewind power. Compact hose reel is mountable in tight spaces. Reel is suitable for applications such as washdown, chemical transfer, potable water, and fire protection in industrial settings.
