Spherical Bearing Inserts suit high temperature applications.

Graphite Metallizing Corporation    Yonkers, NY 10703
Nov 22, 2011 Made of self-lubricating graphite/metal alloy material, GRAPHALLOY® 845 Spherical Inserts are suitable for operations where temperatures reach or exceed 750°F. Inserts replace traditional ball bearings in standard pillow and flange blocks without need to alter or redesign equipment. Designed to not soften at high temperatures or extrude under load, inserts are used in ovens, furnaces, conveyors, glass lehrs, dampers, dryers, and other environments where oil and grease cannot be used.

Stainless Steel Cam Followers tolerate washdown applications.

Graphite Metallizing Corporation    Yonkers, NY 10703
Aug 10, 2011 Suited for wet or submersible applications, GRAPHALLOY® Cam Followers are corrosion resistant and do not contain oil or grease to harden, burn up, contaminate, or wash away. Units handle speeds up to 100 rpm and operate in temperatures up to 750°F. Made of self-lubricating graphite/metal alloy, cam followers do not deform under load and provide constant low coefficient of friction. Applications include industrial ovens, steel mill equipment, conveyors, kilns, and substrate dryers.

Babbit Bearings are usable in environmentally sensitive designs.

Graphite Metallizing Corporation    Yonkers, NY 10703
Apr 18, 2011 Environmentally safe to machine and use, GRAPHALLOY® Tin Based Babbitt bearings meet needs of high temperature applications up to 350°. They are available in NSF® certified grades for drinking water and are FDA accepted. Self-lubricating bearings are suitable for submerged and dry applications, and are also suitable for low temperature applications to -400°F.

Oil-Free Split Bushings suit screw conveyor applications.

Graphite Metallizing Corporation    Yonkers, NY 10703
May 20, 2010 Made of graphite/metal alloy formed from molten metal, graphite, and carbon, GRAPHALLOY® Type 1017 Self-Lubricating Bushings contain no oil to contaminate conveyed materials and can withstand dust, chemical attack, caustic liquids, and high temperature environments. GRAPHALLOY does not deform under load and maintains dimensional stability. Offering continuous-duty operation, bushings are suitable for applications where maintenance intervals are infrequent.

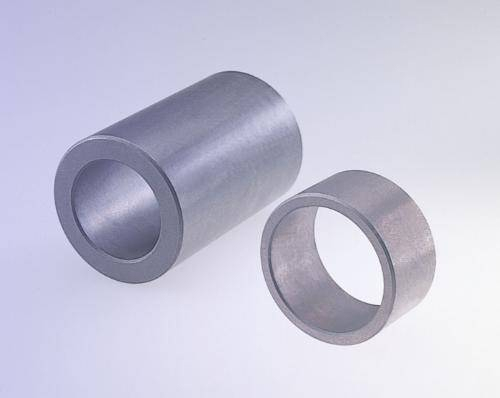

Self-Lubricating Bushings suit high temperature applications.

Graphite Metallizing Corporation    Yonkers, NY 10703
Apr 20, 2010 Made from graphite/metal alloy formed from molten metal, graphite, and carbon, 117 Series of GRAPHALLOY® bushings are available in 2 primary grades for high temperatures, both with FDA acceptance. Many grades of GRAPHALLOY® can handle temperatures to 750°F in air, while special grades provide service up to 1,000°F and higher in non-oxidizing atmospheres. Applications include bakery ovens, heat treat furnaces, and glass plants.

Self-Lubricating Bushings suit wet/submersible applications.

Graphite Metallizing Corporation    Yonkers, NY 10703
Nov 05, 2009 GRAPHALLOY® self-lubricating, corrosion resistant bushings are mounted in stainless steel flange blocks. Flange Blocks are available in 2- and 4-bolt configurations, come in wide range of base dimensions, and can accommodate shaft dia from 0.5-3.75 in. GRAPHALLOY® is suitable for temperatures of 750°F and above in non-oxidizing environments or with oxidation-resistant grades. Available in over 100 grades, they can be designed to fit variety of machinery.

Pillow Blocks solve underwater bearing problems.

Graphite Metallizing Corporation    Yonkers, NY 10703
Aug 06, 2009 GRAPHALLOY® Stainless Steel Pillow Blocks are available fitted with self-lubricating GRAPHALLOY bushings, which resist attack from water and water-soluble chemicals, do not require lubrication, and are corrosion-resistant. GRAPHALLOY graphite-metal alloy exhibits chemical, mechanical, and tribological properties that provide constant, low coefficient of friction. In addition to being self-lubricating, material withstands temperatures to 1,000°F and can survive dry running pumps.

Bronze Bushings/Bearings do not contain lead.

Graphite Metallizing Corporation    Yonkers, NY 10703
Jun 22, 2009 GRAPHALLOY® bushings and bearings are nongalling and are dimensionally stable even when submerged, under load, or experiencing wide temperature swings. Able to withstand temperatures from cryogenic to +1,000°F, bearings and bushings are self-lubricating, suiting them for applications where maintenance operations are infrequent or difficult. They are suitable for deep-well and water pump applications and are also FDA-approved for food-grade applications.

Pillow Block Assemblies suit high temperature applications.

Graphite Metallizing Corporation    Yonkers, NY 10703
May 12, 2009 Featuring low coefficient of friction, Model 163 GRAPHALLOY® pillow blocks withstand wash downs and submerged conditions, and eliminate need for lubrication. They are chemically resistant and non-galling, and their rugged design is suited for moderate speed applications under high or low load conditions. Available in cast iron or stainless steel, units are suited for use in plating tanks and industrial washers. Cast iron split-angle housing is also available.

Bushing Material helps protect pumps and prolong pump life.

Graphite Metallizing Corporation    Yonkers, NY 10703
Feb 10, 2009 Used in manufacture of pump bushings and other critical-wear parts, GRAPHLON GM 860® polymer/graphite-based material provides abrasion resistance in harsh environments. It has been developed specifically for sump pumps and river water service pumps where abrasives are present. Material also handles limited run dry requirement of these applications.
