Transmitter supports batch controller capabilities.

GF Piping Systems    Tustin, CA 92780-7258
Apr 02, 2013 Signet 9900 Transmitter (Generation II) supports multiple parameters, including flow, pH/ORP, conductivity/resistivity, salinity, temperature, pressure, level, and 4–20 mA signals, and batch systems. In addition to saving up to 10 batch sizes, capabilities include customizable batch names, entry of K-factors for each batch, confirmation for preventing accidental batch starts, manual batch feature for topping off, override batch size function, and batch count indicator.

Dissolved Oxygen Sensor utilizes optical technology.

GF Piping Systems    Tustin, CA 92780-7258
Aug 31, 2012 Incorporating optical sensor cap that is factory calibrated and requires no field calibration, Signet 2610 eliminates need for replacement of membrane and reference solutions when monitoring dissolved oxygen levels in wastewater treatment systems. Unit features measurement range of 0-20 mg/L with accuracies of ±0.1 mg/L for 0-8 mg/L and ±0.2 mg/L for 8-20 mg/L. Built-in Modbus RS485 and 4-20 mA current loop outputs provide interface to existing control systems.

Metering Ball Valve precisely controls flow of chemicals.

GF Piping Systems    Tustin, CA 92780-7258
Jul 31, 2012 Available in 3/8 and ½ in. sizes, Type 523 Valve Series features V-notch ball with 180° turn rotation capability, providing optimal flow control and resolution. Design also includes circular scale that enables reading from all possible angles. Offered in PVC, Polypropylene, and PVDF Standard materials, micro-doser valve features integrated stainless steel mounting inserts, PTFE ball seals, and built-in threaded inserts that facilitate installation. CPVC and ABS are available on request.

Double Containment Vinyl Piping offers simple installation.

GF Piping Systems    Tustin, CA 92780-7258
May 11, 2012 Meeting demands for pressure-rated double containment system for transporting hazardous liquids, Double-See(TM) has 3D thermal expansion compensation feature as well as closure coupling design that allows conformance to ASME B31.3 test inspection requirements. Versatile options, assembled and tested fittings, and pipe cut-length guidance system simplify installation. Primary and secondary pipes, available in PVC and CPVC, are cut to same length and can be joined simultaneously.

Modular Transmitter features multi-parameter capabilities.

GF Piping Systems    Tustin, CA 92780-7258
Jan 31, 2012 Offered in panel or field mount versions, Signet 9900 SmartPro(TM) Transmitter provides single-channel interface for multiple parameters including flow, pH, ORP, conductivity/resistivity, pressure, temperature, level, and salinity. Backlit display, measuring 3.90 x 3.90 in., shows separate lines for units, main, and secondary measurements as well as dial-type digital bar graph. HART module allows communication with any HART® enabled device, as well as remote adjustment of 4 and 20 mA settings.

Ultrasonic Flow Meters/Loggers accommodate pipe sizes from ½ -78 in.

GF Piping Systems    Tustin, CA 92780-7258
Oct 06, 2011 Incorporating Transit-Time DSP measurement capability, portable Portaflow 220/330 and fixed installation Ultraflo 3000/4000 display instantaneous fluid flow rates or velocity and totalized values. Products, able to output data directly to PC/printer or store data in internal memory, provide sampling resolution of 50 psec as well as continuous single level indication. Devices also offer bi-directional velocity range of 0.33 fps, with max velocity of 65 fps.

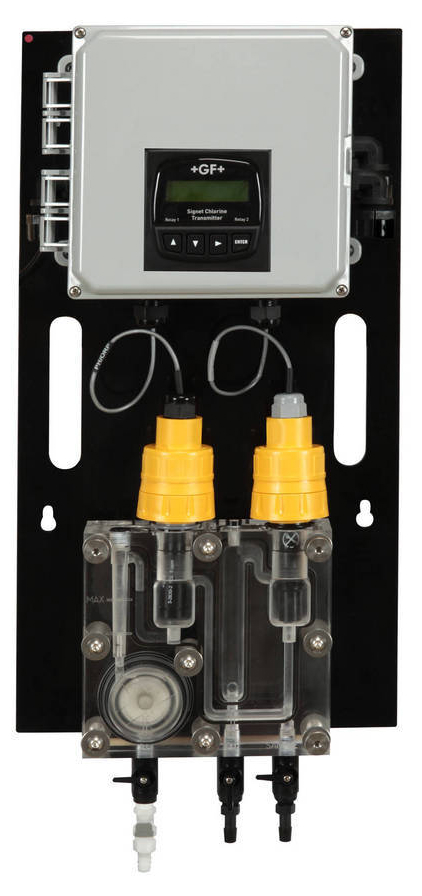

Free-Chlorine Analyzer integrates all necessary components.

GF Piping Systems    Tustin, CA 92780-7258
Jun 02, 2011 Designed with amperometric sensing technology, Signet 4630 incorporates clear flow cell, flow regulator, sensors, filter, and rotameter in one unit. Turnkey solution, capable of measuring free chlorine in real-time and without reagents, also features pre-wired electronics, 120 Vac power plug, two 4-20 mA outputs, and 2 mechanical relays. Furthermore, ability to have manual or continuous pH compensation promotes reading accuracy. Product only requires 3/8 in. influent and drain tubing.

Piping Systems feature large diameter molded fittings.

GF Piping Systems    Tustin, CA 92780-7258
Nov 10, 2010 Designed to handle broad range of fluids, PVC and CPVC Schedule 80 Piping Systems are available with 45° and 90° elbows, tees, coupling, flanges, reducer bushings, and caps in 10 and 12 in. sizes. Systems offer chemical and corrosion resistance, enabling use with acids, alkalis, and alcohols. PVC and CPVC thermoplastics will also not rust, scale, or pit. Conforming to UPC requirements, both pipe and fittings meet requirements of NSF 14 and NSF 61 as suitable for potable water.

Industrial Polyethylene is suited for process industry.

GF Piping Systems    Tustin, CA 92780-7258
Nov 10, 2010 Designed for broad based piping system applications, GF PE100 comes in combination of specifiable pipe, fittings, valves, and fusion technologies. Mechanical strength and resistance to impact, chemicals, and abrasion meet needs of industrial process applications. While pipe dimensions are 2-36 in. for SDR11 and 14-36 in. SDR17, fitting dimensions are 2-12 in. for SDR11 (Molded), 14-36 in. for SDR11 (Fabricated), and 14-36 in. for SDR17 (Fabricated).

Pneumatic Diaphragm Valves suit control applications.

GF Piping Systems    Tustin, CA 92780-7258
Nov 10, 2010 Ranging from ½-2 in., DIASTAR Valves offer linear flow and are available in wide selection of materials for chemical resistance. Units feature non-corrosive central union nut with pressure rating up to 240 psi. Rotatable air connections and pre-tensioned spring-kits facilitate installation and maintenance. Able to handle slurries and abrasive media, valves are suited for chemical process industry, microelectronics, water treatment, and food and beverage applications.
