Low-Voltage Switchgear enhances arc-flash protection.

GE Co., GE Consumer Products    Louisville, KY 40225
Jan 25, 2010 Promoting system reliability and arc flash protection, AKD-20 utilizes EntelliGuard® G low-voltage circuit breakers, available from 800-5,000 A with fault ratings up to 150 kAIC, and EntelliGuard TU Trip Unit. Optimized footprint can use 22, 30, or 38 in. section sizes when possible, and lack of ventilation openings protects operators from vented hot ionized gases. Also included, ZSI system lets multiple breakers protect their zones instantaneously while maintaining full selectivity.

LED Module offers replaceable solution for luminaries.

GE Co., GE Consumer Products    Louisville, KY 40225
Jan 22, 2010 Puck-shaped LED module twists clockwise into fixture housing socket to provide thermal, electrical, and mechanical connectivity. With product, entire fixture does not have to be replaced due to component failure. Unit includes LED driver circuitry and chip as well as wattage-adjust switch that supports 3 different light level/wattage options.

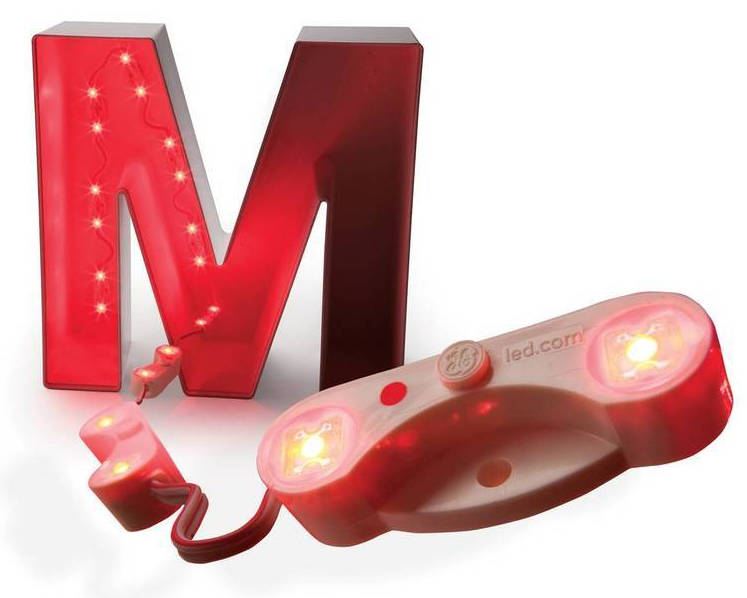

LED Lighting System targets channel letter signage.

GE Co., GE Consumer Products    Louisville, KY 40225
Jan 22, 2010 Tetra® MAX LED Lighting System is 2 LED module red system that operates at .99 W/sq ft and offers life of 50,000 hr. It utilizes single power supply, which is used for all colors and allows up to 54 ft for 2 LED module system and 80 ft for 3 LED system. Overmolded design keeps damaging moisture out to protect LED components from failure. Environmentally friendly, 12 V system is RoHS-compliant and UL-recognized.

Metal Halide Lamps target event lighting industry.

GE Co., GE Consumer Products    Louisville, KY 40225
Jan 22, 2010 Producing 1,200 W, SHOWBIZ® CSR1200 STAYBRIGHT® CSR1200/S/DE/60 and CSR1200/S/DE/72 provide greater than 85% beam lumen maintenance at 400 hours of operation in most major moving-lights fixtures. Double-ended, short-arc units can create daylight color temperatures for stage productions, concerts, or architectural lighting. With rated life of 750 hours, lamps come in 6,000 K with CRI of 85 and 7,200 K with 75+ CRI. They can be used on electronic or AC magnetic ballasts/igniters.

Remote Racking Device employs medium-voltage safety feature.

GE Co., GE Consumer Products    Louisville, KY 40225
Jan 21, 2010 Meeting needs of safety-conscious maintenance personnel, Low-Voltage Switchgear Remote Racking Device lets operators move up to 30 ft away from draw-out breaker during racking procedures. Push of start button draws circuit breaker out with 115 V motor in gearbox, and another push racks circuit breaker back into place. Cable-connected, handheld device permits remote control of gearbox and racking motor and incorporates motor directional switch and circuit breaker reset toggle switch.

Refrigerated Case Lighting uses LEDs to conserve energy.

GE Co., GE Consumer Products    Louisville, KY 40225
Jan 21, 2010 Immersion(TM) LED Refrigerated Display Lighting RV30 Series runs on 29 W per door, reducing case lighting energy consumption and compressor workload. Intended for retail environments, lighting has 50,000 hr rated life is available in 3,500 K, 4,100 K, and 5,000 K color temperatures that deliver up to 1,150 lux. Optic design keeps light directed on displayed packages while reducing glare and light spill. Lights are optimized for 4-6 in. throw distance to enable 70% light level uniformity.

UV Germicidal Lamps disinfect air, water, and surface areas.

GE Co., GE Consumer Products    Louisville, KY 40225
Jan 21, 2010 Linear fluorescent UV germicidal lamps, compatible with most existing ballasts, produce UV-C energy at peak wavelength of 254 nm. In preventing DNA replication, lamps inactivate bacteria, mold, and viruses. Respectively, 8,000 and 9,000 hr rated G55T8HO (55 W T8) and G36T5 (39 W T5) offer 18 and 12 W UV output. Single-ended models, rated to 9,000 hr, include 11, 16, 36, and 64 W T5s with respective UV outputs of 2.2, 3.4, 12.0, and 25.0 W.

Effects Controller supports Tetra LED lighting systems.

GE Co., GE Consumer Products    Louisville, KY 40225
Jan 20, 2010 Tetra® FX Special Effects Controller lets designers create dynamic LED lighting effects such as dimming, sequencing, flashing, chasing, color changing, and color mixing. Device's address selector allows creation of up to 512 unique controller addresses, while 4 output banks support up to 4 different lighting products. Connected to standard DMX 512 controllers, unit can be used with 12 or 24 V Tetra LED lighting systems. Multiple controllers can be set up using Y-splitter cable.

LED Light Fixture suits areas with low mounting heights.

GE Co., GE Consumer Products    Louisville, KY 40225
Jan 20, 2010 Supplied in die-cast aluminum housing, GE Evolve(TM) LED Garage Light Fixture is suited for parking garages, warehouses, walkways, stairways, and service stations. It needs no warm-up time and comes in 80/110/125 W versions with 3 opticals for general areas, entrances, and exits. Through 9 photometry solutions, light source utilization creates uniformity and control. High-brightness LEDs, with 70 CRI and 5,700 K color temperature, minimize comparative lumen loss over 50,000 hr life.

Architectural/Retail Lighting maximizes optical control.

GE Co., GE Consumer Products    Louisville, KY 40225
Jan 19, 2010 SHOWBIZ® CMH®150PAR56 lamp offers 3 beam spreads - narrow spot, medium flood, and wide flood - as well as 3,000 K and 4,200 K color temperatures with respective 80+ and 90+ CRI. Along with GE ConstantColor® technology, product features 3-piece arc tube that contributes to lamp-to-lamp color uniformity and can operate in any position. Rated up to 90 lm/W, lamp delivers up to 240,000 MPBC (mean peak beam candelas) with 150 W and has 8,000 hr life.
