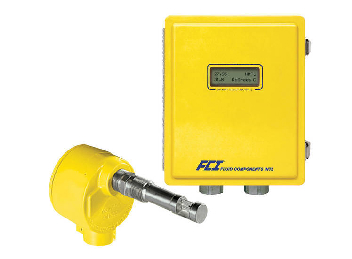

Thermal Mass Flow Meter offers in-situ calibration.

Fluid Components Intl.    San Marcos, CA 92069 5115
Mar 09, 2012 With VeriCal Calibration Verification System, ST100 Series combines advanced measurement capability with in-situ calibration for flare gas applications aboard offshore platforms, land-based oil/gas facilities, and chemical plants. Basic insertion style air/gas meter features thermal flow sensing element that measures flow from 0.25-1,000 SFPS with accuracy of ±0.75% of reading, ±0.5% of full scale. Designed for service up to 850°F, meter is available with integral or remote electronics.

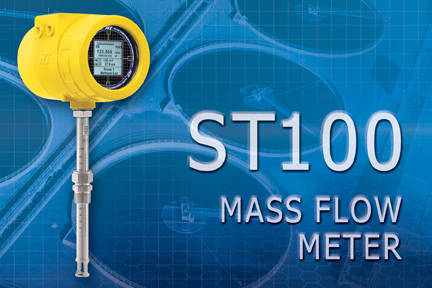

Thermal Gas Mass Flow Meter suits water/wastewater treatment.

Fluid Components Intl.    San Marcos, CA 92069 5115
Aug 01, 2011 Featuring plug-in card replacement that can be changed out in field to adapt to plant's network communication needs, Series ST100 measures gas mass flow rate, total flow, temperature, and pressure, depending on model. Basic insertion style air/gas meter has thermal flow sensing element that measures flow from 0.25-1,000 SFPS with accuracy of ±0.75% of reading and ±0.5% of FS. Graphical, multivariable, backlit LCD continuously displays all process measurements and alarm status.

Flowmeter measures flare gas for oil/gas offshore platforms.

Fluid Components Intl.    San Marcos, CA 92069 5115
Apr 01, 2009 Featuring microprocessor-based programmable transmitter and thermal mass flow sensing element with 316 SS and nickel-braze construction, Model GF90 measures combustible hydrocarbon waste gases with sensitivity down to 0.25 sfps. Transmitter can store up to 3 calibration groups, which can be independently configured for calibration range, fluid, and switch point setting. Designed for complex multi-gas or variable flow processes, meter offers accuracy of +1% of reading plus 0.5% of scale.

Mass Flow Meter withstands temperatures up to 850°F.

Fluid Components Intl.    San Marcos, CA 92069 5115
Nov 21, 2008 Suitable for pipe sizes from 2.5-120 in., Model ST98HT measures air/gas mass flow rate, totalized flow, and temperature in single instrument. Insertion-style unit is designed with direct mass flow sensing element that is accurate to ±1% of reading, and ±0.5% of full scale, with repeatability of ±0.5% of reading. Operating over flow range from 0.75-600 sfps with turndown ratio up to 100:1, meter provides linearized 4-20 mA output and HART 2-way communications.

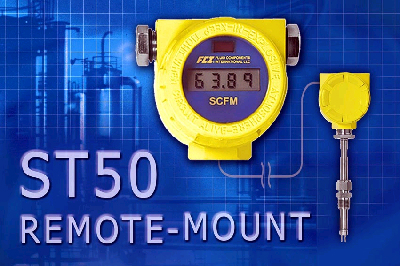

Thermal Mass Flow Meter suits hazardous areas.

Fluid Components Intl.    San Marcos, CA 92069 5115
May 15, 2008 Featuring intelligent design with no-moving parts, remote mount ST50 measures air flow from 1-125 sfps, nitrogen from 1-150 sfps, and compressed air from 4-400 msps. Accuracy is +1% of reading and +0.5% of full scale. Transmitter, which includes full digital display, can be mounted up to 50 ft away from thermal mass flow sensor in process piping and connected via two 0.50 in. FNPT cables. Housed in aluminum, epoxy-coated enclosure with NEMA 4X rating, meter operates from 40 to 100°F.

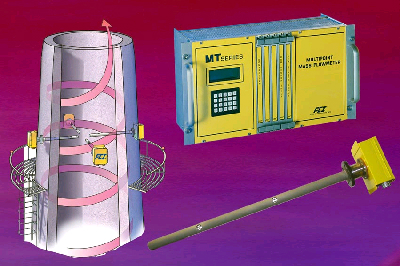

Multi-Point Flow Meter withstands abrasive environments.

Fluid Components Intl.    San Marcos, CA 92069 5115
Jun 22, 2007 Designed for CEMS pollution control applications, Model MT91 has chromium-carbide coating that protects it from dirty, abrasive, and hot particulates. Unit measures complex stack gas flows in accordance with clear air regulatory requirements and provides signal outputs of 4-20 mA, 0-5 Vdc, 1-5 Vdc, and 0-10 Vdc. Able to operate in environments up to 850°F and in line sizes greater than 24 in., meter features turndown range from 5:1-100:1 and flow sensitivity from 0.25-150 sfps.

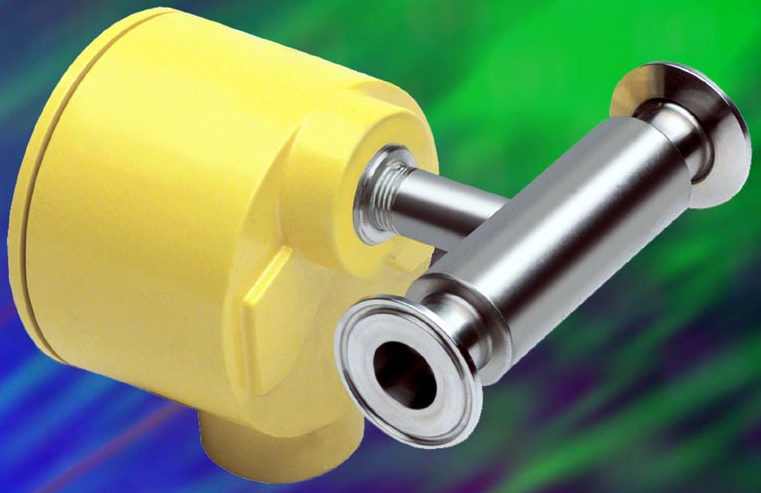

Sanitary Flow Switch features non-intrusive design.

Fluid Components Intl.    San Marcos, CA 92069 5115
Jun 11, 2007 Suited for control of liquids, specialty gases, or air in high-purity and sanitary processes, inline NuTec® FS2000L employs solid-state, temperature-compensated thermal mass flow sensor that installs flush inside pipe ID. General-purpose switch is available with electropolish finish of 20 or 10 Ra for service in line sizes from 0.5-2.0 in. It is accurate to ±3% of alarm set point +0.25% of set point range over any 100°F temperature span. Response time is adjustable from 0.5-2.5 sec.

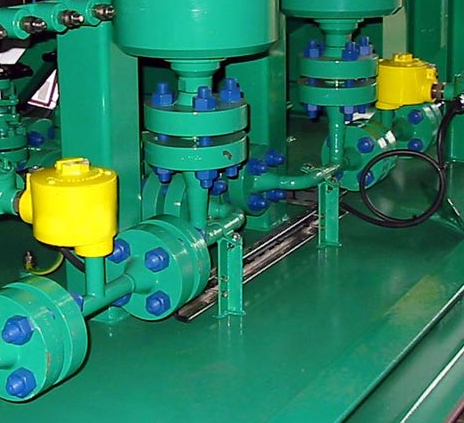

Flow Switch minimizes pump maintenance.

Fluid Components Intl.    San Marcos, CA 92069 5115
Nov 15, 2006 FlexSwitch® Flow/Level/Temperature (FLT) Pump Protection Flow Switch helps prevent overheating caused by sudden, unexpected reductions in media flow rates. Capable of monitoring substances such as liquids, gases, and slurries, solid-state product offers dual alarm capability for low-flow (0.01-3 fps) and dry running conditions. Dual-function instrument, specified in insertion or in-line styles, features two 6 A relay outputs assignable to flow, level, or temperature.

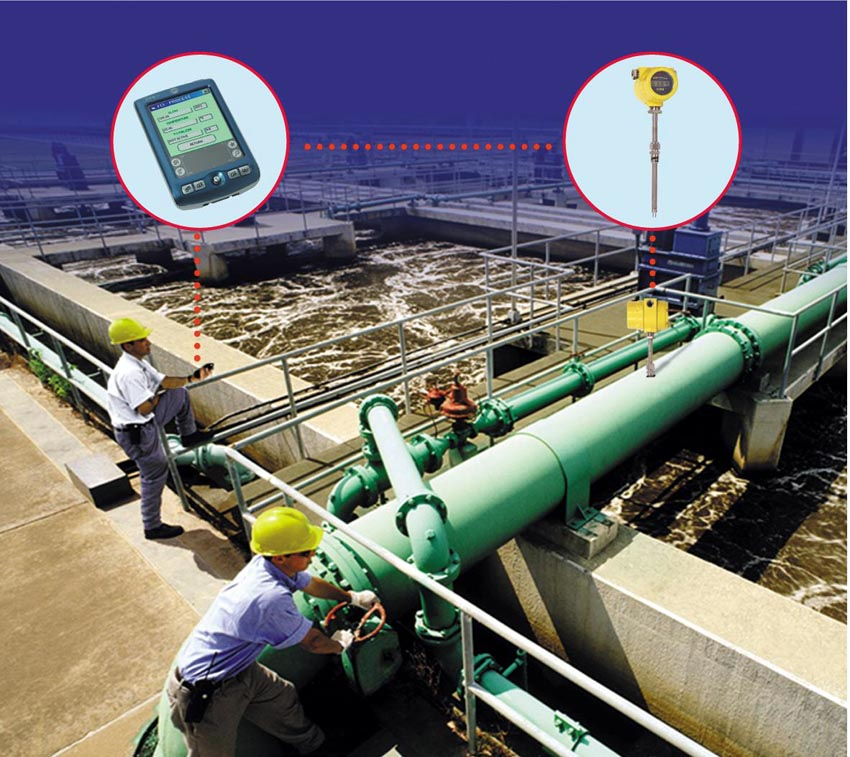

Air/Gas Flow Meter offers wireless communication option.

Fluid Components Intl.    San Marcos, CA 92069 5115
Aug 31, 2006 Suited for wastewater aeration treatment applications in line sizes from 2-24 in., ST50 has built-in wireless IR technology for obtaining measurements, making setting changes, and reading trouble shooting codes from PDA. It comes with interface software for download into any Palm-OS based PDA and utilizes temperature-compensated, thermal dispersion flow sensing element. Along with various I/O features, solid-state meter has single-tap point inserted design.

Flow Meter is offered with wireless communication option.

Fluid Components Intl.    San Marcos, CA 92069 5115
Aug 30, 2006 Designed for use in wastewater lines from 2-24 in., ST50 offers wireless IR option that allows technicians with PDA to obtain measurements, make setting changes, and read troubleshooting codes without opening instrument. Housed in epoxy-coated enclosure, it withstands operational pressures up to 500 psig and media temperatures up to 250°F. Unit measures air flow from 1-125 SFPS, nitrogen from 1-150 SFPS, and compressed air from 4-400 SFPS.
