Hall Effect Sensor Coded Switch withstands harsh environments.

Elma Electronic Inc.    Fremont, CA 94538
May 10, 2013 Suitable for use in presence of dust and/or vibration, X4 Series features 5-bit gray code output with 12 or 24 positions as well as parallel analog and PWM outputs. Unit is available in indexing angles of 30° or 15° with selectable switching torque from 1.5–20 N cm. Featuring IP68 rating with optional sealing, switch operates from -30 to +85°C. Stainless steel shaft and zinc housing make it suitable for high humidity and salt atmosphere environments.

Liquid Cooled ATR Chassis accepts 6U VPX boards.

Elma Electronic Inc.    Fremont, CA 94538
Dec 07, 2011 Measuring 12.52 x 10.12 x 10.625 in., ATR Chassis is equipped with independent dual liquid cooled side walls and holds 6U conduction cooled boards with 1 in. pitch per VITA 48.2 and VITA 65. All-aluminum unit features COTS/MOTS modular design according to ARINC 404A. Operating from -55 to +70°C and at altitudes up to 75,000 ft, chassis is available with 6U OpenVPX backplane, which provides 7 slots, each cooled up to 100 W. VME, VME64x, VXS, cPCI and custom backplanes are also available.

OpenVPX Reference System supports FPGA development.

Elma Electronic Inc.    Fremont, CA 94538
Nov 11, 2011 Designed to ensure interoperability among 3U VPX boards, 3U Model VPX-300 is built around Virtex-6 FPGA-based front end processor card and uses 7-slot backplane profile per VITA 65 BKP3-CEN07-15.2.3-n. Backplane profile provides 2 clusters through data and control plane switch, handling Gigabit Ethernet and PCIe links, respectively. Clusters are designated Front End, which contains processor board and FPGA elements, and Back End, which contains another processor board, graphics, and GPGPU element.

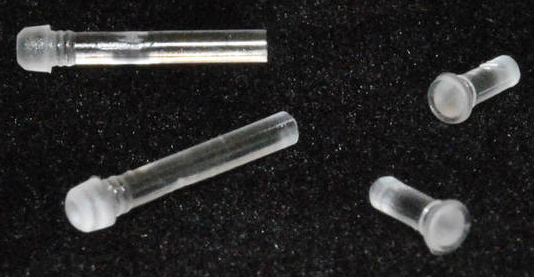

Waterproof Light Pipes meet IP68 specifications.

Elma Electronic Inc.    Fremont, CA 94538
Sep 23, 2011 Offered with range of options, waterproof LED light pipes suit applications subject to humidity/condensation, rainfall/snow melt, or direct exposure to water. Watertight design is achieved via shaping of light pipe's outer surface, standard lengths vary from 4.5-100 mm, and ambient temperature range for guides is -20 to +50°C. Range of standard shapes are available in addition to customized versions, and various launch surface options and specific colors are available upon request.

Storage XMC Board uses CFast flash technology.

Elma Electronic Inc.    Fremont, CA 94538
Sep 22, 2011 Designed for high-speed data access and system boot operations, single-width 9289 XMCStor provides 1 front removable drive and 1 internal drive with combined storage capacity of 64 GB. Unit delivers board level data transfer rates up to 130 MBps (write) and 140 MBps (read). Targeted for military and industrial applications in rugged environments, XMCStor is available in standard temperature range of 0-55°C as well as extended temperature of -40 to +85°C.

ATCA Mobile Computing System targets command centers.

Elma Electronic Inc.    Fremont, CA 94538
Jun 23, 2011 Designed to address compute-intensive requirements in command and control data center applications, ATCA7365 SystemPak combines multiprocessing of ATCA platform with ruggedized design capable of withstanding shock and vibration found in mobile transport applications. System features 3 ATCA processor blades, each with two 6-core Intel processors. Housed in 6U 6-slot ATCA chassis, SystemPak provides four 300 GB SAS drives, 10 GigE switching, 96 GB DDR memory per blade, and 1.2 TB storage.

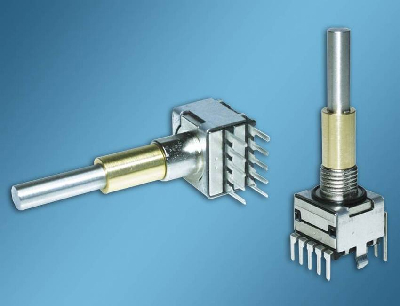

Concentric Encoders offer pushbutton option.

Elma Electronic Inc.    Fremont, CA 94538
Jun 06, 2011 Providing rotational life up to 1,000,000 revolutions, Concentric Encoders offer 0.5, 1.5, 2.0, or 2.5 Ncm switching torque that remains constant over encoder's life. Push-button option save space of employing another switch, has activation force of 6 N ±30%, and supports up to 200,000 actuations. Operating from -40 to +85°C, encoders feature metal housing with metal shafts, gold-plated contacts, and optional IP68 front panel sealing.

Rugged 1/2 ATR Enclosure features advanced airflow design.

Elma Electronic Inc.    Fremont, CA 94538
Feb 15, 2011 Aluminum conduction-convection cooled enclosure features airflow design that distributes air across external fins in sidewalls. Weighing 5 lb without power supply or payload, it features 6-slot 3U OpenVPX backplane and is also offered with 3U cPCI backplane or single-width MicroTCA backplane. Product is manufactured from milled plates as well as punched and formed sheet metal and includes removable front panel for I/O customization. It can include fixed-mount or plug-in 28 Vdc power supply.

Modular Enclosure offers recessed EMC mounting.

Elma Electronic Inc.    Fremont, CA 94538
Dec 13, 2010 Available in 51 sizes with 2U-7U profiles and widths of 42, 63, and 84 HP, Type 15 StyleBox offers recessed front-card mounting, which helps EMC by allowing solid or perforated panel to fully enclose plug-in boards. Extra space in front of box also protects electrical or optical connectors. With push-on extrusions, enclosure enables installation of PCBs, panels, and hardware. Modular unit allows Eurocard-based mounting for VME, VME64x, or CompactPCI architectures.

Rugged Coded Switch is designed to military specifications.

Elma Electronic Inc.    Fremont, CA 94538
Dec 06, 2010 Featuring re-enforced plastic body and IP60 or IP68 front panel sealing, Model M07A gray coded switch meets MIL-STD-810F for salt fog and humidity and MIL-STD-202G for shock and vibration. Product includes stainless-steel 6 mm tapped shaft and, utilizing gold plated contacts and nickel-plated bushing, performs minimum of 10,000 rotational cycles. Available in 2-16 positions, rugged switch offers up to 4 Ncm switching torque and operating temperature range of -40 to +85°C.
