Luminescence Sensor features 600 mm range.

EMX Industries, Inc.    Cleveland, OH 44128
Apr 23, 2013 Suitable for applications where UV pigment concentration is low, Model UVX-600 detects presence of luminescent materials such as grease, glue, labels, wood, thread, rubber, paint, and UV ink. Adjustable UV light projection and high resolution allow pin-head size detection. Equipped with numerical display that enables user to see intensity of each reading, sensor provides both analog and discrete output, auto-detect for PNP/NPN, auto-teach, and manual calibration.

Light Measurement Sensor evaluates RGB composition.

EMX Industries, Inc.    Cleveland, OH 44128
Jan 21, 2013 Able to measure relative color characteristics of various types of light sources and illuminated objects, LEX-1000 analyzes light for its constituent RGB (red, green, blue) values. Discrete signal indicating color match is issued if readings of all 3 colors fall within preprogrammed parameters. Along with 4 programmable color recognition channels, sensor offers RGB analog outputs, serial communications via RS232 or USB, and M30 housing. PC-based configuration software is also included.

Measurement Sensor automates light evaluation processes.

EMX Industries, Inc.    Cleveland, OH 44128
Aug 20, 2012 Able to verify presence and measure relative light intensity of various light sources (LEDs, monitors, lamps), LEX-100 has adjustable gain, 2-digit display that indicates signal strength, and replaceable fiber optic assembly. Construction withstands industrial environments, and analog output signal may be used to evaluate light sources based on light intensity. Features include PNP/NPN discrete output, remote lock, and 2 m fiber optic cable with threaded end fitting.

RGB Color Sensor featurs software for data logging.

EMX Industries, Inc.    Cleveland, OH 44128
May 01, 2008 ColorMax P features full application software that provides control over target illumination and ability to view color without reflection in addition to features that allow for data communication and statistical analysis based on Office Excel. No controls are located on sensor, which prevents unauthorized changes to settings. Output is configured to PNP or NPN upon power-up, and light source intensity is variable so that it can be adapted to background.

Contrast Sensor helps speed up production lines.

EMX Industries, Inc.    Cleveland, OH 44128
Dec 12, 2007 Able to detect up to 50 gray-scale levels, CNTX white LED contrast sensor features round light spot that allows it to be mounted in any orientation. Integral 2-digit display shows values of background and mark to indicate available switching margin, and output is automatically configured to PNP or NPN upon power-up. While light source intensity is variable to adapt to background, ability to lock controls ensures operator cannot change settings and cause errors.

Color Sensor offers 150 mm operating range.

EMX Industries, Inc.    Cleveland, OH 44128
Jul 10, 2007 Featuring 25 mm illuminated spot, ColorMax(TM)-1000 Super Range detects color variations, which are used by automated system to take corrective action. Using color-intensity data from sensor, controller can store and make matching decisions on virtually unlimited number of colors. Available in M30 threaded enclosure, unit employs low-noise technology for color variation of 0.5%. It provides sample speed of 5 kHz and includes software algorithms that ignore luster.

UV Sensor comes with calibration capability.

EMX Industries, Inc.    Cleveland, OH 44128
May 15, 2007 Series UVX-300-GC UV luminescence sensors provide calibration through proprietary software algorithms that offers one-time calibration of all sensors before distribution in system. Sensors are used on assembly lines to detect presence or absence of components such as O-ring seals, adhesives, labels, paint, and lubricants. They can also detect transparent objects. Units offer remote lock feature that prevents unauthorized changes to sensor settings.

Sensor offers feedback response frequency of 6 kHz.

EMX Industries, Inc.    Cleveland, OH 44128
May 17, 2006 Providing high sensitivity and long-range target detection, UVX-300G-REM remote UV luminescence sensor has remote sensing head that measures 0.7 x 0.8 x 1.2 in., and has volume of <0.7 cu in. Control unit provides 5 user-selectable gain settings, and relative reflection readings from 0-99. With operating distance of 350 mm, sensors are suited for gluing applications to measure amount of applied adhesive, check for presence of material/part, and alert operators to problems.

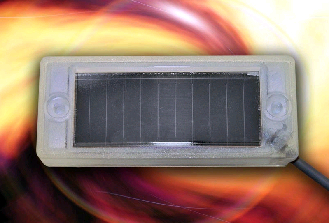

Photoelectric Sensor/Transmitter features solar panel.

EMX Industries, Inc.    Cleveland, OH 44128
Apr 26, 2006 Powered by 9 V alkaline battery with 150-day life, P-44 Thru-Beam Sensor/Transmitter uses SP-44 solar panel to extend battery life by up to 2 years. Two-conductor, 20 ft cable connects panel to P-44 power input terminals. With proper power applied, detection distance between emitter and receiver can be up to 50 ft. When photoelectric beam is blocked, receiver activates relay that can be used for garage door reversal, electrical mechanism shutdown, and other safety functions.

Color Sensor combines discrete and RGB analog outputs.

EMX Industries, Inc.    Cleveland, OH 44128
Mar 13, 2006 ColorMax(TM)-1000 RGB outputs raw RGB readings as analog signals representing intensity of each color component. Signals are sent to PLCs containing algorithms to evaluate data, enabling operators to see intensity of individual RGB readings. In addition, 4 discrete outputs signals indicate match/no match condition for up to 4 colors programmed into memory. Available in M30 threaded enclosure, units offer detection range of 30-100 mm and 5 kHz sample speed.
