Separation Conveyors provide high-intensity magnetic fields.

Bunting Magnetics Company    Newton, KS 67114 0468
May 20, 2013 With high-intensity magnetic fields, Separation Conveyors remove lightly magnetic tramp metal fines and separate work-hardened 300 series stainless steel from product stream, maximizing separation effectiveness for medical waste, as well as automotive and electronic scrap recycling. Conveyors are constructed with 300 series stainless steel frames and urethane endless belts. Optional vibratory feeder trays are available.

Metal Detection System meets food inspection industry needs.

Bunting Magnetics Company    Newton, KS 67114 0468
Feb 01, 2013 Along with color touchscreen, Metal Detection 07 Electronics system features dual entry user access for additional security and USB interface for data exchange of backup, updates, and quality control logs. Automatic product learning permits storing as many as 1,000 unique products. While multiMODE™ feature lets operators expand product range, autoTEST™ capability provides automatic self-testing at any selected time interval. Built-in networking also comes standard.

Metal Detector keeps liquid and pasty food free of contaminants.

Bunting Magnetics Company    Newton, KS 67114 0468
May 27, 2011 Designed for integration in vacuum fillers, Meatline 05 0 detects and separates any type of metal, encapsulated or free, from liquid and pasty food products. Reject mechanism can be taken apart without tools to facilitate cleaning, and all components are linked together with chain to prevent loss. Able to fit all commercial vacuum fillers, detector is pressure washer safe and has stable frame with lockable casters. Touchscreen display and menu structure facilitate operation.

Eddy Current Separator is built for efficiency, versatility.

Bunting Magnetics Company    Newton, KS 67114 0468
Apr 06, 2011 Eddy Current Separator (ECS) utilizes rotor that maximizes gauss intensity on belt surface and provides optimal separation of non-ferrous materials. Along with urethane belt and carbon fiber epoxy shell, low-profile and streamlined design features eccentric core intended to be rotated to provide effective product throw based on material and application. Rubber-lagged inverter-duty motorized drive pulley at in-feed provides driving force and variable speed (100-300 fpm) operation.

Flexible Die Coating repels most aggressive adhesives.

Bunting Magnetics Company    Newton, KS 67114 0468
Sep 30, 2010 Providing clear, non-stick finish that will not flake off, Repel(TM) Coating offers silicone-based layer of protection for many different applications. Product keeps die flexible and prevents adhesive or label material from embedding in cavities. Coating is also suitable for cold foil applications where it minimizes likelihood that thin foil material will stick in base of die.

Pneumatic Inline Magnet targets dilute-phase operations.

Bunting Magnetics Company    Newton, KS 67114 0468
Aug 27, 2010 Designed to maintain 15 psi rating for all types of dilute-phase pneumatic or gravity-flow conveying lines, Center-Flow Bullet Magnet removes ferrous fines as well as larger pieces of tramp iron from dry particulates. Unit features one-piece gasket that optimizes sealing along production line. Equipped with hinged cover, housing enables magnet to be removed and cleaned. Optional clear sight glass allows operator to see inside housing without opening cover.

Magnetic Printing Cylinder features spiral formation.

Bunting Magnetics Company    Newton, KS 67114 0468
Jun 24, 2010 Featuring curved magnetic rows, Bunting® Spiral Cylinder optimizes holding power and facilitates installation and removal of dies. Spiral design ensures that plate will always fall on magnetic field and allows cylinder to be used on both die cutting and printing applications. Built with Total Indicator Reading of ±1 micron, cylinder provides total run out accuracy below 1 micron.

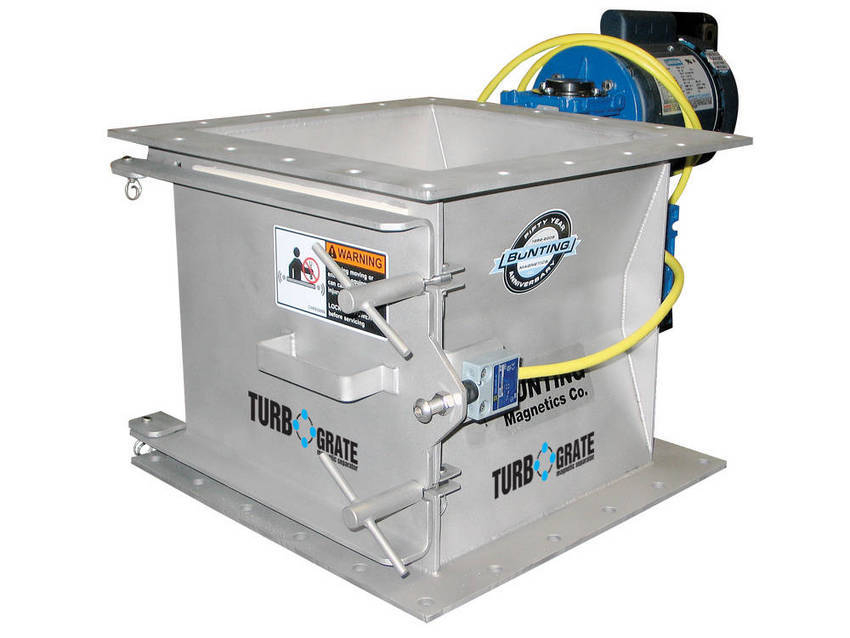

Magnetic Separator processes materials with poor flow.

Bunting Magnetics Company    Newton, KS 67114 0468
Apr 15, 2010 TurboGrate(TM) Magnetic Separator features motorized rotating grate magnet which processes material such as cocoa, flour, or starch. Product also removes ferrous metals from powders and granular products. Offered in standard grade and food grade or self-cleaning options, product can be specified with ceramic, Alnico, or Rare Earth magnets. Other options include removable tube assemblies to ease cleaning and ability to transition product flow into grate housing.

Magnetic Lifting Tool moves 1,100 lb of material.

Bunting Magnetics Company    Newton, KS 67114 0468
Feb 25, 2010 Designed to work in conjunction with fork truck and MagLift(TM) Hand-Controlled Lifters, MagFORKLift moves steel and iron around manufacturing and metal fabrication operatons. MagFORKLift and MagLift Permanent Magnetic Lifters safely handle many different shapes and sizes of loads, and hold securely, even through air gaps and surface coatings. Once magnet has been turned on by rotating handle on MagLifter, fail-safe mechanical locking mechanism ensures it cannot be turned off accidentally.

Magnetic Liquid Traps feature tapered step.

Bunting Magnetics Company    Newton, KS 67114 0468
Feb 10, 2010 Structured to hold ferrous debris against solid tapered step, Tapered-Step Magnetic Liquid Traps prevent wipe-off of tramp iron and fines, even in high-density applications with volumes up to 180 gpm. Units are equipped with Neodymium magnets capable of handling 300°F high-temperature load. Available in single- and dual-plate styles, traps come in 2 in. size rated to 250 psi as well as 3 and 4 in. sizes that handle up to 200 psi.
