WAN Router supports mixed TCP/IP and legacy protocols.

Belden    Richmond, IN 47375
Feb 05, 2013 With up to 10 Gigabit Ethernet ports, 16 T1/E1 ports, or 32 serial connections, GarrettCom Magnum 10RX Configurable Router and Security Appliance offers advanced layer 3 networking protocols, firewall, and secure VPN for industrial applications. Industrial Network Operating System supports wide range of routing protocols including RIP, OSPF, and BGP. Ensuring perimeter protection with address/port inspection and filtering, firewall secures VPN connections with strong 3DES and AES encryption.

DIN-Rail Mount Ethernet Switches offer 0 msec failover time.

Belden    Richmond, IN 47375
Oct 22, 2012 Supporting IEC-standard redundancy protocols (PRP, HSR) to serve where uninterrupted data communications is crucial, fanless Hirschmann RSP series integrates security functions, precision time synchronization (IEEE 1588v2), as well as management, diagnostic, and filter functions. Of 11 ports, 3 can be used for SFP transceivers that support 100 BASE-FX or 100/1000 BASE-FX Ethernet. Remaining ports can be configured for 100 BASE-TX or combination of 4 SFP transceivers and 4 TX ports.

PROFINET I/O Modules link sensors into real-time networks.

Belden    Richmond, IN 47375
Jul 19, 2012 Lumberg Automation LioN-M PROFINET I/O modules support both real-time (RT) and isochronous real-time (IRT) standards. In 0980 ESL 701 (16DI) module, channels are used as inputs, while universal version 0980 ESL 700 (16DIO Universal) uses channels as either inputs or outputs in any combination up to total of 16 points. Model 0980 ESL 700 has rated output current of up to 1.6 A, with max total current capacity of 9 A. Diagnostic concept enables fault location for each individual port.

Continuous Aluminum Armor protects diverse cable types.

Belden    Richmond, IN 47375
Jul 06, 2012 Metal clad-rated for crush resistance, continuous aluminum armor cladding is available for standard or special cable constructions for instrumentation, control, VFD, as well as industrial communication and networking products. Armor eliminates need for conduit while facilitating installation and re-routing. Applied as continuous strip of aluminum, cladding wraps around cable and is welded at seam for impenetrability. Corrugation permits bending without kinking.

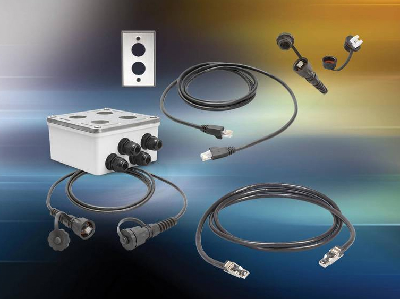

Cat 6 Cord Sets future-proof Ethernet installations.

Belden    Richmond, IN 47375
Feb 29, 2012 Made with Belden DataTuff Ethernet cables, Cat 6 Cord Sets provide industrial-grade connectivity for manufacturing in harsh environments. Units feature RJ45 plugs, are available in shielded and unshielded versions, and are suitable for IP20 or IP67 applications. Providing electrical stability, Bonded-Pair technology affixes individual conductors in each pair to each other along longitudinal axes, ensuring that no gaps between conductors can occur.

x x.

Belden    Richmond, IN 47375
Feb 01, 2012 x

Managed Switches provide up to 8 Gigabit ports.

Belden    Richmond, IN 47375
Jan 31, 2012 Targeted for data-intensive power utility applications such as Smart Grid, Magnum(TM) 10KG Managed Switches include sub-10 ns timing precision on all Gb ports, dual hot-swappable power supplies in 1U or 1.5U rack-mount switch, and up to 16 additional ports, which can be configured to meet needs of each installation. IEC 61850-compatible units are housed in substation-hardened enclosure and support IEEE 1588v2 timing features, including master clock, boundary clock, and transparent clock.

Industrial Ethernet Cat 5e Cables are 600 V AWM-rated.

Belden    Richmond, IN 47375
Nov 18, 2010 Shielded DataTuff® cables 7958A and 7957A are suited for use in listed motor control centers and switch gear in EMI environments. AWM rating allows usage of units on or within listed cabinet or machine. Features include 24 AWG Bonded-Pair solid bare copper conductors, polyolefin insulation, 24 AWG stranded tinned copper drain wire, and industrial-grade oil- and sunlight-resistant PVC jacket.

SC Multimode Connectors terminate 900 micron fiber.

Belden    Richmond, IN 47375
Sep 23, 2010 Enabling terminations in less than 5 sec without termination tools, FiberExpress Brilliance Field-Installable Connectors feature built-in activator that performs fiber splicing and crimping action. Units support high-speed optical fiber networks including 10G Ethernet as well as future 40G/100G networks. Able to withstand temperatures from -40 to +75°C, connectors can serve as backbone, horizontal, or fiber-to-the-desk components in any commercial building, government agency, or data center.

Network Management Software meets real-time visibility demands.

Belden    Richmond, IN 47375
Mar 22, 2010 Used for configuring and supervising all Hirschmann-managed products as well as SNMP-enabled third-party devices, Hirschmann(TM) Industrial HiVision v4.0 provides insight into status of end devices and network components while they are in operation. Automatic topology detection includes unmanaged switches, and MultiConfig(TM) features enables simultaneous configuration of multiple devices. Software, which can be integrated into SCADA applications, also offers embedded SNMP/OPC server.
