Linear Moving Magnet Actuators allow for precise positioning.

BEI Kimco Magnetics    Vista, CA 92081
Mar 08, 2013 When combined with smart drive electronics, Moving Magnet Voice Coil Actuators can be controlled for speed and desired output force. By keeping magnet mass low, system inertia is well controlled, resulting in precise speed and position control. Moving magnet actuators lend themselves to applications that require moderate speed and gentle stop points, such as remotely controlled circuit breakers, medical hand tools, and other delicate instrumentation.

Housed Voice Coil Actuator provides all-inclusive package.

BEI Kimco Magnetics    Vista, CA 92081
Jan 29, 2013 Measuring 2.8 in. dia x 5.3 in. long, LAS28-53-00A incorporates position feedback sensor with analog output for servo positioning or velocity control. Shielded cables and connectors allow plug-and-play installation, while shaft and bearings, contained in housing, negate need to design parts to capture coil and field assemblies and maintain concentric position. Able to mate with Quicksilver QCI-S3-IG controller, actuator offers 1.0 in. max stroke and 60 lb peak force.

Linear Actuator delivers peak force of 500 lb.

BEI Kimco Magnetics    Vista, CA 92081
Oct 11, 2012 Providing continuous force of 292 lb with 2 in. total stroke, Model LA100-93-000A features semi-housed construction with built-in shaft and bushings that orient coil assembly concentric to field assembly to facilitate mounting. Unit measures 10 in. in diameter and 9.3 in. long at mid stroke. Typical uses include environmental stress testing for lab equipment and military and aerospace equipment, as well as applications in industrial, medical, and testing environments.

Linear Voice Coil Actuator features moving magnet design.

BEI Kimco Magnetics    Vista, CA 92081
Sep 14, 2012 With resolution limited only by encoder used for feedback, LAH24-67-000A incorporates magnetic latches at each end of travel and is suited for critical applications where specific stop position is desired when coil is de-energized. Product provides 0.44 in. travel with 115 lb peak force and 37 lb continuous force from package with 2.4 in. dia footprint; force output is achieved via split coil concept. Other features incldue direct-drive, hysteresis-free operation.

BLDC Motor features Hall commutation circuit.

BEI Kimco Magnetics    Vista, CA 92081
Mar 05, 2012 Suited for industrial scanning applications, DXH15-10-000A Outer Member Rotating BLDC Motor supports inner rotational speed variations by maintaining shaft run-out of ±0.010 in., resulting in jitter of less than ±0.1%. Precision ball bearings and balanced rotor ensure optimal operation at speeds in excess of 11,000 rpm under continuous duty over life of system. Measuring 1.5 in. OD and 1.0 in. in axial length, motor incorporates Hall commutation circuit that produces exacting switch points.

BLDC Limited Angle Torque Motor features zero cogging.

BEI Kimco Magnetics    Vista, CA 92081
Jan 13, 2012 Featuring 100.0 mm diameter and 100.0 mm stack length, Model LAT40-48 delivers peak torque of 21.5 Nm and ±15° stroke. Use of rare earth magnets creates power density of 10.08 oz-in./W, while single phase winding provides control - 30° excursion is accomplished with no commutation. Since rotor has no preferred position, cogging is eliminated, enabling smooth performance for applications that require uninterrupted operation, such as stabilization platforms, scanning, and beam steering.

IP65 Brushless DC Motor is built for continuous duty.

BEI Kimco Magnetics    Vista, CA 92081
Oct 17, 2011 Built to operate under continuous load of 100 oz-in. at speeds of 6,000 rpm, IP65 washdown rated DIH27-63-BDNA offers peak torque capabilities of 450 oz-in. and incorporates corrosion-resistant, machined aluminum housing with black anodized coating. Cable strain relief, sealed bearing, and completely enclosed system guard against leaks while providing added protection for internal electrical connections. Rated for operation up to 155°C, motor has 2.7 in. OD and 6.0 in. axial length.

Housed Voice Coil Actuator produces 310 lb peak force.

BEI Kimco Magnetics    Vista, CA 92081
Aug 24, 2011 Producing 80 lb of force continuously with ±0.625 in. of stroke, Model LAH43-86-000A has self-aligning feature that allows it to adapt to new applications. Unit is suited for valve actuation, pick-and-place, mirror steering, and metering/dosing pumps in wide range of equipment found in medical, scientific, semiconductor/electronics, military, and aerospace industries.

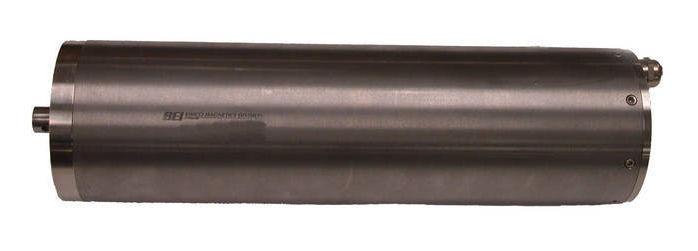

Brushless DC Motor withstands high pressures, temperatures.

BEI Kimco Magnetics    Vista, CA 92081
Aug 03, 2011 Meeting requirements of down hole oil exploration, 3.6 in. OD x 12.5 in. long Model DII36-125-000A survives ambient temperatures approaching 200°C and pressures of 30,000 psi. Hall effect sensors are provided for commutation, and samarium cobalt magnets ensure efficient operation. Also, housing allows motor to be filled with oil to compensate for elevated pressures. Product delivers 62 lb-in. peak torque and 44 lb-in. at speeds of 2,000 rpm on continuous basis.

Generator tolerates high shock and vibration.

BEI Kimco Magnetics    Vista, CA 92081
Apr 20, 2011 Measuring 1.8 in. diameter and 2.1 in. axial length, Model DIH18-21-BBNA provides continuous output of 40 Vdc at speeds of 11,000 rpm. Unit incorporates bearing suspension that absorbs vibration and shock, as well as one-piece housing that eliminates vulnerable attachment points. Motor is used as generator to supply power to remote brake health monitoring system and can withstand high shock and vibration levels in railcar environments.
