Wear Protection Systems reduce noise and damage.

Abresist Corp.    Urbana, IN 46990-0038
Feb 16, 2009 Used in areas prone to combined abrasion and impact, KERAFLEX systems feature ALRESIST® high alumina ceramics or KALMETALL®W hard overlay welding plates vulcanized to steel base. Standard panels come in sizes up to 20 in.² with welded studs or countersunk bolts. ALRESIST-based KERAFLEX-KRM offers ½ or 1 in. tile thickness, while KERAFLEX-WRM consists of KALMETALL-W hard overlay welded plates, rubber, and steel. KERAFLEX-KR features 1/8-½ in. thick ALRESIST tile and rubber backing only.

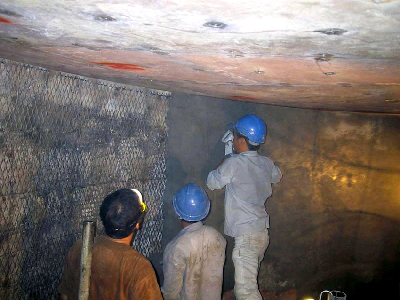

Compound protects system components and pipes.

Abresist Corp.    Urbana, IN 46990-0038
Jun 08, 2007 Made of hard aggregate material, cement binder, and micro and nano silica, KALCRET features mixing time of 5 min and can be applied overhead. Hard aggregate provides wear protection, while micro and nano silica fill pores between cement portions. Suitable for temperatures up to 2,192°F, KALCRET reaches high strength and wear resistance after 8 hr. It is available in troweled, cast, or sprayed-on versions for lining components with horizontal, vertical, inclined, curved, and flat surfaces.

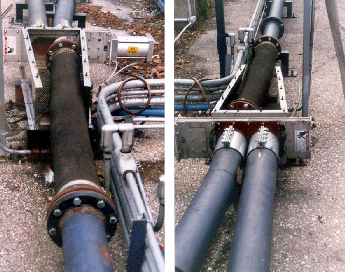

Pipe System eliminates vibration problems.

Abresist Corp.    Urbana, IN 46990-0038
Oct 21, 2005 KALFLEX Flexible Wear Protection Pipe System connects structural components that move due to vibration, thermal expansion, or intended movement. KALMETALL hard cast iron segments are used in components to withstand impact wear and sliding abrasion, while ALRESIST alumina oxide ceramic segments with Moh's hardness of 9, are used for components exposed to extreme abrasive wear. Elbows are available in sizes from .79-5.91 in. ID and up to 100.08 in. in length.

Tungsten Carbide Lining withstands impact and abrasion.

Abresist Corp.    Urbana, IN 46990-0038
Jan 14, 2005 KALMETALL®-TC utilizes chemically bonded elements of tungsten and carbon. Hard grains of tungsten carbide are combined through sintering process into tiles and shapes. Available in thin small tiles and larger thick pieces, KALMETALL-TC is suited for processing machinery components as well as pipes and elbows for pneumatic and gravity piping systems. It can be used for fan blades handling coal, ore, and other abrasive granular products such as sand, coke, and ferro-silica.

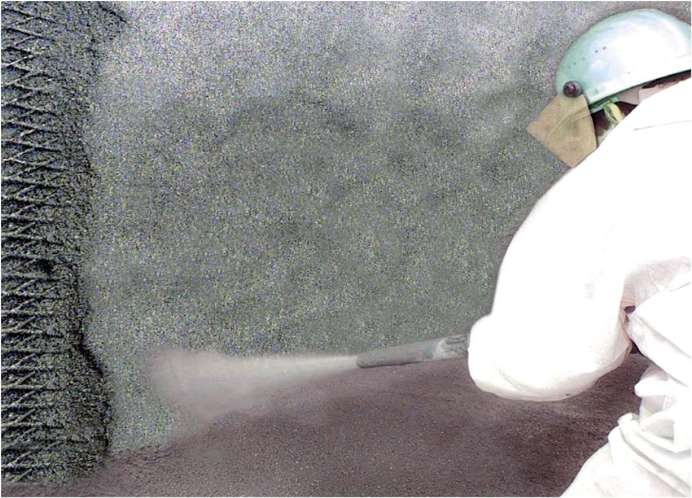

Spray System allows horizontal and vertical spraying.

Abresist Corp.    Urbana, IN 46990-0038
Oct 13, 2004 Spray System applies KALCRET-S wear compound to large surfaces to achieve jointless lining. Wear and abrasion resistant KALCRET-S can be used at temperatures up to 2192°F and provides thermal shock resistance and oxidation stability.

Steel Linings protect against abrasion and impact.

Abresist Corp.    Urbana, IN 46990-0038
Aug 19, 2003 KALMETALL® W hard overlay, welded steel linings can be self-supporting or installed into existing steel structures. They combine steel base composed of ASTM A-36 carbon steel or alloy plates with hard overlay welded chromium carbide protective layer. Steel base ranges in thickness from 3/16–1/4 in. with other sizes available. Standard alloy plates measure 48 x 96 in. and 60 x 120 in. Linings are suited for bunkers, mills, chutes, dust pipes, and cyclones.
