Latest New Product News from AICSYS, INC (Advanced Industrial Computer Systems)
Wallmount Chassis supports DVRs and surveillance systems.AICSYS, INC (Advanced Industrial Computer Systems) Taipei Hsien,
Jul 21, 2010 Suited for horizontal and vertical mounting, Hawkeye WMC-402M supports standard micro-ATX motherboard, 1 external 5.25 in. drive bay for CD-ROM/DVD-ROM, and 1 internal 3.5 in. drive bay for HDD. System is powered by micro-ATX 300 W power supply and utilizes 8 cm ball bearing fan to optimize cooling. Featuring heavy-duty steel construction, chassis is designed for PC-based Digital Video Recording systems for security, monitoring, access control, and other safety applications.
2U Rackmount Chassis has 17 in. depth.AICSYS, INC (Advanced Industrial Computer Systems) Taipei Hsien,
Jun 02, 2010 Designed to support PICMG backplane and full-size SBC, RCK-202B can accommodate up to two 5.25 or three 3.5 in. internal drives and meets EIA RS-310C 19 in. rackmount standard. I/O expansion can be configured via optional 2 or 4-PCI slots on PICMG backplane, while two 8 cm replaceable high-speed ball bearing fans provide ventilation for heat sensitive applications. Made of heavy duty steel with Ni plating, chassis has lockable front door and PS/2 or hot swap redundant power supply.
Industrial Panel PC offers IP65 protection on front bezel.AICSYS, INC (Advanced Industrial Computer Systems) Taipei Hsien,
Apr 22, 2010 Featuring 12 and 15 in. LCD panel with optional resistive and capacitive touch screen function, LPC series supports Intel Pentium M or Atom processors. It provides expansions such as wireless LAN, multiple serial ports, or video capture add-on card. Options include fanless cooling, external VGA connector, integrated high definition audio, gigabit LAN, hardware monitor, and watchdog timer function.

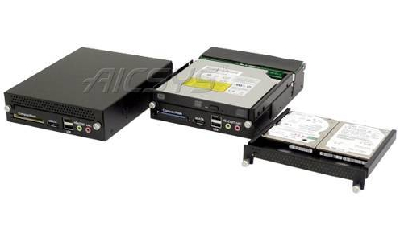

Computer Hard Drive integrates 7 devices into 5.25 in. unit.AICSYS, INC (Advanced Industrial Computer Systems) Taipei Hsien,
Oct 30, 2009 Featuring industrial-grade aluminum construction, Smart-Drive II integrates 3.5 in. HDD bay, DVD-ROM in bracket interchangeable with HDD bracket that supports two 2.5 in. SATA HDDs, bootable CF socket, 2 USB 2.0 ports, 1 eSATA port, MIC, and Audio Line-out jacks on front panel. Drive is suitable for vehicle PCs, fanless mobile PVRs, DIN-size PCs, portable workstations, and small RAID systems.

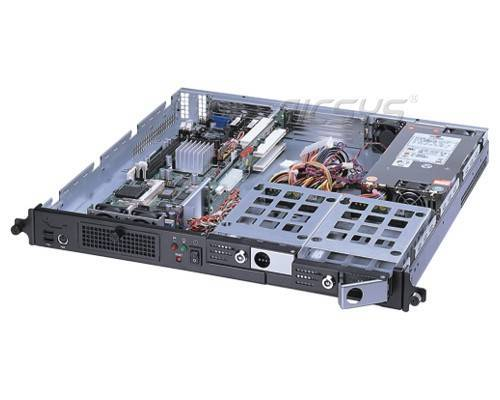

Rackmount Chassis houses PICMG 1.0/1.3 backplane and SBC.AICSYS, INC (Advanced Industrial Computer Systems) Taipei Hsien,
Sep 08, 2009 Featuring depth of 16.6 in., 1U RCK-103BR fits in sub-racks and short rack cabinets. Drive bays include 1 slim CD-ROM, two 3.5 in. SATA HDD, and one 2.5 in. space for SSD and HDD. I/O expansion can be configured through 3 PCI slots found on optional PICMG backplane. Chassis also features three 4 cm ball bearing fans to ensure optimal heat dissipation, USB and PS/2 ports on front panel, RS-232 on front and rear panel, and 250/300 W ATX power supply.

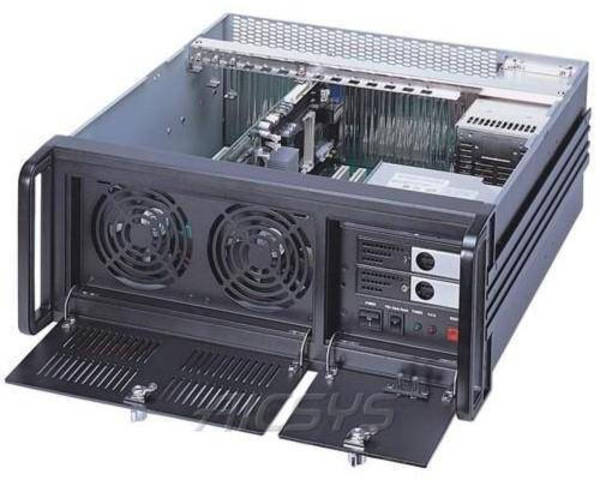

Rackmount Chassis supports 14-slot backplane/ATX motherboard.AICSYS, INC (Advanced Industrial Computer Systems) Taipei Hsien,
Jun 03, 2009 Built with two 12 cm fans with replaceable air filter for optimum cooling, RCK-403 4U Rackmount Chassis supports up to two 3.5 in. HDD drives with mobile rack and slim optical drive. Retaining bar is included to hold expansion cards in place in high vibration environments. Featuring changeable rear I/O shield, and front panel with lockable door to protect drives, unit supports both AT and ATX PS/2 size power supplies and mini-redundant power supply.
LCD Monitors fit onto standard 19 in. rack.AICSYS, INC (Advanced Industrial Computer Systems) Taipei Hsien,
Apr 27, 2009 Featuring low power consumption, AURORA-P series LCD monitors support 17 in. active matrix TFT LCD display in heavy duty steel housing. Monitors allow viewing angle of R-L and U-D up to 70° and have OSD for image adjustment, 4-CCFL backlight lamps for high display quality, and optional touch-screen function. Display quality is supported by maximum contrast ratio of 800:1 and resolution up to (SXGA) 1,280 x 1,024 pixels for 17 in. version.

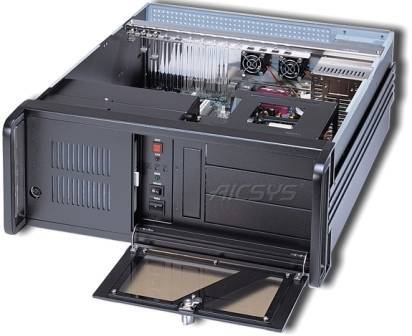

4U Rackmount Chassis handles variety of components.AICSYS, INC (Advanced Industrial Computer Systems) Taipei Hsien,
Feb 13, 2009 Configurable RCK-405 4U Rackmount Chassis supports either ATX Motherboard or 14-slot PICMG backplane by simply changing rear panel. It also supports up to 5 shock resistant drives (three 5.25 in., one FDD, and one HDD), as well as AT and ATX PS/2 size power supplies. Retaining bar is included to hold expansion cards in place for applications that encounter high level of vibration.
Rackmount Chassis (4U) supports 10 ATX/EATX motherboards.AICSYS, INC (Advanced Industrial Computer Systems) Taipei Hsien,
Jan 29, 2009 Designed for storage server applications, RCK-410MA features six 5.25 in. external, two 3.5 in. external, and two 3.5 in. internal drive bays. Support for PS/2 ATX power supply ensures minimum downtime, and appropriate temperature is maintained via two 80 mm-high fans and fan monitor circuit board. Suitable for RAID applications, chassis is constructed of heavy-duty steel, offers 2 USB 2.0 ports, and features dual lockable front doors as well as replaceable air filters.
Wallmount Chassis has 7 slots for ATX motherboards.AICSYS, INC (Advanced Industrial Computer Systems) Taipei Hsien,
Dec 10, 2008 With heavy-duty steel construction, Model WMC-704M 7-slot full-length shoe-box wallmount or benchtop chassis supports ATX motherboards for industrial automation applications outside server room. It is equipped with two 5.25 in., one external 3.5 in. and one internal 3.5 in. drive bays. Hold down bar and clamps are provided to ensure stable operations against heavy vibration. Features include 12 cm ball bearing fan and replaceable air filter.
Click below for more Product News from AICSYS, INC (Advanced Industrial Computer Systems)
Other Company News From AICSYS, INC (Advanced Industrial Computer Systems)
Nov 06, 2008
AICSYS Inc. Releases the Mini-ITX Chassis with up to 8 HDD Drive Bays
Oct 15, 2007
AICSYS® Announces the Opening of the UK Branch Office AICSYS Europe
