CCD-Based Spectrometer supports zinc alloy applications.

Thermo Electron Corporation    Ecublens, CH-1024
Jun 19, 2006 ARL QUANTRIS(TM) optical emission spectrometer can be configured with up to 3 spectrographs to cover wavelengths from 130-780 nm, enabling analysis of all elements of interest in zinc alloys within 35 sec. Each module is flat field spectrograph with single CCD. Product comes with Current Controlled Source, vacuum spectrometer, automatic optical alignment, and spectrum profiling. Electronic spectrograph lets users perform qualitative and semi-quantitative analysis using spectra.

Spectrometer supports magnesium alloy applications.

Thermo Electron Corporation    Ecublens, CH-1024
Feb 06, 2006 CCD-based ARL QUANTRIS(TM) spectrometer is configured with 3 spectrographs to cover wavelengths from 130-780 nm, enabling analysis of all elements in magnesium alloys. Magnesium passivation system eliminates risk of explosion of magnesium dust residues in sample stand and argon filter, and Current Controlled Source feature provides definition of best discharge parameters for every type of metal and alloy. Drift corrections are required only once weekly.

XRF Instrument suits environmental X-ray applications.

Thermo Electron Corporation    Ecublens, CH-1024

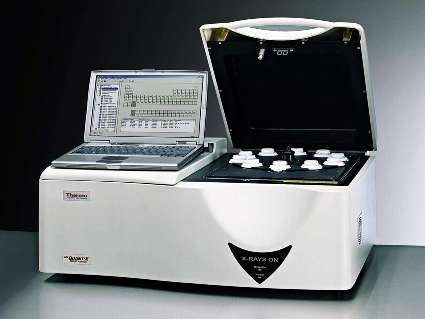

Mar 03, 2005 Energy Dispersive ARL QUANT'X utilizes Peltier-cooled Si(Li) detector and Digital Pulse Processing for multi-element analysis of environmental and industrial applications, such as air particulates, soil contamination, and toxic elements in plastic. It provides non-destructive analysis with sensitivity at single digit ppm levels for most elements. Ethernet technology allows communication with computer, desktop, or laptop, and enables support for Windows XP and beyond.

Automation System enables twin spectrometer analysis.

Thermo Electron Corporation    Ecublens, CH-1024
Dec 16, 2004 Designed to run simultaneously with x-ray fluorescence and optical emission spectrometers, ARL SMS-3000 enables twin analysis by integrating both analytical techniques in one system. System also enables double OES configuration. Suited for sample analysis in metals and mining industries, it features CRS F3 robot, which manipulates samples up to 1.2 kg at speeds to 4 m/sec. Single screen provides access to sample tracking and user functions.

Optical Emission Spectrometer analyzes elements of steel.

Thermo Electron Corporation    Ecublens, CH-1024
Dec 14, 2004 Model ARL 4460 measures trace gaseous elements in steel to facilitate quality control processes. It detects Carbon down to 0.4 ppm, Nitrogen to 1.5 ppm, Oxygen to 8 ppm, Phosphorus down to 0.3 ppm, and Sulfur down to 0.7 ppm. Results are typically available within 55 sec after just 2 runs.
