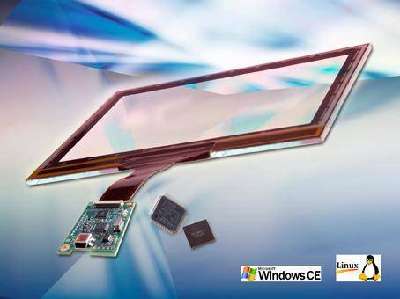

Touch Sensor Software is offered in open source version.

Zytronic PLC    Tyne & Wear, NE21 5SG
Apr 17, 2012 Designed for Projected Capacitive Technology(TM) touch sensors and ZXY100 touch controllers, Open-Source Driver Software supports Linux® and MS Windows® CE. Controllers are designed for plug-and-play use with in-built Windows 7 basic Human Interface Device driver, which allows touchscreen calibration. Add-on pack will enable users of Windows® 7/8 to tune controller firmware directly so that touch sensitivity, filters, and overlay thickness can be changed to suit individual application.

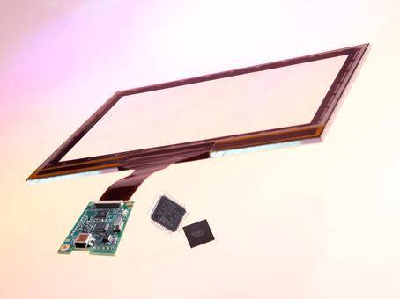

Touch Controller comes in discrete chipset form.

Zytronic PLC    Tyne & Wear, NE21 5SG
Feb 09, 2012 Available in 32, 64, and 128 channel versions, Model ZXY100 covers full range of screen sizes from 5-82 in. Device consists of 32-bit microprocessor with ARM® core, preloaded with Projected Capacitive Technology firmware, and ASIC-based analog front end. With firmware's boot loader function, users can upload software updates as they become available. Chipset offers native Windows 7 support, including dual touch, to cover core gesture recognition functions.

Capacitive Touch Sensors detect through variety of materials.

Zytronic PLC    Tyne & Wear, NE21 5SG
May 19, 2011 Based on Projected Capacitive Technology, ZYBRID® Sensors employ deposited tracks of transparent Indium Tin Oxide as sensing medium. Units are available in 7, 8, and 8.4 in. display formats and can accurately detect touch through thick glass or gloved hands. Supplied as flexible, polyester units for assembly/lamination by customer or pre-laminated to glass at company's clean room facility, sensors are suited for medical tablets, home appliances, and automotive HMIs.

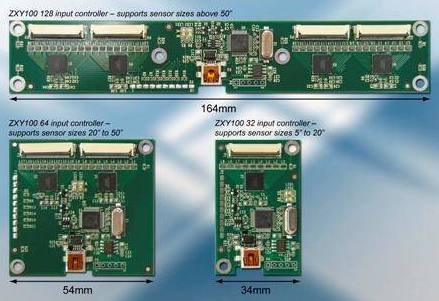

Touch Sensor Controllers feature 32-bit ARM® microprocessor.

Zytronic PLC    Tyne & Wear, NE21 5SG
Jun 03, 2010 Compatible with PCT(TM) Projected Capacitive Technology-based touch sensors, ZXY100 Controllers are based on 32-bit ARM® microprocessor, which accelerates touch detection and optimizes responsiveness in both direct touch and through-glass sensing. Units incorporate ASIC, which consolidates analog components into single 7 x 7 mm chip. Models include 32-channel version for 5-20 in. sensors, 64-channel version for 20-50 in. sensors, and 128-channel unit for 50+ in. sensors.

PCT-Based Product promotes interactive display sensitivity.

Zytronic PLC    Tyne & Wear, NE21 5SG
Dec 28, 2006 ZYPROFILM(TM) allows businesses to install large-screen, interactive displays that can be operated through glass windows/surfaces up to 20 mm thick. Projected capacitive technology (PCT(TM))-based product offers lifetime drift-free performance and optimal light transmission characteristics. Construction of touchscreen unit consists of hard coated film immediately behind glass surface, precisely spaced grid of microfine-gauge sensing wires, and rear projection film.

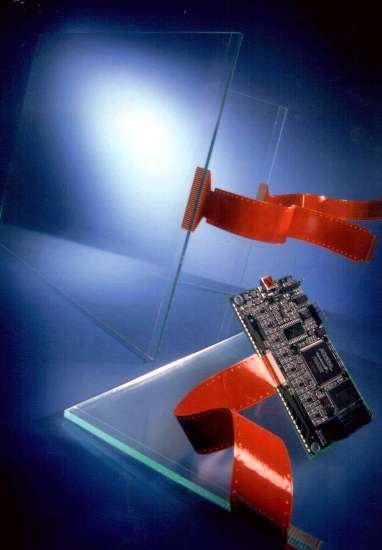

Touch Sensors feature MCU-based controller.

Zytronic PLC    Tyne & Wear, NE21 5SG
Jul 11, 2006 Projected capacitive technology (PCT(TM))-based ZYTOUCH®, ZYBRID(TM), and ZYPOS® touch sensors support choice of on-glass or flex-mounted controller. Implemented in STMicroelectronics MCU, controller provides features such as on-chip or 2-wire serial communications, flash program memory, and 16 programmable logic cells. Microcontroller is built around 8051-class CPU core and has on-chip communication ports that permit remote firmware updates.

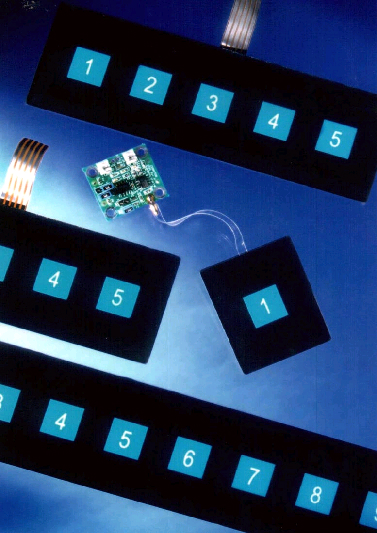

Membrane Keypads utilize touchscreen technology.

Zytronic PLC    Tyne & Wear, NE21 5SG
Nov 17, 2005 Using projected capacitive touchscreen technology, ZYSWITCH(TM) Keypads detect key presses from behind protective front panel up to 15 mm thick. They feature zero wear-out mechanism and resistance to scratches and physical or chemical attack. Keypads require no software driver, which eases keypad integration and facilitates direct upgrade or replacement of membrane-type units. They can be customized to any shape or size, and address applications up to 16 buttons.

Touchscreen Sensors target retail and gaming environments.

Zytronic PLC    Tyne & Wear, NE21 5SG
Jun 21, 2005 ZYPOS® projected capacitive technology touch sensors are based on principle of embedding micro-fine sensing wires within multi-layer laminated screen behind protective front surface, ensuring that sensing medium is protected from accidental and malicious damage. With unlimited touch life, PCT is drift-free and can be operated with gloved or ungloved hand with response time of less than 20 ms. It requires no recalibration and is unaffected by surface contaminants.

Display Filter eliminates unwanted reflections.

Zytronic PLC    Tyne & Wear, NE21 5SG
Nov 08, 2004 Optical Control Filter controls direction of emitted light from LCD displays, reducing reflections, and facilitating readability in direct sunlight. Polycarbonate film uses lamination bonding and vacuum deposition techniques to integrate privacy louver matrices with anti-reflection and anti-glare coating. Filter can be bonded directly to LCD displays measuring up to 18 in., making it suited for in-car, naval, and aerospace display applications.
